Dold 0043145 BO5988.61/324 DC24V+AC110V emergency stop module

Your rating:
Average rating
product review for Dold 0043145 BO5988.61/324 DC24V+AC110V emergency stop module
( 4.2 / 5 ) 5 ratings

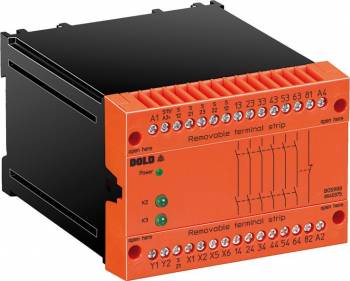

Dold 0043145
This image may differ from the desired article.
Dold 0043145Dold 0043145
628,79 EUR
( 748,26 EUR incl. VAT )
≈ £526.30  |  ≈ $691.04
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0043145 BO5988.61/324 DC24V+AC110V emergency stop module
Datasheet:file_download Download
Lieske Part No.:1312981
Mfg Part No: 0043145
UPC/EAN: 4030641431457
Weight:0.89 kg
Type:BO5988.61/324 DC24V+AC110V
Graduated prices net
From piecesPrice per pieces
3605,21 EUR
6581,63 EUR
9558,05 EUR
12534,47 EUR

Product information for Dold 0043145:

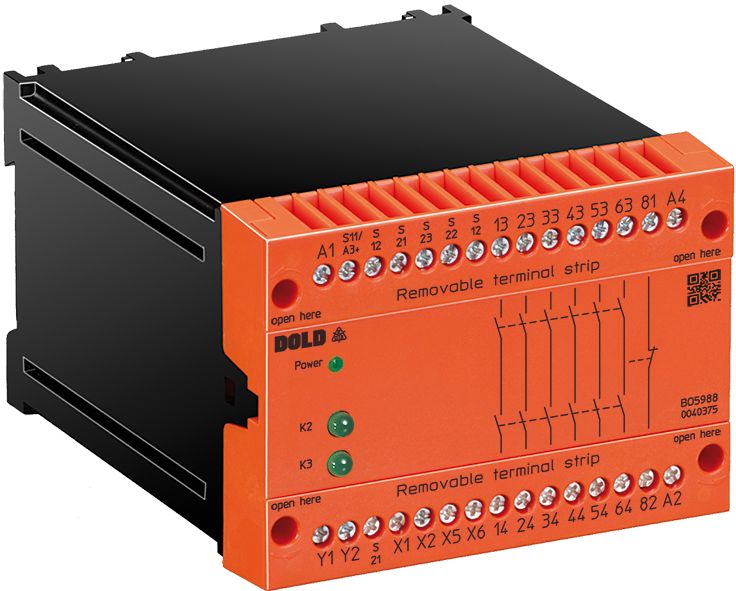

The Dold safety relay BO5988.61/324 DC24V+AC110V is an industrial emergency stop module for the safe disconnection of machines and systems. It provides protection functions for personnel and machinery, particularly in applications involving emergency stop circuits and monitoring of sliding safety guards. The device is designed as a dual-voltage version, operable with either a direct voltage of 24 V DC or an alternating voltage of 110 V AC. The response delay during automatic restart is 0.5 seconds, enabling controlled reactivation. The width of 100 mm allows for compact mounting in standard control panels.

Applications
This safety relay is used in industrial automation where safe disconnection is required in hazardous situations. Typical applications include integration into emergency stop circuits, monitoring of safety guards or other mechanical protective devices. Functions such as cross-circuit detection and feedback loop X1-X2 for monitoring external contactors support the reliability of safety functions. The device is applied in environments where compliance with safety standards such as EN ISO 13849-1 and IEC/EN 62061 is mandatory.

Functions and Equipment in Detail
The device features contact configuration with 6 NO contacts and 1 NC contact, which serves as an alarm contact. The output contacts are rated for a maximum thermal load of 10 A. Connection is made via removable screw terminals, enabling flexible and secure connections. The terminals are designed for wire cross-sections up to 2.5 mm², and 1.5 mm² wires with ferrules and plastic collars according to DIN 46 228-1/-2/-3/-4 can also be used. Integrated cross-circuit detection at the single-button input detects faults in the control circuit and prevents incorrect operating states.

Technology Explained Simply
The safety relay BO5988 operates according to the principles of redundant safety monitoring. It can be operated in 1- or 2-channel wiring, with the 2-channel version offering higher fault tolerance. The integrated LED indicators for channel 1, channel 2, and power supply status enable visual monitoring of the operating state. The built-in short-circuit and overvoltage protection safeguards the device and connected components from damage due to electrical disturbances. The 0.5-second response delay during automatic restart ensures that the machine does not restart immediately after an emergency stop event, but only after a brief delay, providing additional safety.

Compatibility and Accessories
The device is designed for use in industrial safety systems and can be combined with other components from the Dold safety product family. Certifications TÜV, UKCA, and UL-Recognized confirm compliance with European and international safety standards. Conformity includes Performance Level (PL) e and Category 4 according to EN ISO 13849-1, as well as Safety Integrity Level (SIL CL) 3 and SIL 3 according to IEC/EN 62061. These certifications guarantee the reliability and safety of the device in critical applications.

Mounting and Installation
Mounting is carried out in standard control panels with a width of 100 mm. The removable screw terminals facilitate installation and maintenance. The connection terminals are clearly labeled to ensure error-free wiring. The integrated LED indicators support commissioning and fault diagnosis. The use of wires according to DIN 46 228-1/-2/-3/-4 is recommended to ensure a secure and durable connection.

Advantages in Operation
The safety relay BO5988 offers high reliability through redundant safety functions and integrated fault detection. The visual indication of operating states simplifies maintenance and diagnosis. The dual-voltage version enables flexible integration into existing systems with different voltage supplies. The integrated cross-circuit detection and feedback loop X1-X2 increase safety and prevent unintended operating states. Compliance with international standards such as EN ISO 13849-1 and IEC/EN 62061 makes the device suitable for use in critical applications.

Technical data
1- / 2-channel1, 2
ApprovalsUL-Recognized
Cat. / PL acc. to EN ISO 13849-14/e
ConnectionPluggable screw terminals
Output contacts max.1 NC contact, 6 NO contacts
SIL CL acc. to IEC/EN 620613
SIL acc. to IEC/EN 620613
Thermal current Ith max.10 A
Width100 mm
TypeBO 5988
Cross fault detectionYes
Variant
Contact equipping6 NO contacts, 1 NC contact as signal contact
Nominal voltageDC 24 V + AC 110 V
Time rangewithout
Approvals and MarkingsTÜV, UKCA
VariantDual voltage model 0.5 s operate delay with automatic restart


Product data sheet
Datasheet for Dold 0043145, EAN: 4030641431457

Questions & answers

What is the delivery time of Dold 0043145 BO5988.61/324 DC24V+AC110V emergency stop module ?

The article Dold 0043145 BO5988.61/324 DC24V+AC110V emergency stop module is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0043145 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0043145 BO5988.61/324 DC24V+AC110V emergency stop module always at the best possible price. We can give you a discount of 2% on Dold 0043145 BO5988.61/324 DC24V+AC110V emergency stop module if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 3 pieces of Dold 0043145 BO5988.61/324 DC24V+AC110V emergency stop module we can offer you a price of 605,21 EUR per piece. The more you buy, the cheaper the article will be.
