Dold 0043070 IL9071.12 3/N AC400/230V 0.85UN4% undervoltage relay

Your rating:
Average rating
product review for Dold 0043070 IL9071.12 3/N AC400/230V 0.85UN4% undervoltage relay
( 4.5 / 5 ) 8 ratings

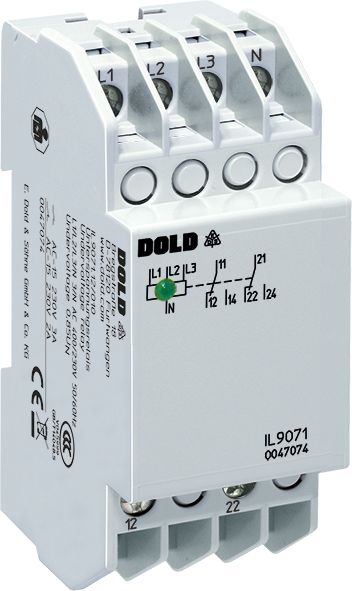

Dold 0043070
This image may differ from the desired article.
Dold 0043070Dold 0043070
253,15 EUR
( 301,25 EUR incl. VAT )
≈ £211.89  |  ≈ $278.21
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0043070 IL9071.12 3/N AC400/230V 0.85UN4% undervoltage relay
Datasheet:file_download Download
Lieske Part No.:972205
Mfg Part No: 0043070
UPC/EAN: 4030641430702
Weight:0.134 kg
Type:IL9071.12 3/N AC400/230V 0,85UN4%
Graduated prices net
From piecesPrice per pieces
4243,66 EUR
8234,16 EUR
12224,67 EUR
16215,18 EUR

Product information for Dold 0043070:

The Dold undervoltage relay IL9071.12 is an electrical monitoring device for alternating and rotating current networks, used in industrial and installation applications. It monitors the network voltage for undervoltage, phase failure, and detects a missing neutral conductor in 3/N networks. The device is designed for use in 3-phase networks with neutral conductor (3/N AC 400/230 V) and can also be connected single-phase, where terminals L1, L2, and L3 must be bridged. The rated voltage is 3/N AC 400/230 V, with a maximum rated voltage up to 3/N AC 500/290 V. The relay operates on the rest current principle, whereby the output relay is not activated in the event of a fault, ensuring a safe disconnection. The pickup delay is activated, preventing short-term voltage fluctuations from triggering the relay. The pickup value is fixed at 0.85 of the rated voltage (Un), with a hysteresis of approximately 4 %, enabling stable switching behavior during voltage fluctuations.

Applications

The IL9071.12 is intended for monitoring electrical networks in industrial and installation facilities. It enables early detection of impending failures, particularly interruptions of the neutral conductor, which can lead to unbalanced voltage conditions. Such conditions can damage single-phase connected loads due to overvoltage or render them inoperative due to undervoltage. The device can be used for shutting down the installation or switching on safety lighting in accordance with DIN VDE 0108. It is also suitable for medically used rooms, if the appropriate version according to DIN VDE 0100-710 is selected.

Functions and Equipment in Detail

The relay features 2 changeover contacts as output contacts, sufficient to implement safety functions such as disconnection or alarm signaling. The contact materials consist of AgNi, ensuring a high switching life and good contact quality. The switching voltage is AC 250 V, and the device can carry a thermal current of 4 A. The electrical life is approximately 500,000 switching operations at 1 A and AC 230 V. The LED indicator lights green when the network is fault-free and contacts 11-14 and 21-24 are closed. The indicator serves as a visual confirmation of the operating status.

Technology Explained Simply

The device monitors voltage in real time and reacts when the voltage drops below the fixed pickup value of 0.85 Un. The 4 % hysteresis ensures that the relay does not trigger with minor fluctuations, but only with sustained undervoltage. Measurement is performed via inputs L1, L2, L3, and N, with a voltage range of 0.7 to 1.1 Un. The frequency range is 45 to 65 Hz, enabling use in networks with 50 Hz and 60 Hz. The rated frequency is 50/60 Hz.

Compatibility and Accessories

The IL9071.12 is manufactured in the IL 9071 form factor, featuring a width of 35 mm and a depth of 61 mm. The connection terminals are located at the bottom, enabling installation in installation and industrial distributors according to DIN 43880. It is compatible with 3-phase networks with neutral conductor and can also be operated single-phase. The devices comply with IEC/EN 60255-1 and feature a safe separation between the measuring circuit and contacts in accordance with IEC/EN 61140 and IEC/EN 60947-1. CCC certification is available.

Mounting and Installation

Mounting is performed in standard installation distributors with a width of 35 mm. The connection terminals are located at the bottom, enabling easy wiring. In single-phase applications, terminals L1, L2, and L3 must be bridged. The devices are suitable for mounting in enclosures with mounting plate and cable duct. The depth of 61 mm requires sufficient space in the distributor.

Operational Advantages

Early detection of network disturbances enables preventive maintenance and prevents damage to connected devices. Disconnection in case of undervoltage or neutral conductor break protects the installation and increases operational safety. The LED indicator provides visual monitoring of the operating status. Operation without auxiliary voltage reduces installation complexity. Compliance with IEC/EN 60255-1 and safe separation between measuring circuit and contacts ensure reliable performance in industrial applications. The device is suitable for use in medically used rooms, if the appropriate version is selected.

Technical data
1- / 3-phase1, 3
Auxiliary voltageWithout
Enclosure designDistribution board
Nominal voltage max.3/N AC 500 / 290 V
Output contacts2 C/O contacts
Width35 mm
TypeIL 9071
Operate delayYes
Variant
Contact equipping2 changeover contacts
Nominal voltage3/N AC 400 / 230 V
Response value0,85 Un 4%
Time delaywithout
Approvals and MarkingsCCC
VariantWith neutral connection. Without asymmetry detection. Without neutral conductor monitoring. Without time delay


Product data sheet
Datasheet for Dold 0043070, EAN: 4030641430702

Questions & answers

What is the delivery time of Dold 0043070 IL9071.12 3/N AC400/230V 0.85UN4% undervoltage relay ?

The article Dold 0043070 IL9071.12 3/N AC400/230V 0.85UN4% undervoltage relay is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0043070 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0043070 IL9071.12 3/N AC400/230V 0.85UN4% undervoltage relay always at the best possible price. We can give you a discount of 2% on Dold 0043070 IL9071.12 3/N AC400/230V 0.85UN4% undervoltage relay if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of Dold 0043070 IL9071.12 3/N AC400/230V 0.85UN4% undervoltage relay we can offer you a price of 243,66 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
