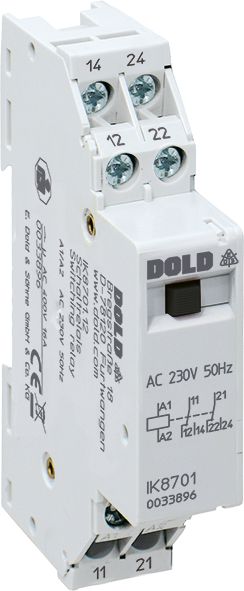

Dold 0041812 IK8701.12/001 DC24V switching relay contacts 5 µm Au
|
73,04 EUR |
|||||||||||
|
( 86,92 EUR incl. VAT ) ≈ £61.13 | ≈ $80.27 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 1312826 | ||||||||||
| Mfg Part No: | 0041812 | ||||||||||
| UPC/EAN: | 4030641418120 | ||||||||||
| Weight: | 0.123 kg | ||||||||||
| Type: | IK8701.12/001 DC24V | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Dold 0041812:
Applications
The relay is designed for use with small loads, particularly for loads up to a maximum of 6 VA/W at voltages from 0.3 to 60 V and currents from 1 to 300 mA. It is suitable for applications where small electrical loads such as signal lamps, neon lamps, or small relays are operated. The contacts are coated with a 5 µm gold layer, ensuring reliable switching function at low currents. However, the gold layer is burned off at higher switching currents, rendering the device unsuitable for small loads after switching such a load.
Functions and equipment in detail
The relay features a manual actuation button on the front, which also serves as a switching position indicator. When the relay is energized, the button is pushed in; when de-energized, it is flush with the front edge of the housing. The contacts are actuated via a toggle armature with a plunger. After the excitation voltage drops, the armature is returned to its resting position by a spring. The protective circuit at the coil input protects the device against voltage spikes and enables actuation with 2-wire initiators. The maximum permissible residual current is 3 mA.
Technology explained simply
The relay coil is energized with DC 24 V, causing the armature to move and the contacts to close or open. The contacts are configured as changeover contacts, providing both a normally open and a normally closed contact per contact group. The maximum thermal current rating (Ith) is 16 A, describing the contact load capacity under continuous operation. The protective circuit at the coil input suppresses switching surges and protects the device against reverse polarity. The connection polarity is via A1+ / A2, with A2+ serving as the negative pole.
Compatibility and accessories
The relay is designed for use in standard installation distributors with a width of 17.5 mm. It is compatible with 2-wire initiators and can be used in systems requiring a safe drop voltage of AC 120 V. The contact configuration is limited to two changeover contacts, with the /001 variant specifically designed for small loads. The contacts are gold-plated, making them suitable for sensitive switching operations.
Mounting and installation
The relay is installed into an installation distributor with a width of 17.5 mm. Mounting is done by snapping into the appropriate rail. The connection terminals are designed for wiring, with the polarity A1+ / A2 to be observed. The manual actuation button allows for manual testing of the switching function without electrical supply.
Advantages in operation
The relay offers high reliability when switching small loads, supports actuation with 2-wire initiators, and features an integrated protective circuit. The switching position indicator enables quick visual inspection of the operating status. The width of 17.5 mm makes it compatible with common installation distributor modules. The gold-plated contacts ensure long service life at low switching currents.
| Technical data | |
| Enclosure design | Distribution board |
| Output contacts max. | 2 C/O contacts |
| Thermal current Ith max. | 16 A |
| Width | 17,5 mm |
| Type | IK 8701 |
| Initiator triggering | |
| Suppressor circuit on the coil input | |
| Variant | |
| Contact equipping | 2 changeover contacts |
| Nominal voltage | DC 24 V |
| Variant | For switching low loads |
