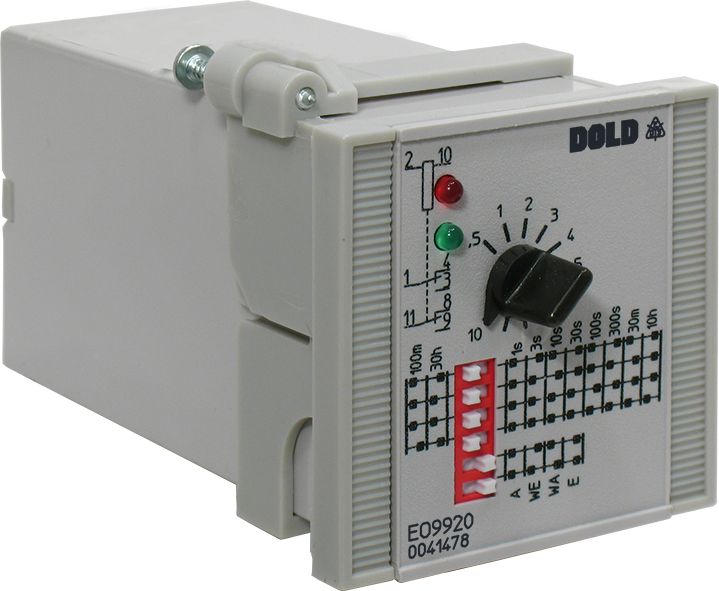

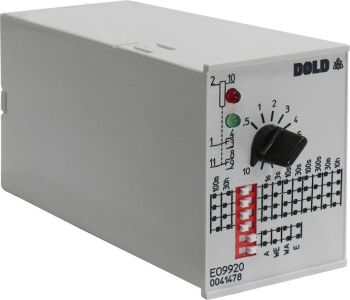

Dold 0041478 EO9920.82/200 AC/DC24-240V 05S-30H multifunction relay
|
306,37 EUR |
|||||||||||
|
( 364,58 EUR incl. VAT ) ≈ £256.43 | ≈ $336.70 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 778700 | ||||||||||
| Mfg Part No: | 0041478 | ||||||||||
| UPC/EAN: | 4030641414788 | ||||||||||
| Weight: | 0.101 kg | ||||||||||
| Type: | EO9920.82/200 AC/DC24-240V ,05S-30H | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Dold 0041478:
Applications
This relay is suitable for industrial applications requiring time-controlled switching operations, such as in automation systems, machine controls, or plants with sequential processes. The versatile time functions allow precise control of on- and off-delay times as well as wipe functions, which are useful for synchronizing processes or avoiding switching surges. The design with a width of 35 mm ensures compatibility with standard control panels and standard rails.
Functions and Features in Detail
The relay’s functions are programmable via DIP switches on the front panel, enabling quick and easy adaptation to different requirements. Two LEDs serve as indicators: the red LED lights up when operating voltage is applied and flashes during the timing period, while the green LED indicates the status of the output contacts. The contact configuration consists of two changeover contacts made of AgNi contact material, ensuring high switching capacity and long service life. The rated operating voltage is AC 250 V, and the thermal current rating is 2 x 5 A.
Technical Explanation
The relay operates on the principle of time delay, with the duration controlled by an internal timing circuit. The time setting is continuously adjustable, with the scale divided into 10 ranges, each covering a factor of 20. The reset time is approximately 50 ms, and the repeatability accuracy is ±0.5 %. Voltage influence values are below 1 % across the entire voltage range, and temperature influence is less than 0.1 % per Kelvin. The minimum on-time for control input 6/7 is 15 ms.
Compatibility and Accessories
The device is designed for mounting in enclosures and can be mounted directly on a standard rail or integrated into a control panel using an optional mounting frame. The electrical life expectancy is 250,000 switching operations at 1 A and AC 230 V, while the mechanical life expectancy is 50 million switching operations. The permissible switching frequency is 72,000 operations per hour. The short-circuit withstand capability is defined with a maximum fuse rating of 4 A gG/gL.
Mounting and Installation
Mounting is either on a standard rail (DIN rail) or using an optional mounting frame into a control panel. The terminals are clearly labeled, and functions are set via DIP switches on the front panel. The operating temperature range is from -20 °C to +60 °C, and the storage temperature range is from -40 °C to +70 °C. The relative humidity is up to 93 % at 40 °C, and the operating altitude is limited to below 2000 m.
Operational Advantages
The relay offers high flexibility with four switchable functions and ten time ranges, which can be easily adjusted via DIP switches. The dual-LED indication allows for quick visual monitoring of the operating status. The construction in accordance with IEC/EN 61812-1 ensures high reliability and safety. The EMC coverage includes surge voltages, fast transients, and HF radiation, enabling safe operation even in electromagnetically noisy environments. The insulation test voltage is 2.5 kV for a duration of 1 minute, and the overvoltage category is III. The enclosure protection rating is IP 40, and the terminal protection rating is IP 40.
| Technical data | |
| Enclosure design | Switch cabinet |
| Output contacts | 2 C/O contacts |
| Time function(s) | Fleeting on break, Fleeting on make, Off-delay, with control signal, On-delay |
| Width | 35 mm |
| Type | EO 9920/200 |
| Variant | |
| Contact equipping | 2 changeover contacts |
| Nominal voltage | AC/DC 24 - 240 V |
| Time range | 0,05 s - 30 h |
