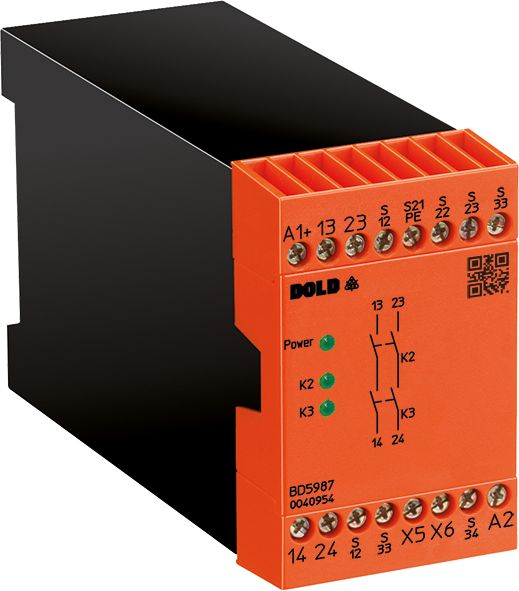

Dold 0040955 BD5987.02/001 AC 50/60 Hz 230 V emergency stop module
|
369,55 EUR |
|||||||||||
|
( 439,76 EUR incl. VAT ) ≈ £309.31 | ≈ $406.14 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 246449 | ||||||||||
| Mfg Part No: | 0040955 | ||||||||||
| UPC/EAN: | 4030641409555 | ||||||||||
| Weight: | 0.475 kg | ||||||||||
| Type: | BD5987.02/001AC50/60HZ230V | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Dold 0040955:
Applications
The BD5987.02/001AC50/60HZ230V is used in systems requiring safe shutdown in hazardous situations. These include, for example, machines with emergency stop functions, safety doors that must interrupt operation when opened, and elevator systems, where it can be used as an electronic safety circuit according to EN 81-20, section 5.11.2.2. The function as a safety door monitor enables monitoring of access doors to stop machine operation when opened.
Functions and Equipment in Detail
The device features two normally closed contacts (NO contacts) with a rated voltage of AC 230 V at 50/60 Hz. The contacts are gold-plated, ensuring reliable switching even under low-load conditions, such as signals for PLCs. The output contacts are rated for a maximum thermal current load of 10 A. Connection is made via screw terminals suitable for stranded wires with 2 x 1.5 mm² or 2 x 2.5 mm² with ferrules and plastic collars according to DIN 46 228-1/-2/-3/-4. The width is 45 mm, enabling compact mounting in standard control panels.
Technology Explained Simply
The safety relay operates on the principle of safe interruption of control circuits. In the event of failure of the operating voltage or activation of an emergency stop button, the circuit is safely interrupted. The integrated cross-connection detection in the emergency stop control circuit detects if a wire between two contacts is shorted, preventing dangerous malfunctions. LED indicators for Channel 1, Channel 2, and power supply enable visual monitoring of the operating status. Additionally, the device protects against overvoltage and short circuits, increasing its lifespan and reliability.
Compatibility and Accessories
The BD5987.02/001AC50/60HZ230V is suitable for 1- or 2-channel wiring. The BD5987.02/001 variant allows choosing between automatic enable function upon application of operating voltage or activation via an enable button. Cross-connection detection is optionally available and serves to detect incorrect connections in the emergency stop control circuit. Certifications include TÜV and UL-Recognized, confirming suitability for use in various markets.
Mounting and Installation
Mounting is done in standard control panels with a width of 45 mm. The screw terminals allow secure and easy connection of wires. The terminals are designed for the specified wire cross-sections, and the use of ferrules and plastic collars according to DIN 46 228-1/-2/-3/-4 is recommended. Installation must follow the manufacturer’s technical instructions to ensure full safety functionality.
Advantages in Operation
The safety relay offers high reliability through integrated protection functions such as overvoltage and short-circuit protection. Cross-connection detection increases safety by detecting incorrect connections in the emergency stop control circuit. LED indicators enable quick diagnosis of the operating status. Compatibility with elevator systems according to EN 81-20/-50 and certifications according to EN ISO 13849-1 (Category 4, PL e) and IEC/EN 62061 (SIL 3) make the device suitable for demanding safety requirements.
Certifications and Markings
The device complies with the requirements of Directive 2014/33/EU on lifts. It is certified with TÜV and UL-Recognized, confirming its suitability for use in various markets. Safety categories include Category 4 and PL e according to EN ISO 13849-1, as well as SIL 3 according to IEC/EN 62061 and SIL 2 according to EN 61508, depending on the variant.
Application Examples
The BD5987.02/001AC50/60HZ230V is used in various industrial applications, such as machines with emergency stop functions, safety doors that interrupt operation when opened, and elevator systems. Its use as an electronic safety circuit according to EN 81-20, section 5.11.2.2, demonstrates the device’s versatility. Cross-connection detection in the emergency stop control circuit enhances safety in critical applications.
Maintenance and Repair
Maintenance must follow the manufacturer’s technical instructions. The contacts are gold-plated, ensuring high service life and reliability. The screw terminals allow easy and secure wire connections. LED indicators enable quick diagnosis of the operating status. Repairs must only be carried out by qualified personnel to ensure safety functions remain intact.
Advantages in Operation
The safety relay offers high reliability through integrated protection functions such as overvoltage and short-circuit protection. Cross-connection detection increases safety by detecting incorrect connections in the emergency stop control circuit. LED indicators enable quick diagnosis of the operating status. Compatibility with elevator systems according to EN 81-20/-50 and certifications according to EN ISO 13849-1 (Category 4, PL e) and IEC/EN 62061 (SIL 3) make the device suitable for demanding safety requirements.
Certifications and Markings
The device complies with the requirements of Directive 2014/33/EU on lifts. It is certified with TÜV and UL-Recognized, confirming its suitability for use in various markets. Safety categories include Category 4 and PL e according to EN ISO 13849-1, as well as SIL 3 according to IEC/EN 62061 and SIL 2 according to EN 61508, depending on the variant.
Application Examples
The BD5987.02/001AC50/60HZ230V is used in various industrial applications, such as machines with emergency stop functions, safety doors that interrupt operation when opened, and elevator systems. Its use as an electronic safety circuit according to EN 81-20, section 5.11.2.2, demonstrates the device’s versatility. Cross-connection detection in the emergency stop control circuit enhances safety in critical applications.
Maintenance and Repair
Maintenance must follow the manufacturer’s technical instructions. The contacts are gold-plated, ensuring high service life and reliability. The screw terminals allow easy and secure wire connections. LED indicators enable quick diagnosis of the operating status. Repairs must only be carried out by qualified personnel to ensure safety functions remain intact.
| Technical data | |
| 1- / 2-channel | 1, 2 |
| Approvals | UL-Recognized |
| Cat. / PL acc. to EN ISO 13849-1 | 4/e |
| Connection | Screw terminals |
| Output contacts max. | 2 NO contacts |
| SIL CL acc. to IEC/EN 62061 | 3 |
| SIL acc. to IEC/EN 62061 | 3 |
| Thermal current Ith max. | 10 A |
| Width | 45 mm |
| Type | BD 5987 |
| Cross fault detection | |
| Suited as safety gate monitor | |
| Variant | |
| Contact equipping | 2 NO contacts |
| Nominal voltage | AC 230 V 50/60 Hz |
| Approvals and Markings | TÜV |
| Variant | Optionally with cross fault detection in emergency stop circuit (application example M6904). Optionally automatic On function when operating voltage is applied or after activation by the On pushbutton |
