Dold 0040954 BD5987.02/001 DC24V emergency stop module

Your rating:
Average rating
product review for Dold 0040954 BD5987.02/001 DC24V emergency stop module
( 4.7 / 5 ) 12 ratings
Dold 0040954

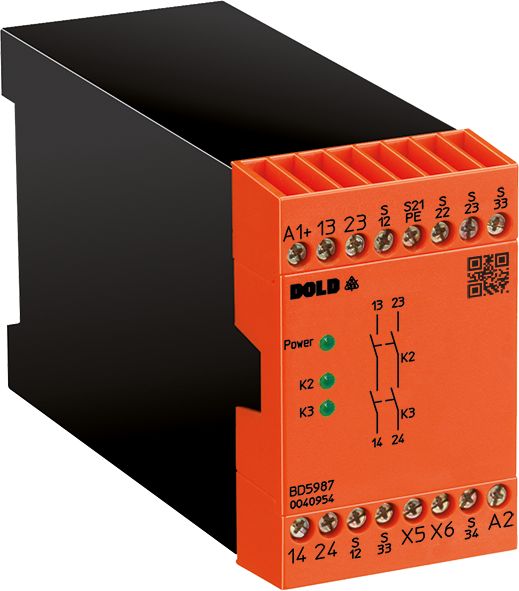

This image may differ from the desired article.
Dold 0040954Dold 0040954
351,78 EUR
( 418,62 EUR incl. VAT )
≈ £294.44  |  ≈ $386.61
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0040954 BD5987.02/001 DC24V emergency stop module
Datasheet:file_download Download
Lieske Part No.:1312553
Mfg Part No: 0040954
UPC/EAN: 4030641409548
Weight:0.475 kg
Type:BD5987.02/001 DC24V
Graduated prices net
From piecesPrice per pieces
4338,59 EUR
8325,40 EUR
12312,20 EUR
16299,01 EUR

Product information for Dold 0040954:

The Dold BD5987.02/001 DC24V is a safety relay for use in industrial systems, particularly for the safe interruption of safety circuits. It serves as a emergency stop module and can be used in applications with emergency stop buttons and safety doors. The device is designed for use in safety-oriented control systems, where functions such as cross-connection detection and automatic enable function can be optionally configured. The nominal voltage is DC 24 V, and the module is suitable for operation in 1- or 2-channel circuits.

Applications

The BD5987.02/001 is used in systems where the safety of personnel and machinery is paramount. It is suitable as a safety door monitor and can be used in elevator installations in accordance with EN 81-20/-50. The application also includes use as an electronic safety circuit, which according to EN 81-20, section 5.11.2.2, can replace a safety switch. The devices are designed for use in safety-critical environments where reliable response to fault conditions is required.

Functions and equipment in detail

The module features 2 normally closed contacts as output contacts, rated for AC 250 V. The contacts are gold-plated, making them particularly suitable for switching small loads, such as signals to a PLC. The cross-connection detection in the emergency stop control circuit enables detection of wire cross-connections, increasing safety. Optionally, the device can be equipped with an automatic enable function, which is activated when the operating voltage is applied, or can be started via an enable button. Indication is provided by LED indicators for channel 1, channel 2, and power supply, visually signaling the operating status.

Technology explained simply

The device operates according to standards for safety-oriented control systems. It complies with Category 4 and PL e according to EN ISO 13849-1, representing the highest safety level for mechanical systems. Additionally, it meets the requirements of SIL 3 according to IEC/EN 62061 and SIL 3 according to EN 61508, confirming reliability in safety-critical applications. The thermal current rating (Ith max.) is 10 A, indicating the maximum continuous current load. The connection technology uses screw terminals, designed for stranded wires with 2 x 1.5 mm² or 2 x 2.5 mm² with ferrules and plastic collars according to DIN 46 228-1/-2/-3/-4. The width is 45 mm, enabling compact mounting in standard control panels.

Compatibility and accessories

The BD5987.02/001 is designed for use in 1- or 2-channel circuits. It can be used in combination with emergency stop buttons and safety doors. The version with cross-connection detection is specifically intended for applications where detection of wire cross-connections in the emergency stop control circuit is required. The devices are equipped with overvoltage and short-circuit protection, enhancing operational safety. Certifications include TÜV and UL-Recognized, confirming compliance with international safety standards.

Mounting and installation

Mounting is done in standard control panels with a width of 45 mm. The connection terminals are designed for use with stranded wires according to DIN 46 228-1/-2/-3/-4. Installation requires adherence to safety instructions and intended use as described in the datasheet. The devices are designed for use in industrial environments and require no special mounting tools.

Advantages in operation

The BD5987.02/001 offers high safety performance through the combination of cross-connection detection, automatic enable function, and gold-plated contacts. The LED indicators allow for quick visual inspection of the operating status. Compliance with standards EN ISO 13849-1, IEC/EN 62061, and EN 61508 ensures high reliability. The compact design and screw terminals facilitate installation and maintenance. The device is designed for use in safety-critical systems where reliable and rapid response to fault conditions is required.

Technical data
1- / 2-channel1, 2
ApprovalsUL-Recognized
Cat. / PL acc. to EN ISO 13849-14/e
ConnectionScrew terminals
Output contacts max.2 NO contacts
SIL CL acc. to IEC/EN 620613
SIL acc. to IEC/EN 620613
Thermal current Ith max.10 A
Width45 mm
TypeBD 5987
Cross fault detectionYes
Suited as safety gate monitorYes
Variant
Contact equipping2 NO contacts
Nominal voltageDC 24 V
Approvals and MarkingsTÜV
VariantOptionally with cross fault detection in emergency stop circuit (application example M6904). Optionally automatic On function when operating voltage is applied or after activation by the On pushbutton


Product data sheet
Datasheet for Dold 0040954, EAN: 4030641409548

Questions & answers

What is the delivery time of Dold 0040954 BD5987.02/001 DC24V emergency stop module ?

The article Dold 0040954 BD5987.02/001 DC24V emergency stop module is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0040954 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0040954 BD5987.02/001 DC24V emergency stop module always at the best possible price. We can give you a discount of 2% on Dold 0040954 BD5987.02/001 DC24V emergency stop module if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of Dold 0040954 BD5987.02/001 DC24V emergency stop module we can offer you a price of 338,59 EUR per piece. The more you buy, the cheaper the article will be.
