Dold 0040430 BO5988.47/124 DC24V+AC230V 1-10S emergency stop module

Your rating:
Average rating
product review for Dold 0040430 BO5988.47/124 DC24V+AC230V 1-10S emergency stop module
( 4.5 / 5 ) 79 ratings

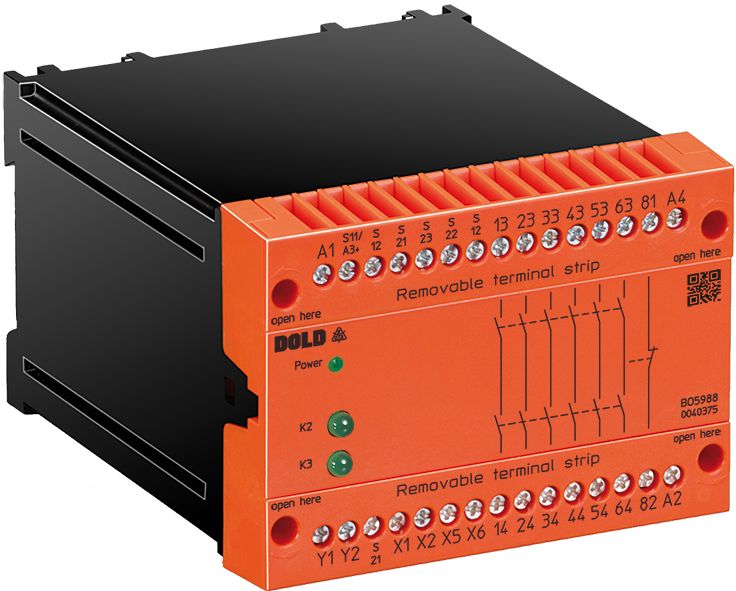

Dold 0040430
This image may differ from the desired article.
607,40 EUR
( 722,81 EUR incl. VAT )
≈ £508.39  |  ≈ $667.53
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0040430 BO5988.47/124 DC24V+AC230V 1-10S emergency stop module
Datasheet:file_download Download
Lieske Part No.:677719
Mfg Part No: 0040430
UPC/EAN: 4030641404307
Weight:0.89 kg
Type:BO5988.47/124 DC24V+AC230V 1-10S
Graduated prices net
From piecesPrice per pieces
3584,62 EUR
6561,85 EUR
9539,07 EUR
12516,29 EUR

Product information for Dold 0040430:

The Dold safety relay BO5988.47/124 DC24V+AC230V 1-10S is an industrial emergency stop module for the protection function of personnel and machinery. It is used for monitoring sliding safety guards and implementing emergency stop circuits in machine controls. The device is designed as a 1- or 2-channel version and features dual-voltage supply with DC 24 V and AC 230 V, with no external voltage supply required during the time sequence. The time delay is adjustable in the range of 1 to 10 seconds. The contact configuration includes 3 normally closed contacts, one delayed-closing normally closed contact, and one normally open contact as an alarm contact. The width is 100 mm, enabling mounting in standard 35 mm control panels.

Applications
This safety relay is intended for use in industrial plants, particularly in machines with emergency stop functions. It is used to monitor sliding safety guards to ensure that the machine is safely switched off when the safety mechanism is opened. The application is in systems that must comply with the requirements of the Machinery Directive and safety function standards.

Functions and Equipment in Detail
The device features an integrated cross-short detection that recognizes a short circuit in the emergency stop control circuit and triggers the safety function accordingly. The output contacts are rated for up to 6 normally closed contacts and 1 normally open contact, with a switching voltage up to AC 250 V. The connection technology uses removable screw terminals suitable for wires with 2 x 1.5 mm² (with ferrule and plastic sleeve DIN 46 228-1/-2/-3/-4) or 2 x 2.5 mm² (with ferrule DIN 46 228-1/-2/-3). LED indicators for channel 1/2 and power supply enable visual monitoring of the operating status.

Technology Explained Simply
The safety relay operates on the principle of redundant monitoring. The 1- or 2-channel wiring enables increased safety through redundant signal transmission. The integrated cross-short detection checks the integrity of the control circuit and prevents false alarms caused by short circuits. The delayed-closing contact ensures controlled shutdown, adjustable between 1 and 10 seconds. The dual-voltage supply (DC 24 V + AC 230 V) offers flexibility when integrating into existing systems. The thermal current Ith max. is 10 A, defining the contact load capacity.

Compatibility and Accessories
The device is designed for use in industrial control systems and can monitor external contactors via the feedback circuit X1-X2. The integrated short-circuit and overvoltage protection function increases system reliability. It is equipped with integrated short-circuit and overvoltage protection, enhancing electrical safety. The removable terminals facilitate installation and maintenance.

Mounting and Installation
Mounting is in standard 35 mm control panels. The removable screw terminals allow flexible and secure connection of wires. The terminals are designed for wires with 2 x 1.5 mm² (with ferrule and plastic sleeve DIN 46 228-1/-2/-3/-4) or 2 x 2.5 mm² (with ferrule DIN 46 228-1/-2/-3). The LED indicators for channel 1/2 and power supply support commissioning and maintenance.

Operational Advantages
The safety relay provides high safety performance with Performance Level (PL) e and Category 4 according to EN ISO 13849-1, as well as Safety Integrity Level (SIL CL) 3 according to IEC/EN 62061. Certifications TÜV, UKCA, and UL-Recognized confirm compliance with international safety standards. The integrated cross-short detection and feedback circuit X1-X2 increase the reliability of the safety function. The LED indicators enable quick diagnosis of operating states. The dual-voltage supply and adjustable time delay offer flexibility when integrating into existing systems.

Certifications and Markings
The device complies with the requirements of standards EN ISO 13849-1 (Category 4, PL e) and IEC/EN 62061 (SIL CL 3, SIL 3). Certifications TÜV, UKCA, and UL-Recognized confirm compliance with applicable safety standards. The width of 100 mm allows mounting in standard control panels.

Safety Functions
The integrated cross-short detection monitors the emergency stop control circuit and detects short circuits. The feedback circuit X1-X2 enables monitoring of external contactors. The LED indicators for channel 1/2 and power supply support diagnostics. The dual-voltage supply (DC 24 V + AC 230 V) offers flexibility. The time delay is adjustable between 1 and 10 seconds. The contact configuration includes 3 normally closed contacts, one delayed-closing normally closed contact, and one normally open contact as an alarm contact.

Application Scenarios
The device is used in machine controls, particularly in systems with emergency stop functions. It is suitable for monitoring sliding safety guards to ensure that the machine is safely switched off when the safety mechanism is opened. The application is in systems that must comply with the requirements of the Machinery Directive and safety function standards.

Maintenance and Repair
Maintenance involves visual inspection of the LED indicators and connection terminals. The removable screw terminals facilitate inspection and maintenance. The integrated cross-short detection and feedback circuit X1-X2 increase system reliability. The certifications TÜV, UKCA, and UL-Recognized confirm compliance with applicable safety standards.

Technical data
1- / 2-channel1, 2
ApprovalsUL-Recognized
Cat. / PL acc. to EN ISO 13849-14/e
ConnectionPluggable screw terminals
Output contacts max.1 NC contact, 6 NO contacts
SIL CL acc. to IEC/EN 620613
SIL acc. to IEC/EN 620613
Thermal current Ith max.10 A
Width100 mm
TypeBO 5988
Cross fault detectionYes
Variant
Contact equipping3 NO contacts, 1 NO contact delayed, 1 NC contact as signal contact
Nominal voltageDC 24 V + AC 230 V
Time range1 - 10 s
Approvals and MarkingsTÜV, UKCA
VariantAuxiliary supply is not nesseary during elapse of time: tv adjustable. Dual voltage model


Product data sheet
Datasheet for Dold 0040430, EAN: 4030641404307

Questions & answers

What is the delivery time of Dold 0040430 BO5988.47/124 DC24V+AC230V 1-10S emergency stop module ?

The article Dold 0040430 BO5988.47/124 DC24V+AC230V 1-10S emergency stop module is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0040430 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0040430 BO5988.47/124 DC24V+AC230V 1-10S emergency stop module always at the best possible price. We can give you a discount of 2% on Dold 0040430 BO5988.47/124 DC24V+AC230V 1-10S emergency stop module if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 3 pieces of Dold 0040430 BO5988.47/124 DC24V+AC230V 1-10S emergency stop module we can offer you a price of 584,62 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
