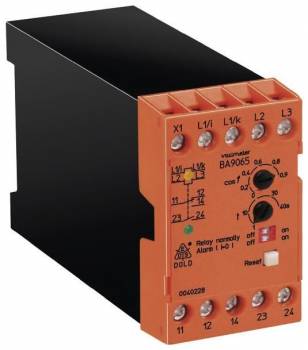

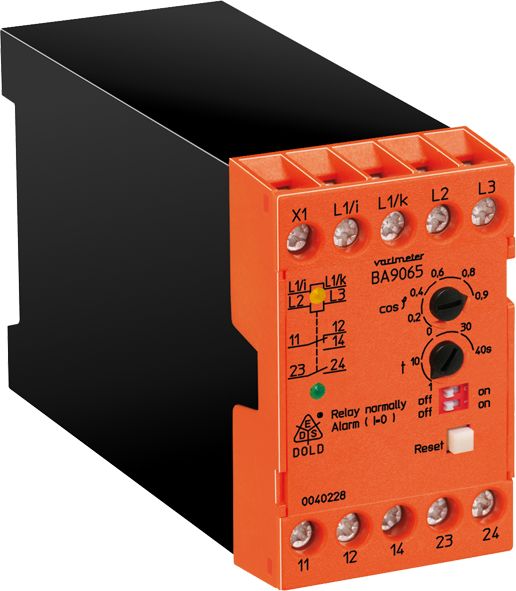

Dold 0039728 BA9065.11/001 AC220-254V 0.5-10A underload monitor Tv=1-40S

Your rating:
Average rating
product review for Dold 0039728 BA9065.11/001 AC220-254V 0.5-10A underload monitor Tv=1-40S
( 4.4 / 5 ) 9 ratings
Dold 0039728
This image may differ from the desired article.
Dold 0039728Dold 0039728
300,34 EUR
( 357,40 EUR incl. VAT )
≈ £251.38  |  ≈ $330.07
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0039728 BA9065.11/001 AC220-254V 0.5-10A underload monitor Tv=1-40S
Datasheet:file_download Download
Lieske Part No.:657426
Mfg Part No: 0039728
UPC/EAN: 4030641397289
Weight:0.3 kg
Type:BA9065.11/001AC220-254V0,5-10A
Graduated prices net
From piecesPrice per pieces
4289,08 EUR
8277,81 EUR
12266,55 EUR
16255,29 EUR

Product information for Dold 0039728:

The underload monitor BA9065.11/001AC220-254V0,5-10A from Dold is an industrial monitoring switch for detecting underload and no-load conditions in asynchronous motors. The device monitors the phase shift between current and voltage, where the phase angle (cos ϕ) changes with the motor load. This measurement method enables independent monitoring regardless of motor size and is particularly suitable for applications requiring early detection of operational faults such as belt breakage in fans, filter blockage, or valve closure in centrifugal pumps. The device is designed for use in enclosures and has a width of 45 mm.

Applications

The underload monitor is used in industrial plants to monitor the operation of asynchronous motors. Typical applications include monitoring fans to detect belt breakage, monitoring filters to detect blockage, and monitoring centrifugal pumps to prevent dry running or valve closure. Detection is independent of motor rotation direction, allowing flexible installation. The device is also suitable for 400 Hz networks and can be used with motors operated via frequency converters, provided the trip threshold setting accounts for frequency-dependent cos ϕ changes.

Functions and Equipment in Detail

The device features programmable functionality, allowing selection between different operating modes. It can be configured to trigger an alarm when the motor is de-energized. The reset function can be set to automatic reset or memory mode, with memory mode activated by connecting terminals X1 and L1/i. The trip delay is adjustable between 1 and 40 seconds, enabling adaptation to different system conditions. A remote RESET is possible via terminal X1, allowing the device to be reset from outside the enclosure.

Technology Explained Simply

The cos ϕ measurement is performed by evaluating the phase shift between current and voltage, determining the relative zero-crossing shift. This measurement method is fundamentally independent of frequency and voltage amplitude. The BA9065.11/001 variant features a separate auxiliary voltage supply, enabling evaluation of variable frequencies and voltages, as occur during frequency converter operation. The rated voltage is AC 220 to 254 V, and the current range is between 0.5 and 10 A. For higher currents, an external current transformer can be used. The rated frequency range is 10 to 400 Hz, with measurement also possible at variable frequencies.

Compatibility and Accessories

The device is suitable for alternating and three-phase motors and can be used in single- or three-phase systems. Compatibility with frequency converters is provided, with the trip threshold setting needing to account for frequency-dependent cos ϕ changes. When using a current transformer, it must be suitable for the occurring frequencies. The connection terminals allow connection to the three-phase network (L1/i, L2, L3) and to the load current circuit (L1/k). The auxiliary voltage is supplied via terminals A1 and A2.

Mounting and Installation

Mounting is performed in enclosures, with the 45 mm width allowing placement in standard control panels. The terminals are clearly labeled, with the connection of X1 and L1/i enabling memory mode. The connection terminals for the current measurement path (L1/i, L1/k) allow integration of an external current transformer if required. The auxiliary voltage is supplied via A1 and A2, with only the potential from L1/i allowed to be connected to X1.

Operational Advantages

Early detection of underload and no-load conditions enables preventive maintenance and prevents costly damage. Programmable functions such as automatic reset, remote RESET, and adjustable trip delay increase flexibility and adaptability to different systems. Continuous monitoring ensures operational safety and high system availability. The device complies with IEC/EN 60255-1 and is therefore suitable for use in industrial plants.

Technical data
1- / 3-phase1, 3
Auxiliary voltageAC, Without
Enclosure designSwitch cabinet
Measuring range max.10 A
Output contacts1 C/O contact, 1 NO contact
Width45 mm
TypeBA 9065
Variant
Contact equipping1 changeover contact
Current range0,5 - 10 A
Nominal voltageAC 220 - 254 V
Operate delay1 - 40 s
VariantWith auxiliary voltage. Can be used also with frequency converters


Product data sheet
Datasheet for Dold 0039728, EAN: 4030641397289

Questions & answers

What is the delivery time of Dold 0039728 BA9065.11/001 AC220-254V 0.5-10A underload monitor Tv=1-40S ?

The article Dold 0039728 BA9065.11/001 AC220-254V 0.5-10A underload monitor Tv=1-40S is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0039728 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0039728 BA9065.11/001 AC220-254V 0.5-10A underload monitor Tv=1-40S always at the best possible price. We can give you a discount of 2% on Dold 0039728 BA9065.11/001 AC220-254V 0.5-10A underload monitor Tv=1-40S if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of Dold 0039728 BA9065.11/001 AC220-254V 0.5-10A underload monitor Tv=1-40S we can offer you a price of 289,08 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
