Dold 0035300 BD5980N.02 DC24V two-hand safety relay

Your rating:
Average rating
product review for Dold 0035300 BD5980N.02 DC24V two-hand safety relay
( 4.5 / 5 ) 11 ratings

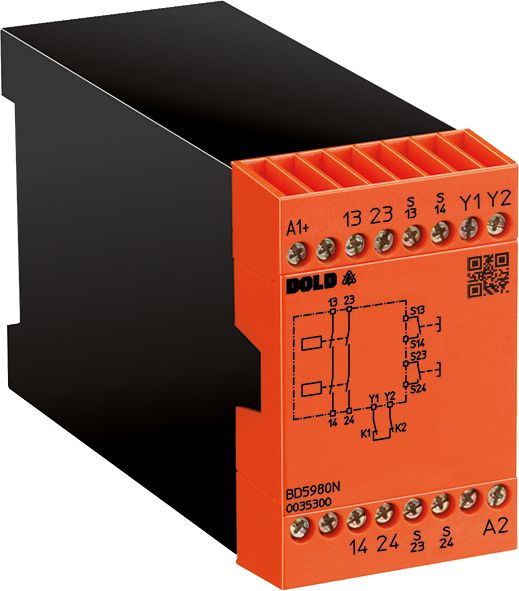

Dold 0035300
This image may differ from the desired article.
Dold 0035300Dold 0035300
394,87 EUR
( 469,90 EUR incl. VAT )
≈ £330.51  |  ≈ $433.96
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0035300 BD5980N.02 DC24V two-hand safety relay
Datasheet:file_download Download
Lieske Part No.:977960
Mfg Part No: 0035300
UPC/EAN: 4030641353001
Weight:0.435 kg
Type:BD5980N.02DC24V
Graduated prices net
From piecesPrice per pieces
4380,06 EUR
8365,25 EUR
12350,45 EUR
16335,64 EUR

Product information for Dold 0035300:

The Dold safety relay BD5980N.02DC24V is an industrial device for the safe control of safety circuits. It is used for safety-oriented enabling and interruption of circuits, particularly in applications with two-hand controls, such as those used in metalworking presses or other machines with hazardous closing movements. The device is designed for use in safety-critical systems and meets the requirements of standards EN ISO 13849-1, IEC/EN 62061, and EN 574. It is rated for a nominal voltage of DC 24 V and features a contact configuration with 2 NO contacts.

Applications

The safety relay BD5980N.02DC24V is used in industrial automation technology where safe machine shutdown is required to protect personnel from injury. Typical applications include machines with hazardous movements, where a two-hand control requires the operator to use both hands on the control panel, ensuring they cannot enter the hazardous zone. The application is in accordance with EN 574 Category III A, which represents a high safety requirement.

Functions and Equipment in Detail

The relay features 2 NO contacts designed for the safe operation of safety circuits. The maximum thermal current rating is 5 A, indicating the contact load capacity under continuous operation. The connection technology uses screw terminals designed for stranded wire connections. According to the manufacturer, stranded wires with a cross-section up to 2.5 mm² with ferrules DIN 46228-1/-2/-3/-4 can be connected. The width is 45 mm, enabling mounting in standard DIN control panels.

Technology Explained Simply

The safety relay operates on the principle of safe signal processing. It receives signals from safety switches, such as two-hand controls, and accordingly enables or interrupts a safety circuit. The safety function is ensured by compliance with standards such as EN ISO 13849-1 (Performance Level PL c, Category 1) and IEC/EN 62061 (SIL 1), which define the reliability and fault tolerance of the device. The device is designed for use in systems with safety level Type III A according to EN 574 and EN ISO 13851, representing a high safety level.

Compatibility and Accessories

The relay is designed for use in industrial safety systems and can be combined with two-hand controls and other safety switches that meet the relevant standards. The connection terminals are designed for stranded wire connections, with maximum cross-sections and compatible ferrule types (DIN 46228-1/-2/-3/-4) specified in the datasheet. It is certified with TÜV and UL-Recognized, confirming compliance with international safety standards.

Mounting and Installation

Mounting is performed in standard DIN control panels with a width of 45 mm. The screw terminals allow for a secure and mechanically stable connection of the wiring. The connection terminals are designed for stranded wire connections, with maximum cross-sections and compatible ferrule types specified in the datasheet. Installation is carried out according to the manufacturer’s technical specifications, with correct wiring of safety circuits being essential.

Advantages in Operation

The safety relay BD5980N.02DC24V provides a reliable and standard-compliant safety function for industrial applications. Compliance with standards EN ISO 13849-1, IEC/EN 62061, and EN 574 ensures a high safety level. The width of 45 mm allows for compact mounting in control panels. The screw terminals provide a secure and mechanically stable connection for wiring. The maximum thermal current rating of 5 A enables operation under realistic load conditions. The TÜV and UL-Recognized certifications confirm compliance with international safety standards.

Safety Technical Data

The device meets the requirements of standard EN ISO 13849-1 with Performance Level PL c and Category 1. According to IEC/EN 62061, it is designed for SIL 1, which describes the safety integrity. The safety levels according to EN 574 and EN ISO 13851 are Type III A, representing a high safety level. The maximum thermal current rating is 5 A. The connection technology uses screw terminals designed for stranded wires up to 2.5 mm² with ferrules DIN 46228-1/-2/-3/-4. The width is 45 mm. The TÜV and UL-Recognized certifications confirm compliance with international safety standards.

Technical data
ApprovalsUL-Recognized
Cat. / PL acc. to EN ISO 13849-11/c
ConnectionScrew terminals
Output contacts max.2 NO contacts
SIL CL acc. to IEC/EN 620611
SIL acc. to IEC/EN 620611
Safety integrity level according to EN 574lll A
Safety integrity level according to EN ISO 13851lll A
Thermal current Ith max.5 A
Width45 mm
TypeBD 5980N
Variant
Contact equipping2 NO contacts
Nominal voltageDC 24 V
Approvals and MarkingsTÜV


Product data sheet
Datasheet for Dold 0035300, EAN: 4030641353001

Questions & answers

What is the delivery time of Dold 0035300 BD5980N.02 DC24V two-hand safety relay ?

The article Dold 0035300 BD5980N.02 DC24V two-hand safety relay is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0035300 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0035300 BD5980N.02 DC24V two-hand safety relay always at the best possible price. We can give you a discount of 2% on Dold 0035300 BD5980N.02 DC24V two-hand safety relay if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of Dold 0035300 BD5980N.02 DC24V two-hand safety relay we can offer you a price of 380,06 EUR per piece. The more you buy, the cheaper the article will be.
