Dold 0035299 BD5980N.02 AC 50/60 Hz 230 V two-hand safety relay

Your rating:
Average rating
product review for Dold 0035299 BD5980N.02 AC 50/60 Hz 230 V two-hand safety relay
( 4.6 / 5 ) 20 ratings
Dold 0035299

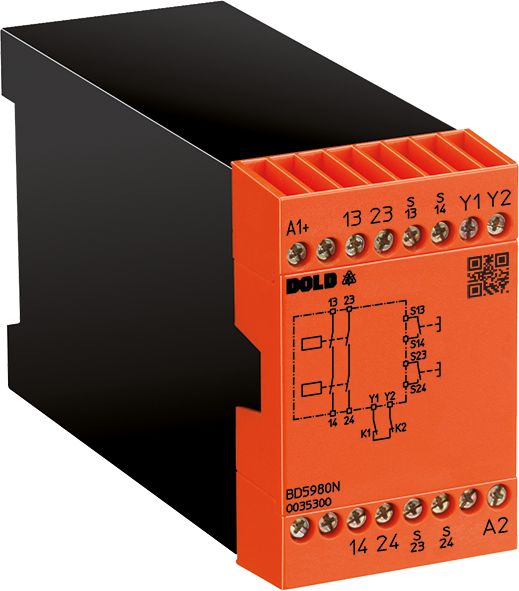

This image may differ from the desired article.
Dold 0035299Dold 0035299
408,55 EUR
( 486,17 EUR incl. VAT )
≈ £341.96  |  ≈ $449.00
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0035299 BD5980N.02 AC 50/60 Hz 230 V two-hand safety relay
Datasheet:file_download Download
Lieske Part No.:599401
Mfg Part No: 0035299
UPC/EAN: 4030641352998
Weight:0.435 kg
Type:BD5980N.02 AC50/60HZ 230V
Graduated prices net
From piecesPrice per pieces
4393,23 EUR
8377,91 EUR
12362,59 EUR
16347,27 EUR

Product information for Dold 0035299:

The Dold safety relay BD5980N.02 AC50/60HZ 230V is a specialised component for safety-oriented control of machines and systems. It is used for the safe enabling and interruption of safety circuits, particularly in applications with two-hand controls, such as those used in metalworking presses or other machines with hazardous closing movements. The device is designed for use in industrial environments where compliance with safety standards and accident prevention are paramount.

Applications

The safety relay BD5980N.02 is intended for use in machines complying with EN 574 Category III A. It is typically integrated into systems requiring two-handed operation to minimise the risk of accidental or uncontrolled movements. Applications include presses, stamping machines, and other equipment where the operator may physically approach moving parts. Compliance with standards EN ISO 13849-1 and EN ISO 13851 ensures defined safety performance necessary for protecting personnel and machinery.

Functions and Features in Detail

The relay features a contact configuration with 2 normally open (NO) contacts, suitable for controlling safety functions. The rated voltage is AC 230 V at a frequency of 50/60 Hz, making it suitable for use in standard industrial power supplies. The maximum thermal current rating (Ith max.) is 5 A, defining the contact load capacity under normal operating conditions. The width of 45 mm allows for compact mounting in standard DIN-format control panels.

Technology Explained Simply

The safety relay operates on the principle of safe signal processing. It monitors the status of safety switches, such as two-hand controls, and only enables the safety circuit when all required conditions are met. The output contacts (2 NO contacts) then activate the machine control. The safety functions are certified according to EN ISO 13849-1 (Performance Level PL c, Category 1) and IEC/EN 62061 (SIL 1). Additionally, the device meets the safety level Type III A according to EN 574 and EN ISO 13851, ensuring high reliability in avoiding hazardous situations. Connection is made via screw terminals suitable for wires with a cross-section up to 2.5 mm², and the use of ferrules and plastic collars in accordance with DIN 46228-1/-2/-3/-4 is also possible.

Compatibility and Accessories

The BD5980N.02 is designed for use in industrial control systems complying with the mentioned safety standards. It can be used in combination with two-hand controls, emergency stop switches, and other safety switches to form a complete safety chain. The TÜV and UL-Recognized approvals confirm compliance with international safety standards. Use in existing installations requires adherence to the relevant standards and correct integration into the overall circuit diagram.

Mounting and Installation

Mounting is carried out in standard control panels with a width of 45 mm. The connection terminals are designed for wire connections, with maximum cross-sections and the use of ferrules and plastic collars according to DIN 46228-1/-2/-3/-4 to be considered. Installation requires compliance with electrical safety regulations and correct wiring according to the circuit diagram. Operational safety depends on proper mounting and adherence to technical specifications.

Advantages in Operation

The safety relay BD5980N.02 provides a reliable and standard-compliant solution for safety control in industrial systems. The combination of compact design, high safety performance, and universal connection technology enables flexible integration into existing systems. The TÜV and UL-Recognized approvals facilitate machine and system certification in various markets. Compliance with standards EN ISO 13849-1, IEC/EN 62061, and EN 574 ensures clear definition of safety functions and simplifies machine design validation.

Technical data
ApprovalsUL-Recognized
Cat. / PL acc. to EN ISO 13849-11/c
ConnectionScrew terminals
Output contacts max.2 NO contacts
SIL CL acc. to IEC/EN 620611
SIL acc. to IEC/EN 620611
Safety integrity level according to EN 574lll A
Safety integrity level according to EN ISO 13851lll A
Thermal current Ith max.5 A
Width45 mm
TypeBD 5980N
Variant
Contact equipping2 NO contacts
Nominal voltageAC 230 V 50/60 Hz
Approvals and MarkingsTÜV


Product data sheet
Datasheet for Dold 0035299, EAN: 4030641352998
