Dold 0033532 IK7816.81 AC220-240V 1-10S blink relay

Your rating:
Average rating
product review for Dold 0033532 IK7816.81 AC220-240V 1-10S blink relay
( 4.1 / 5 ) 8 ratings
Dold 0033532
This image may differ from the desired article.

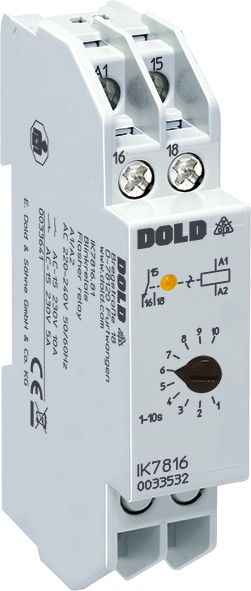

Dold 0033532Dold 0033532
108,55 EUR
( 129,17 EUR incl. VAT )
≈ £90.86  |  ≈ $119.30
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0033532 IK7816.81 AC220-240V 1-10S blink relay
Datasheet:file_download Download
Lieske Part No.:424214
Mfg Part No: 0033532
UPC/EAN: 4030641335328
Weight:0.08 kg
Type:IK7816.81AC220-240V1-10S
Graduated prices net
From piecesPrice per pieces
5104,48 EUR
10100,41 EUR
1596,34 EUR
2092,27 EUR

Product information for Dold 0033532:

The Dold IK7816.81AC220-240V1-10S is an industrial time relay of the IK 7816 series, specifically designed for time-dependent control tasks in installation and industrial distribution systems. The device serves as a blink relay and enables the control of loads with a defined pulse behavior, where the pulse time is continuously adjustable between 1 and 10 seconds. The function starts with a pulse, which is necessary for applications where the time control is triggered by an external signal. The width is 17.5 mm, allowing mounting in standard distribution boxes according to DIN 43880. The housing is designed for use in installation distributors and complies with protection class IP 40 for the housing and IP 40 for the terminals according to IEC/EN 60529.

Applications
This relay is suitable for applications requiring periodic, time-controlled switching functions, for example, controlling warning lights, flashing signals, or for time-delayed activation of auxiliary functions in machine controls. The repeat accuracy of ≤ 1 % ensures precise and reproducible time control. The LED indicator signals the contact position, allowing the operating status of the output relay to be visually checked.

Functions and Equipment in Detail
The device features a 1 changeover contact as output contact, which switches with delay. The contact rating is designed for a nominal operating voltage of AC 250 V. The contact material consists of AgSnO₂, providing high switching durability and corrosion resistance. The electrical life is at least 500,000 switching operations at 3 A and AC 230 V, while the mechanical life exceeds 30 million switching operations. The maximum switching capacity is 10 A at AC 230 V for closing contacts and 5 A for opening contacts, according to IEC/EN 60947-5-1. For incandescent lamp loads, a maximum power of 1200 W is permitted.

Technology Explained Simply
The time function of the relay is based on an electronic timing circuit, allowing the pulse time to be continuously adjusted via a relative scale. The time ranges extend from 0.1 seconds to 60 minutes, with the specified variant designed for the range of 1 to 10 seconds. The duty cycle is 1:1, meaning the on-time and off-time are equal in duration. The reset time is less than 60 ms at 50/100 Hz, enabling a quick response after a cycle. The voltage influence is ≤ 1 % with a voltage variation of 0.8 to 1.1 times the nominal voltage, ensuring stable operation even with slight fluctuations in supply voltage.

Compatibility and Accessories
The relay is designed for a nominal voltage of AC 220 to 240 V and can be operated within a frequency range of ±5 % around the nominal frequency of 50/60 Hz. The drop-out voltage is 15 % of the nominal voltage. The devices are available in two housing types: The IK 7816 variant has a depth of 58 mm and bottom-mounted terminals, while the SK 7816 variant has a depth of 98 mm and top-mounted terminals. The variant described here is the IK 7816 type. The devices comply with the standard IEC/EN 61812-1 and are designed for continuous operation.

Mounting and Installation
Mounting is carried out in installation and industrial distribution systems according to DIN 43880. The terminals are arranged at the bottom, enabling easy integration into standard distribution boxes. The operating temperature ranges from -20 °C to +60 °C, and the storage temperature ranges from -25 °C to +70 °C. The relative humidity may reach up to 95 % at 40 °C. The operating altitude is limited to below 2000 m. The insulation test is performed at 2.5 kV for 1 minute. The EMC requirements comply with standards IEC/EN 61000-4-2 to -4-6, including immunity to fast transients and overvoltages.

Advantages in Operation
The continuous adjustability of the pulse time and the high repeat accuracy enable flexible and reliable control. The LED indicator simplifies diagnosis and maintenance. The robust construction with long service life and high switching durability ensures long-term operation in industrial environments. Compliance with the standard IEC/EN 61812-1 and approval for continuous operation guarantee safe and reliable performance in critical applications.

Technical data
Enclosure designDistribution board
Output contacts1 C/O contact
Time function(s)Flasher relay
Time range0,1 s - 60 min
Width17,5 mm
TypeIK 7816
Variant
Contact equipping1 changeover contact delayed
Nominal voltageAC 220 - 240 V
Pulse time1 -10 s
VariantStart with impulse


Product data sheet
Datasheet for Dold 0033532, EAN: 4030641335328
