Dold 0033387 IK8805.01 DC24V remote switch

Your rating:
Average rating
product review for Dold 0033387 IK8805.01 DC24V remote switch
( 4.3 / 5 ) 6 ratings
Dold 0033387

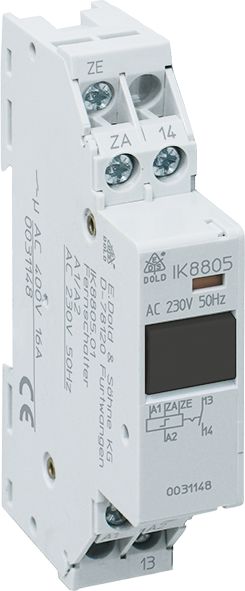

This image may differ from the desired article.
99,74 EUR
( 118,69 EUR incl. VAT )
≈ £83.48  |  ≈ $109.61
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0033387 IK8805.01 DC24V remote switch
Datasheet:file_download Download
Lieske Part No.:340344
Mfg Part No: 0033387
UPC/EAN: 4030641333874
Weight:0.12 kg
Type:IK8805.01DC24V
Graduated prices net
From piecesPrice per pieces
698,24 EUR
1296,75 EUR
2495,25 EUR
3693,76 EUR

Product information for Dold 0033387:

The Dold IK8805.01DC24V is a remote switch designed for the central switching on and off of multiple consumer groups in industrial and commercial installations. The device serves as a power impulse switch and enables control of loads via room switches or central switches, with switching operations carried out in impulse mode. The width of 17.5 mm makes it compact and suitable for mounting on a DIN rail, facilitating integration into existing enclosures. The remote switch is compliant with IEC/EN 60 669 and designed for use in electrical installations with a nominal voltage of DC 24 V.

Applications
The IK8805.01DC24V is typically used in installations where multiple consumer groups are to be centrally controlled via room switches or central switches. This includes, for example, lighting systems in large rooms, production halls, or administrative buildings, where central switching capability is required. The reduced wiring achieved by using room switches reduces installation effort and susceptibility to errors. The switching position indicator allows visual verification of the switch state, which is helpful during maintenance and diagnostics.

Functions and Equipment in Detail
The device features contact configuration with one close contact (1 NO contact) and is designed for a nominal voltage of DC 24 V. The maximum contact configuration can include up to four changeover contacts, with the exact configuration varying by type. Operation is performed via a button, enabling manual actuation of the contacts. The switching position indicator signals the current state of the switch. The neon lamp load is limited to a maximum of 4 mA, with up to 8 neon lamps at 0.5 mA each controllable via room switches and up to 5 neon lamps at 0.5 mA each via central switches.

Technology Explained Simply
The remote switch operates in impulse mode, keeping energy consumption low. The impulse power is 11 W, and the minimum switching-on time is over 50 ms. The response time is less than 30 ms, ensuring a quick reaction to actuation. Switching capacity under lamp load includes a filament lamp load of 2000 W and a fluorescent lamp load of 20 lamps at 58 W each per contact. In dual switching (series-compensated), 2 x 20 lamps at 58 W each per contact can be switched. The electrical life is 50,000 switching operations, and the mechanical life is 200,000 switching operations. The permissible switching frequency is 1000 switching operations per hour.

Compatibility and Accessories
The remote switch is designed for use with room switches and central switches, with signals transmitted via terminals A1 (control signal L or DC+) and A2 (neutral conductor N). The output contacts are rated for loads up to AC 230 V / 400 V. Switching functions can be controlled via terminals ZE (central switch ON) and ZA (central switch OFF). Terminal designation follows EN 5000. Short-circuit resistance requires, if necessary, a maximum fuse rating of 16 A gG / gL according to IEC/EN 60947-5-1.

Mounting and Installation
Mounting is on a DIN rail, with the width of 17.5 mm enabling compact placement. The operating temperature ranges from -20 °C to +45 °C, and the storage temperature ranges from -25 °C to +55 °C. The operating altitude is limited to below 2000 m. The housing is made of thermoplastic with V0 behavior according to UL Subj. 94. The protection rating is IP 30 for the housing and IP 30 for the terminals, providing protection against contact and limited dust and splash water protection. Vibration resistance is specified according to IEC/EN 60068-2-6 with an amplitude of 0.35 mm and frequencies from 10 to 55 Hz. Climate resistance corresponds to the damp heat test according to IEC/EN 60068-2-30.

Operational Advantages
The impulse mode ensures low energy consumption and reduces heat generation in the device. Central control of multiple consumer groups via room switches reduces wiring effort and simplifies installation. The switching position indicator enables quick visual control of the operating state. The high mechanical and electrical life, as well as the high switching frequency, make the device suitable for frequent actuation. Compliance with IEC/EN 60 669 ensures safe and reliable operation in electrical installations.

Protection Rating and Environmental Conditions
The protection rating IP 30 for the housing and IP 30 for the terminals protects against finger contact and splash water. The device is designed for indoor use, as the IP 30 rating is not suitable for outdoor applications. The operating temperature range of -20 °C to +45 °C and the storage temperature range of -25 °C to +55 °C allow use in a variety of environments. The operating altitude is limited to below 2000 m, which is sufficient for most industrial applications.

Technical data
Output contacts max.4 C/O contacts
Thermal current Ith16 A
Width17,5 mm
TypeIK 8805
For top hat rail mountingYes
Variant
Contact equipping1 NO contact
Nominal voltageDC 24 V


Product data sheet
Datasheet for Dold 0033387, EAN: 4030641333874

Questions & answers

What is the delivery time of Dold 0033387 IK8805.01 DC24V remote switch ?

The article Dold 0033387 IK8805.01 DC24V remote switch is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0033387 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0033387 IK8805.01 DC24V remote switch always at the best possible price. We can give you a discount of 2% on Dold 0033387 IK8805.01 DC24V remote switch if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 pieces of Dold 0033387 IK8805.01 DC24V remote switch we can offer you a price of 98,24 EUR per piece. The more you buy, the cheaper the article will be.
