Dold 0032368 AD5998 DC24V fault detection relay

Your rating:
Average rating
product review for Dold 0032368 AD5998 DC24V fault detection relay
( 4.5 / 5 ) 21 ratings

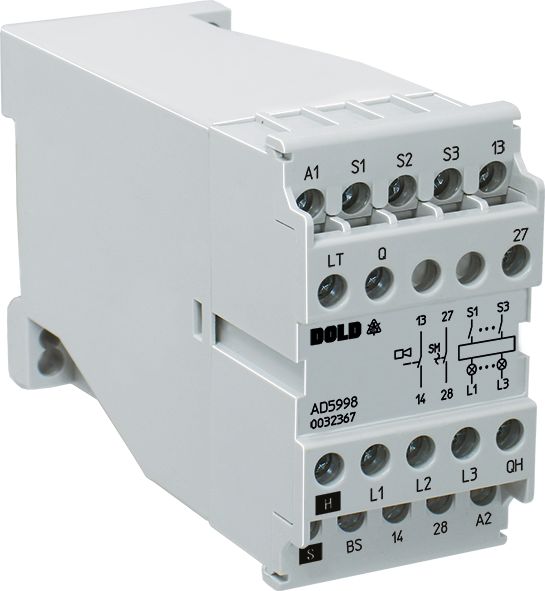

Dold 0032368
This image may differ from the desired article.
351,58 EUR
( 418,38 EUR incl. VAT )
≈ £294.27  |  ≈ $386.39
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0032368 AD5998 DC24V fault detection relay
Datasheet:file_download Download
Lieske Part No.:512802
Mfg Part No: 0032368
UPC/EAN: 4030641323684
Weight:0.275 kg
Type:AD5998DC24V
Graduated prices net
From piecesPrice per pieces
4346,31 EUR
8341,03 EUR
12335,76 EUR
16330,49 EUR

Product information for Dold 0032368:

The Dold AD5998DC24V is an industrial time relay, specifically designed as a fault alarm relay, operated in an enclosure and used for indicating fault alarms in industrial plants and buildings. It is a control device of type AD 5998, designed according to DIN 19235 as a new value indicator and operating on the working current principle. The nominal voltage is DC 24 V, with the device designed for continuous operation and having a width of 45 mm. The housing design is intended for use in enclosures, with the housing made of thermoplastic with V0 behaviour according to UL Subject 94. The housing protection rating corresponds to IP 40, and the terminals to IP 40, providing protection against contact and ingress of solid foreign objects, as well as against splashing water to a limited extent.

Applications

The device is primarily intended for monitoring industrial plants and buildings, where reliable indication of fault alarms is required. It serves as a central unit in an expandable fault alarm system, which, with the expansion device AD 5992, can include up to 303 fault alarm inputs. The application is in environments with an operating temperature of -20 °C to +60 °C and a storage temperature in the same range. The operating altitude is limited to a maximum of 2000 m above sea level.

Functions and Equipment in Detail

The AD5998DC24V features three fault alarm inputs (S1, S2, S3), each detecting a fault impulse with a duration of at least 100 ms. For acknowledging alarms, there are push-button connections available: one for lamp alarm acknowledgment (terminal Q), one for horn acknowledgment (terminal QH), and one for lamp test (terminal LT). The device has two relay outputs: one for collective alarm (terminals 27/28) and one for the horn alarm (terminals 13/14). The output load capacity is AC 230 V 2 A max. for the horn alarm, and for collective alarm and lamp alarms via the flashing strip BS, a total of AC 230 V 3 A max. or DC 24 V 2 A max. For higher switching power, a contactor must be inserted. An optional alarm generator is available.

Technology Explained Simply

The device operates on the working current principle, meaning it is energized during normal operation and interrupts the current circuit during a fault impulse to trigger the alarm. The fault alarm inputs are designed to respond only to impulses of at least 100 ms duration, to avoid false alarms caused by brief voltage fluctuations. Acknowledgment is performed via external push buttons, with the acknowledgment impulse needing to last longer than 200 ms. The lamp test function allows checking all connected lamp alarms with a single button press.

Compatibility and Accessories

The AD5998DC24V, together with the expansion device AD 5992, forms an expandable fault alarm system. The AD 5992 features six additional fault alarm inputs and can be combined multiple times to increase the total number of inputs up to 303. The terminals are designated according to EN 50005, allowing solid conductors 2 x 2.5 mm² or stranded conductors 2 x 1.5 mm² with ferrules (DIN 46228/-1/-2/-3/-4). Mounting is done on a DIN rail according to IEC/EN 60715.

Mounting and Installation

Mounting is done on a DIN rail inside the enclosure. The connection terminals are equipped with self-lifting connection washers, with a tightening torque of 0.8 Nm. Terminal designation follows EN 50005. Wiring of fault alarm inputs, relay outputs, and acknowledgment inputs is done according to the circuit diagrams in the data sheet. The supply voltage is connected to terminals A1 (+/L) and A2 (-/N).

Advantages in Operation

The system offers clear and reliable indication of fault alarms with the option for acknowledgment and lamp test. The expandability up to 303 inputs allows flexible adaptation to different plant sizes. Compliance with DIN 19235 ensures conformity with requirements for new value indicators. EMC testing according to IEC/EN 61000-4-2 to -4-5 and radio interference suppression according to EN 55011 Class B ensure stable operation in electromagnetically stressed environments. Vibration resistance and climatic resistance (20/060/04) according to IEC/EN 60068-1 guarantee robust operation under industrial conditions.

Technical data
Alarm inputs3
Alarm inputs extendable up to303
Enclosure designSwitch cabinet
Operating principleEnergized on trip
Width45 mm
TypeAD 5998
Optional buzzerYes
Variant
Nominal voltageDC 24 V


Product data sheet
Datasheet for Dold 0032368, EAN: 4030641323684

Questions & answers

What is the delivery time of Dold 0032368 AD5998 DC24V fault detection relay ?

The article Dold 0032368 AD5998 DC24V fault detection relay is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0032368 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0032368 AD5998 DC24V fault detection relay always at the best possible price. We can give you a discount of 2% on Dold 0032368 AD5998 DC24V fault detection relay if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of Dold 0032368 AD5998 DC24V fault detection relay we can offer you a price of 346,31 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
