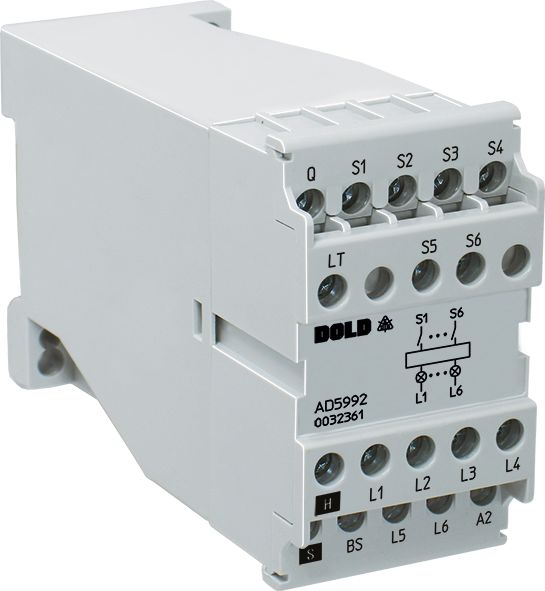

Dold 0032361 AD5992 AC 50/60 Hz 230 V surge relay
|
394,92 EUR |
|||||||||||
|
( 469,95 EUR incl. VAT ) ≈ £330.55 | ≈ $434.02 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 598352 | ||||||||||
| Mfg Part No: | 0032361 | ||||||||||
| UPC/EAN: | 4030641323615 | ||||||||||
| Weight: | 0.385 kg | ||||||||||
| Type: | AD5992 AC50/60HZ 230V | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Dold 0032361:
Applications
The AD5992 is used in plants for monitoring industrial processes, buildings, and technical systems where central display of faults is required. It is part of a system specified according to DIN 19235 for new value alarms, ensuring compliance with standards for signal processing in industrial automation. The scalability up to 303 fault alarm inputs makes it suitable for large installations with many monitoring points.
Functions and Equipment in Detail
The device features six fault alarm inputs, each representing a fault signal input for external sensors or relays. These inputs are designed for impulses with a duration of at least 100 ms to avoid false actuation due to short disturbances. The outputs (terminals L1 to L6) are rated for AC 230 V / 1 A each, enabling the control of indicator lights or other signaling devices. The terminals are equipped with self-lifting connection washers, ensuring a secure and quick connection for conductors with a cross-section of up to 2.5 mm² (solid) or 1.5 mm² (stranded).
Technology Explained Simply
The AD5992 operates continuously and is designed for an operating temperature range of -20 °C to +60 °C. The enclosure protection class is IP 40 and the terminals are IP 40, protecting against mechanical impacts and contact, but not suitable for outdoor use or humid environments. The enclosure construction made of thermoplastic with V0 behavior according to UL 94 provides a high flame retardant class. The EMC protection includes protection against electrostatic discharge (8 kV), high-frequency radiation (up to 10 V/m), and fast transients (2 kV), ensuring reliability in electromagnetically demanding environments.
Compatibility and Accessories
The AD5992 is specifically developed for use with the control unit AD 5998. Together, both devices form an expandable system that can be scaled from three to 303 fault alarm inputs. The connections are designed to be compatible with the corresponding signals of the AD 5998 control unit. Quick mounting is achieved via a DIN rail (DIN 46272), enabling easy installation in standard enclosures.
Mounting and Installation
Mounting is done via DIN rail in the enclosure. The connection terminals are designed for solid or stranded conductors, with a tightening torque of 0.8 Nm to be observed. The electrical connection is made via terminals A1 (positive/live wire) and A2 (negative/neutral wire) as well as the six fault alarm inputs S1 to S6. Outputs L1 to L6 are used to control signaling devices. The device dimensions are 45 mm (width) × 77 mm (height) × 127 mm (depth).
Advantages in Operation
The modular expandability of the system allows flexible scaling of monitoring capacity. The clear assignment of inputs and outputs, along with robust construction, ensures reliable signal transmission. Compliance with DIN 19235 ensures compatibility with existing systems and adherence to safety standards in industrial automation. Operational reliability is supported by EMC protection measures and high mechanical strength.
| Technical data | |
| Alarm inputs | 6 |
| Alarm inputs extendable up to | 303 |
| Enclosure design | Switch cabinet |
| Operating principle | Energized on trip |
| Width | 45 mm |
| Type | AD 5992 |
| Variant | |
| Nominal voltage | AC 230 V |
Questions & answers
What is the delivery time of Dold 0032361 AD5992 AC 50/60 Hz 230 V surge relay ?
The article Dold 0032361 AD5992 AC 50/60 Hz 230 V surge relay is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0032361 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Dold 0032361 AD5992 AC 50/60 Hz 230 V surge relay always at the best possible price. We can give you a discount of 2% on Dold 0032361 AD5992 AC 50/60 Hz 230 V surge relay if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of Dold 0032361 AD5992 AC 50/60 Hz 230 V surge relay we can offer you a price of 380,11 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
