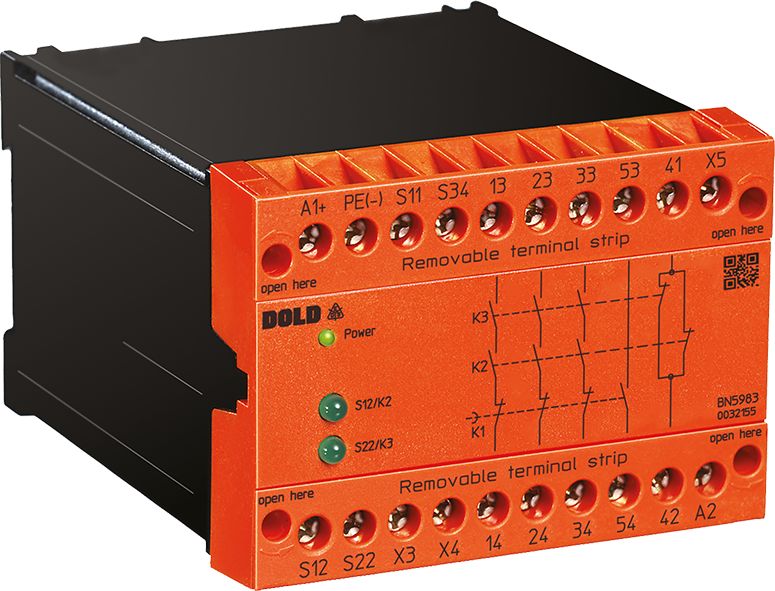

Dold 0032155 BN5983.53 DC24V emergency stop module

Your rating:
Average rating
product review for Dold 0032155 BN5983.53 DC24V emergency stop module
( 4.7 / 5 ) 12 ratings
Dold 0032155
This image may differ from the desired article.
Dold 0032155Dold 0032155
463,69 EUR
( 551,79 EUR incl. VAT )
≈ £388.11  |  ≈ $509.60
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0032155 BN5983.53 DC24V emergency stop module
Datasheet:file_download Download
Lieske Part No.:728990
Mfg Part No: 0032155
UPC/EAN: 4030641321550
Weight:0.88 kg
Type:BN5983.53DC24V
Graduated prices net
From piecesPrice per pieces
4446,30 EUR
8428,91 EUR
12411,52 EUR
16394,14 EUR

Product information for Dold 0032155:

The Dold safety relay BN5983.53DC24V is an emergency stop module for use in industrial safety systems. It serves as a protective function for personnel and machinery, particularly in emergency stop circuits and for monitoring interlock gates. The device is designed for operation with a nominal voltage of DC 24 V and features a contact configuration with 3 NO contacts and 1 NC contact, with output contacts rated for AC 400 V. The width is 100 mm, making it suitable for standard control panels.

Applications
This safety relay is intended for applications in machine and plant control, particularly where safe shutdown is required in hazardous situations. It can be used as a safety door monitor to supervise access to hazardous areas. The application is in systems requiring high safety integrity, such as in manufacturing industry, presses, robotic systems, or packaging technology.

Functions and Equipment in Detail
The device supports single- or dual-channel wiring, allowing flexible integration into different safety architectures. LED indicators signal the status of the supply voltage and channels 1 and 2, enabling quick diagnosis of faults. A feedback circuit between terminals X3 and X4 allows monitoring of external contactors to ensure they are functioning correctly. Removable screw terminals facilitate installation and maintenance.

Technology Explained Simply
The safety relay meets the requirements of safety standards EN ISO 13849-1, IEC/EN 62061, and IEC/EN 61508. It complies with Performance Level (PL) e and Category 4 according to EN ISO 13849-1, representing the highest safety level for mechanical safety functions. The Safety Integrity Level (SIL) 3 according to IEC/EN 62061 and SIL 3 according to IEC/EN 61508 ensure high reliability in fault detection and prevention. The maximum thermal current is 10 A, defining the contact load capacity. The device includes overvoltage and short-circuit protection to prevent damage from electrical disturbances. Optionally gold-plated contacts allow switching of low loads, such as signals for PLC systems.

Compatibility and Accessories
The module is designed for use in industrial safety circuits and can be combined with other safety components, particularly in systems including emergency stop functions or safety door monitoring. The connection technology with removable screw terminals enables easy integration into existing control systems. Certifications TÜV, CCC, and UL-Recognized confirm compliance with international safety standards.

Mounting and Installation
Mounting is done in standard control panels with a width of 100 mm. Removable terminal strips simplify wiring and maintenance. The terminal assignment is detailed in the manufacturer’s datasheet. Installation requires adherence to safety instructions and intended use as described in the manufacturer’s documentation.

Advantages in Operation
The safety relay offers high reliability through compliance with the highest safety standards. LED indicators enable quick fault diagnosis. The option for single- or dual-channel wiring provides flexibility in system design. The integrated monitoring function for external contactors enhances system integrity. Gold-plated contacts ensure reliable switching even at low loads.

Technical data
1- / 2-channel1, 2
ApprovalsUL-Recognized
Cat. / PL acc. to EN ISO 13849-14/e
ConnectionPluggable screw terminals
Output contacts max.1 NC contact, 3 NO contacts
SIL CL acc. to IEC/EN 620613
SIL acc. to IEC/EN 620613
Thermal current Ith max.10 A
Width100 mm
TypeBN 5983
Suited as safety gate monitorYes
Variant
Contact equipping3 NO contacts, 1 NC contact
Nominal voltageDC 24 V
Approvals and MarkingsTÜV, CCC


Product data sheet
Datasheet for Dold 0032155, EAN: 4030641321550

Questions & answers

What is the delivery time of Dold 0032155 BN5983.53 DC24V emergency stop module ?

The article Dold 0032155 BN5983.53 DC24V emergency stop module is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0032155 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0032155 BN5983.53 DC24V emergency stop module always at the best possible price. We can give you a discount of 2% on Dold 0032155 BN5983.53 DC24V emergency stop module if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of Dold 0032155 BN5983.53 DC24V emergency stop module we can offer you a price of 446,30 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
