Dold 0031462 MK9961.35 AC 50/60 Hz 230 V 15–300 s time relay delayed reset

Your rating:
Average rating
product review for Dold 0031462 MK9961.35 AC 50/60 Hz 230 V 15–300 s time relay delayed reset
( 4.5 / 5 ) 11 ratings

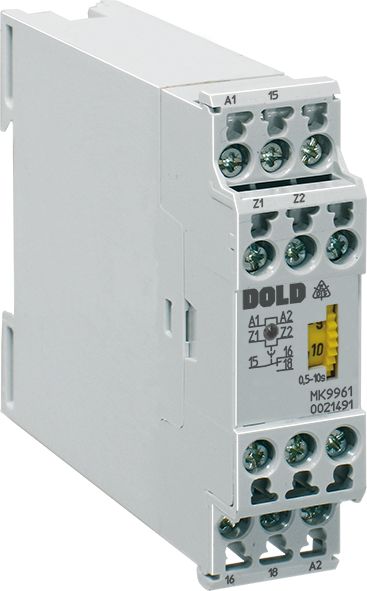

Dold 0031462
This image may differ from the desired article.
327,41 EUR
( 389,62 EUR incl. VAT )
≈ £274.04  |  ≈ $359.82
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0031462 MK9961.35 AC 50/60 Hz 230 V 15–300 s time relay delayed reset
Datasheet:file_download Download
Lieske Part No.:591066
Mfg Part No: 0031462
UPC/EAN: 4030641314620
Weight:0.16 kg
Type:MK9961.35 AC50/60HZ 230V 15-300S
Graduated prices net
From piecesPrice per pieces
4315,13 EUR
8302,85 EUR
12290,58 EUR
16278,30 EUR

Product information for Dold 0031462:

The Dold time relay MK9961.35 is a drop-out delayed industrial time relay, designed for use in time-dependent control systems without auxiliary voltage. It features a rated voltage of AC 230 V and an adjustable time range from 15 to 300 seconds. The width is 22.5 mm, enabling mounting on a DIN rail. The device is designed for use in enclosures and complies with standard EN 61812-1. The contact configuration includes one instantaneous closer and one delayed changeover contact, with the changeover contact serving as the output contact. The time function is drop-out delayed, meaning the contact returns to its initial position with a delay after the operating voltage is switched off.

Applications
This time relay is suitable for applications requiring delayed switching off, such as lighting control, machine control, or motor switching off after an operating cycle. The zero-voltage safety ensures that the relay does not switch unexpectedly even in case of short-term voltage failure. The repeatability is less than ±1 %, enabling high precision in repeated switching operations.

Functions and Equipment in Detail
Time adjustment is performed continuously on an absolute scale, with remote adjustment possible via an external variable resistor. This allows adjustment of the delay time from outside without opening the device. An LED indicator signals the presence of operating voltage. The contact materials consist of AgSnO₂ for the changeover contact and AgNi for the closer, ensuring high switching durability and corrosion resistance. The rated operating voltage is AC 250 V.

Technology Explained Simply
The relay operates with an electromechanical time function, where the delay is generated by an electrical resistor and capacitance in the internal circuit. The drop-out delay means that the contact does not immediately return to its initial position after switching off the operating voltage, but does so after a set delay time. The minimum switching-on time is 80 ms, ensuring the relay responds correctly even to short voltage pulses. Voltage influence values are below ±1.5 %, ensuring stable operation with slight fluctuations in supply voltage.

Compatibility and Accessories
The device can be actuated with two-wire initiators, enabling easy integration into existing control systems. For remote adjustment, various external variable resistors are available, selected according to the desired time range. The part numbers for accessories are listed in the datasheet, for example, a 20 MΩ resistor is used for the 300 s time range. Switching capacities according to AC 15 are 3 A at AC 230 V for the closer and 1 A at AC 230 V for the opener.

Mounting and Installation
Mounting is done on a DIN rail, with the width of 22.5 mm enabling compact placement in enclosures. The terminal clamps are designed for 2 x 1.5 mm² rigid or flexible conductors with heat-shrink tubing according to DIN 46228. Fixing is done via flat clamps with self-tightening clamp parts. The specified tightening torque is 0.4 Nm. The operating temperature range is between -20 °C and +60 °C, and the storage temperature range is also between -20 °C and +60 °C. The operating altitude is limited to a maximum of 2000 m above sea level.

Advantages in Operation
The combination of high repeatability, zero-voltage safety, and the possibility of remote adjustment makes the relay a reliable component in industrial control systems. The LED indicator facilitates diagnosis during operation, as the supply voltage can be visually checked. The mechanical life is 50 million switching operations, enabling long-term operation without maintenance. The electrical life is 300,000 switching operations at 3 A and AC 230 V. Switching capacities and thermal data are designed for use in industrial environments.

Approvals and Safety
The device is UL-approved and meets the requirements of overvoltage category III. The insulation test voltage is 2.5 kV for 1 minute. EMC requirements are met according to IEC/EN 61000-4-2 to -4-6, including protection against static discharges (8 kV) and fast transients (2 kV). Radio frequency interference suppression complies with emission limit class B according to EN 55011. The housing design is intended for use in enclosures, with protection rating IP 40 for the housing and IP 40 for the terminal clamps.

Technical data
ApprovalsUL
Enclosure designSwitch cabinet
Output contacts1 C/O contact
Time function(s)Off-delay, without control signal
Width22,5 mm
TypeMK 9961
Variant
Contact equipping1 NO contact undelayed, 1 changeover contact delayed
Nominal voltageAC 230 V
Time range15 - 300 s
VariantRelease delay, without control signal


Product data sheet
Datasheet for Dold 0031462, EAN: 4030641314620
