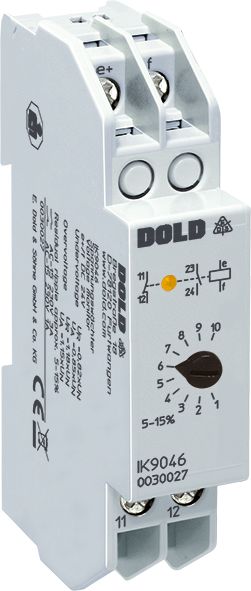

Dold 0030027 IK9046 DC24V voltage monitor

Your rating:
Average rating
product review for Dold 0030027 IK9046 DC24V voltage monitor
( 4.6 / 5 ) 7 ratings
Dold 0030027
This image may differ from the desired article.
Dold 0030027Dold 0030027
149,74 EUR
( 178,19 EUR incl. VAT )
≈ £125.33  |  ≈ $164.56
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0030027 IK9046 DC24V voltage monitor
Datasheet:file_download Download
Lieske Part No.:1312793
Mfg Part No: 0030027
UPC/EAN: 4030641300272
Weight:0.073 kg
Type:IK9046 DC24V
Graduated prices net
From piecesPrice per pieces
5144,12 EUR
10138,51 EUR
15132,89 EUR
20127,28 EUR

Product information for Dold 0030027:

The voltage monitor IK9046 DC24V from Dold is an industrial monitoring component for controlling direct current networks, particularly in installations with three-phase bridges, such as those used in the automotive industry or welding technology. The device monitors the supply voltage for under-voltage and over-voltage conditions as well as ripple voltage, enabling early detection of potential disturbances and thus increasing operational safety. The IK9046 variant features an adjustable ripple voltage trip point in the range of 5 to 15 %, allowing flexible adaptation to different network conditions. The nominal voltage is DC 24 V, with the device being continuously rated up to DC 33 V and capable of withstanding short-term higher voltages such as DC 35 V (0.5 s) or DC 45 V (10 ms). The response thresholds are set at 0.82 times nominal voltage for over-voltage and 1.18 times nominal voltage for under-voltage, with hysteresis below 4 % of nominal voltage.

Applications

The IK9046 is designed for use in industrial installations where stable direct current supply is critical. Typical application areas include control of PLC systems, power supply for welding equipment, or electrical supply in the automotive industry. Monitoring ripple voltage helps detect unwanted voltage fluctuations caused by insufficient smoothing or load variations. Early detection of such deviations enables preventive maintenance and prevents costly downtime.

Functions and Features in Detail

The device features contact configuration with one normally closed (1 NC) and one normally open (1 NO) contact, which can be used to control auxiliary functions or alarms. The contacts are rated for a thermal current of 4 A, with switching capacity according to AC 15: 3 A / AC 230 V for the normally open contact and 1 A / AC 230 V for the normally closed contact. The electrical life is 500,000 switching operations at 1 A and AC 230 V, while the mechanical life is 30 million switching operations. Maximum short-circuit withstand requires a fuse of 4 A gG / gL. Indication is provided by a yellow LED, which lights up when the network is fault-free.

Technology Explained Simply

The voltage monitor operates without auxiliary power, meaning it is directly connected to the voltage source to be monitored. The measuring and operating voltage is DC 24 V. The adjustable ripple voltage trip point allows the sensitivity of monitoring to be individually adjusted to match the specific requirements of the installation. The devices comply with IEC/EN 60255-1, ensuring adherence to standards for measuring and monitoring equipment in electrical engineering. The housing protection rating is IP 40, and the terminals are rated IP 40, providing protection against contact and ingress of solid foreign objects, but not against water or dust.

Compatibility and Accessories

The device is designed for mounting on a DIN rail (DIN-Rail) according to IEC/EN 60715 and can alternatively be screwed in place. The terminal connections are rated for conductor cross-sections of 2 x 2.5 mm² (solid) or 2 x 1.5 mm² (stranded wire with ferrule DIN 46228-1/-2/-3/-4), with a stripping length of 10 mm. The tightening torque is 0.8 Nm. The device dimensions are 17.5 mm (width) x 90 mm (height) x 58 mm (depth), with the width of 17.5 mm enabling installation in standard installation distributors.

Mounting and Installation

Mounting is simple on a DIN rail, with devices also able to be arranged in series. The terminals are equipped with self-lifting connection washers, enabling secure and quick connections. The operating temperature range is -20 °C to +70 °C, with storage temperature also within -20 °C to +70 °C. The operating altitude is limited to below 2000 m. The devices are vibration-resistant (amplitude 0.35 mm, frequency 10–55 Hz) and climate-resistant (25 / 070 / 04 according to IEC/EN 60068-1).

Operational Advantages

Continuous monitoring of voltage and ripple voltage increases the availability of the installation. Preventive maintenance allows faults to be identified and rectified early, before they lead to failures. The adjustable ripple voltage trip point provides flexibility in adapting to different network conditions. The clear indication via the yellow LED simplifies visual inspection of the operational status. Compliance with IEC/EN 60255-1 ensures reliability and interoperability in industrial environments.

Technical data
1- / 3-phase1
Auxiliary voltageWithout
Enclosure designDistribution board
Nominal voltage max.DC 24 V
Output contacts1 NC contact, 1 NO contact
Width17,5 mm
TypeIK 9046
Variant
Contact equipping1 NO contact, 1 NC contact
Nominal voltageDC 24 V
VariantFor monitoring direct current voltage supply systems and residual ripple. Adjustable setting value


Product data sheet
Datasheet for Dold 0030027, EAN: 4030641300272
