Dold 0029837 IK8813.81 AC 50/60 Hz 230 V 1–20 M energy-saving switch

Your rating:
Average rating
product review for Dold 0029837 IK8813.81 AC 50/60 Hz 230 V 1–20 M energy-saving switch
( 4.4 / 5 ) 8 ratings

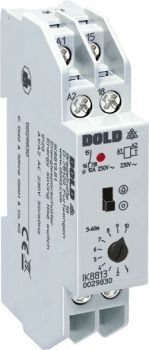

Dold 0029837
This image may differ from the desired article.
123,49 EUR
( 146,95 EUR incl. VAT )
≈ £103.36  |  ≈ $135.72
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0029837 IK8813.81 AC 50/60 Hz 230 V 1–20 M energy-saving switch
Datasheet:file_download Download
Lieske Part No.:728730
Mfg Part No: 0029837
UPC/EAN: 4030641298371
Weight:0.083 kg
Type:IK8813.81AC50/60HZ230V1-20M
Graduated prices net
From piecesPrice per pieces
5122,56 EUR
10121,64 EUR
15120,71 EUR
20119,79 EUR

Product information for Dold 0029837:

The energy-saving switch IK8813.81 from Dold is an electronic time relay for rail mounting, designed for the controlled switching off of lighting and electrical loads. The device features a contact configuration with one delayed changeover contact and is designed for a nominal voltage of AC 230 V at a frequency of 50/60 Hz. The time range is 1 to 20 minutes, with the operating time adjustable using a screwdriver. The function allows the connected load to be switched off before the set time has elapsed, which is useful in areas such as stairwells, garages, basements, or with fans and dryers, to save energy.

Applications
The switch is suitable for use in residential and commercial buildings, particularly where electrical loads are not switched off immediately after use. Typical applications include control of stairwell, courtyard, garden, garage, storage, and basement lighting, as well as fans and dryers. Controlled switching reduces unnecessary energy consumption without impairing the functionality of the system.

Functions and Equipment in Detail
The device is activated via a push-button, with control possible via a 3- or 4-wire connection. The push-button and the device must be connected to the same phase. The output contacts consist of a delayed changeover contact, which remains closed for the set duration after the push-button is activated. The LED indicator lights red when the output relay is activated (contacts 15–18 closed). The mechanical life expectancy exceeds 10⁶ switching operations, indicating high operational reliability.

Technology Explained Simply
The energy-saving switch is controlled by an electronic timing element that precisely measures the preset operating time. The repeatability accuracy is ±2 % of the scale end value, ensuring reliable and reproducible operation. The nominal power consumption is 5 VA (apparent power) and 0.3 W (active power). Short-circuit resistance is ensured by a maximum fuse rating of 10 A gG/gL according to IEC/EN 60947-5-1. The operating temperature range is from -20 °C to +45 °C, with storage temperature up to +60 °C. The operating altitude is limited to below 2000 m.

Compatibility and Accessories
The IK8813.81 is designed for mounting on a DIN rail and has a width of 17.5 mm. The depth is 58 mm. The switching capacity for lamp loads includes up to 20 fluorescent lamps at 58 W each (Duo circuit, series-compensated) and an incandescent lamp load of 1200 W. As an accessory, the OA 8823 is available, designed for installation in flush-mounted boxes and also equipped with a delayed closing contact. Terminal marking follows EN 50005.

Mounting and Installation
Mounting is on a DIN rail, taking into account the width of 17.5 mm and depth of 58 mm. Control is via a push-button connected using a 3- or 4-wire connection. The LED indicator provides visual feedback on the contact position. The switching designation is indicated via terminals A1, A2, T, 15, 16, 18.

Operational Advantages
The switch enables targeted energy savings, as loads are automatically switched off after a defined time. The ability to switch off the device before the time elapses offers additional flexibility. The switching capacity for incandescent lamps (1200 W) and fluorescent lamps (20 lamps at 58 W each) is sufficient for typical applications. The protection rating IP 40 (housing) and IP 40 (terminals) according to IEC/EN 60529 ensures adequate protection against contact and foreign objects. Compliance with standards EN 60 669-1 and EN 60 669-2-1 ensures electrical safety and reliability.

Thermal Current Ith
The thermal current is 10 A, indicating the maximum current load the device can handle. This value is critical for selecting the permissible load and dimensioning the fuse. Short-circuit resistance is ensured by the maximum fuse rating of 10 A gG/gL according to IEC/EN 60947-5-1.

Protection Rating and Environmental Conditions
The protection rating IP 40 for the housing and IP 40 for the terminals protects against finger contact and ingress of solid foreign objects. The device is suitable for indoor use, as it is not designed for outdoor applications. The operating temperature range of -20 °C to +45 °C and storage temperature up to +60 °C allow flexible installation in various environments.

EMC and Approvals
The device meets the requirements of the EMC Directive with interference voltage class B according to EN 55011. Immunity to static discharges (8 kV), high-frequency radiation (10 V/m), fast transients (2 kV), and surge voltages (2 kV between lines, 4 kV between line and earth) is tested according to IEC/EN 61000-4-2 to -4-5. The rated surge voltage is 4 kV at pollution degree 2 according to IEC 60664-1.

Vibration Resistance and Climatic Resistance
Vibration resistance is specified with an amplitude of 0.35 mm and a frequency of 10 to 55 Hz according to IEC/EN 60068-2-6. Climatic resistance is defined according to IEC/EN 60068-1 with designation 20/045/04, indicating high resistance to temperature and humidity fluctuations.

Materials and Design
The housing is made of thermoplastic with V0 behaviour according to UL Subject 94, ensuring good flame resistance. The design is intended for rail mounting, with a width of 17.5 mm and depth of 58 mm enabling installation in standard switchboards.

Connection Terminals and Signal Description
The connection terminals are marked according to EN 50005: A1 (L), A2 (N), T (control input for push-button), 15, 16, 18 (delayed contact output). The LED indicator lights red when the output relay is activated (contacts 15–18 closed). The signal description is detailed in the datasheet.

Approvals and Standards
The device complies with standards EN 60 669-1 and EN 60 669-2-1, which apply to electrical switches and switching devices. Approvals include EMC requirements, electrical safety, and operational safety. Compliance with these standards ensures reliability and safety in operation.

Practical Application
The IK8813.81 is particularly suitable for applications where automatic switching off after a defined time is beneficial, without requiring active user intervention. The combination of energy savings, reliability, and easy handling makes it a practical solution for many electrical installations in residential and commercial buildings.

Technical data
Depth58 mm
Output contacts max.1 C/O contact
Thermal current Ith10 A
Width17,5 mm
TypeIK 8813
Cutoff-before-time capabilityYes
Variant
Contact equipping1 changeover contact, delayed
Nominal voltageAC 230 V
Time range1 - 20 min


Product data sheet
Datasheet for Dold 0029837, EAN: 4030641298371

Questions & answers

What is the delivery time of Dold 0029837 IK8813.81 AC 50/60 Hz 230 V 1–20 M energy-saving switch ?

The article Dold 0029837 IK8813.81 AC 50/60 Hz 230 V 1–20 M energy-saving switch is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0029837 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0029837 IK8813.81 AC 50/60 Hz 230 V 1–20 M energy-saving switch always at the best possible price. We can give you a discount of 2% on Dold 0029837 IK8813.81 AC 50/60 Hz 230 V 1–20 M energy-saving switch if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Dold 0029837 IK8813.81 AC 50/60 Hz 230 V 1–20 M energy-saving switch we can offer you a price of 122,56 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
