Dold 0028829 BA9038.11/003 AC 50/60 Hz 230 V thermistor motor protection relay

Your rating:
Average rating
product review for Dold 0028829 BA9038.11/003 AC 50/60 Hz 230 V thermistor motor protection relay
( 4.4 / 5 ) 14 ratings

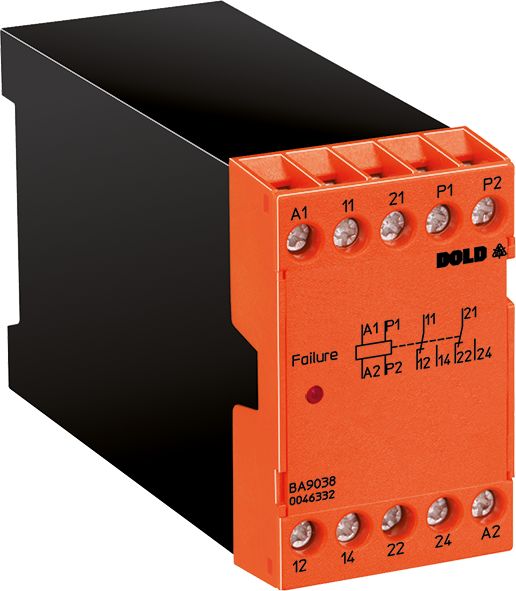

Dold 0028829
This image may differ from the desired article.
178,75 EUR
( 212,71 EUR incl. VAT )
≈ £149.61  |  ≈ $196.45
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0028829 BA9038.11/003 AC 50/60 Hz 230 V thermistor motor protection relay
Datasheet:file_download Download
Lieske Part No.:1313000
Mfg Part No: 0028829
UPC/EAN: 4030641288297
Weight:0.28 kg
Type:BA9038.11/003 AC50/60HZ 230V
Graduated prices net
From piecesPrice per pieces
5176,07 EUR
10173,39 EUR
15170,71 EUR
20168,02 EUR

Product information for Dold 0028829:

The Thermistor motor protection relay BA 9038 from Dold, type BA9038.11/003 AC50/60HZ 230V, is designed for protecting electric motors against thermal overloads. It monitors motor temperature to prevent damage caused by high switching frequency, heavy start-up, single-phasing, impaired cooling, or high ambient temperature. Additionally, it is suitable for temperature monitoring of bearings, gearboxes, oils, and coolants. The device operates on the principle of rest current, where the output relay is not activated in the event of a fault, ensuring a safe and reliable response.

Applications
This motor protection relay is intended for use in enclosures and is suitable for industrial applications requiring precise temperature monitoring. It can be used in combination with up to six thermistors (PTC resistors) connected in series. The number of connected sensors affects the overall resistance detection, with the trip threshold set at a resistance of at least 3 kΩ. The reset threshold is a maximum of 1.8 kΩ. The connecting wires between the thermistors and terminals P1/P2 must not be influenced by external voltages and should therefore be routed in a separate cable; the total resistance of the wiring must not exceed 100 Ω.

Functions and Features in Detail
The device includes a thermal-mechanical re-energizing lockout (reset function) that is activated after tripping due to reaching the trip temperature. Once the output relay drops out, a button on the front panel pops out, triggering the lockout. This lockout is voltage-loss-safe, meaning it remains active even after a power failure. The relay can only be reset manually by pressing the button to return it to the monitoring position. The BA 9038.11/003 version does not include an indicator LED. The auxiliary voltage is AC 230 V, and the contact configuration includes one changeover contact. The width is 45 mm, enabling compact mounting in standard enclosures.

Technology Explained Simply
The relay monitors the resistance of the connected thermistors. When the trip threshold (≥ 3 kΩ) is reached, the output relay drops out, causing the motor supply to be disconnected. The reset delay is a maximum of 15 ms, and the trip delay is a maximum of 20 ms. The wire break detection in the sensor circuit ensures that a broken sensor or faulty connection is detected, preventing false alarms. The function is based on a rest current principle, where the output relay is activated during normal operation and deactivated in the event of a fault.

Compatibility and Accessories
The motor protection relay is designed for use with specific PTC resistors (positive temperature coefficient resistors) integrated into the motor windings. It is compatible with an auxiliary voltage of AC 230 V and can be mounted in enclosures. Terminal markings include A1/A2 for auxiliary voltage, P1/P2 for the input, and contacts 11-14 and 21-24 for relay outputs. The standard IEC/EN 60947-8 is complied with, ensuring adherence to safety and functional requirements for motor protection devices.

Mounting and Installation
Mounting is carried out in an enclosure, with the 45 mm width enabling standard installation. The connection terminals are clearly labeled, with auxiliary voltage connected to A1/A2 and the input to P1/P2. The thermistors are wired in series, ensuring that the total wire resistance does not exceed the specified limits. Cable routing should be arranged to avoid any external voltages influencing the measurement.

Advantages in Operation
The BA 9038 provides reliable temperature monitoring with integrated wire break detection and a voltage-loss-safe re-energizing lockout. Its compact design and compliance with IEC/EN 60947-8 make it a robust and safe device for industrial applications. The manual reset function ensures that operation can only be resumed after manual confirmation, enhancing safety. The BA 9038.11/003 version is specifically designed for applications requiring a mechanical lockout after tripping, without additional indicator LEDs.

Technical data
ClassificationThermistor-Motorschutz
Enclosure designSwitch cabinet
Measuring range max.> 3 kΩ
Output contacts1 C/O contact, 2 C/O contacts
Width45 mm
TypeBA 9038
Variant
Auxiliary voltageAC 230 V
Contact equipping1 changeover contact
VariantWith thermal magnetic reclosing interlock (manual reset function)


Product data sheet
Datasheet for Dold 0028829, EAN: 4030641288297

Questions & answers

What is the delivery time of Dold 0028829 BA9038.11/003 AC 50/60 Hz 230 V thermistor motor protection relay ?

The article Dold 0028829 BA9038.11/003 AC 50/60 Hz 230 V thermistor motor protection relay is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0028829 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0028829 BA9038.11/003 AC 50/60 Hz 230 V thermistor motor protection relay always at the best possible price. We can give you a discount of 2% on Dold 0028829 BA9038.11/003 AC 50/60 Hz 230 V thermistor motor protection relay if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Dold 0028829 BA9038.11/003 AC 50/60 Hz 230 V thermistor motor protection relay we can offer you a price of 176,07 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
