Dold 0028741 BA9039.12/100 AC 50/60 Hz 220–240 V thermistor motor protection relay

Your rating:
Average rating
product review for Dold 0028741 BA9039.12/100 AC 50/60 Hz 220–240 V thermistor motor protection relay
( 4.4 / 5 ) 41 ratings
Dold 0028741
This image may differ from the desired article.
239,87 EUR
( 285,45 EUR incl. VAT )
≈ £200.77  |  ≈ $263.62
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0028741 BA9039.12/100 AC 50/60 Hz 220–240 V thermistor motor protection relay
Datasheet:file_download Download
Lieske Part No.:155127
Mfg Part No: 0028741
UPC/EAN: 4030641287412
Weight:0.33 kg
Type:BA9039.12/100 AC50/60HZ 230V
Graduated prices net
From piecesPrice per pieces
5236,27 EUR
10232,67 EUR
15229,08 EUR
20225,48 EUR

Product information for Dold 0028741:

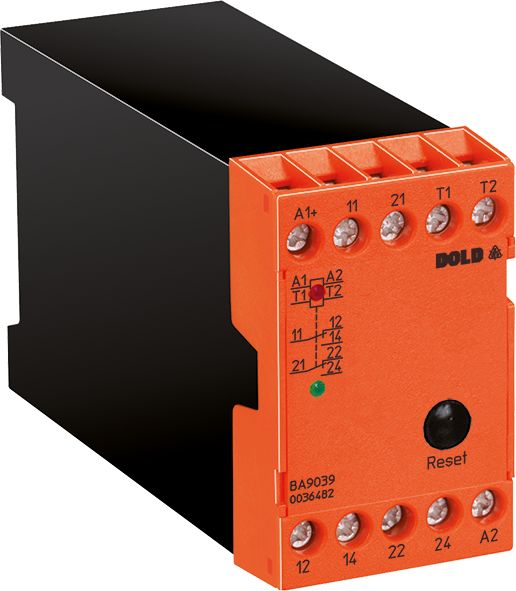

The Dold motor protection relay BA9039.12/100 AC50/60HZ 220-240V is a thermistor-based motor protection device designed to prevent thermal overloads in electric motors. It monitors motor temperature via integrated thermistors and protects against damage caused by high switching frequency, heavy start-up, single-phasing, impaired cooling, or high ambient temperature. The device is designed for use in enclosures and is mounted on a DIN rail. It has a width of 45 mm and is specified according to DIN VDE 0660 Part 302 (pr EN 60 947-8) and Part 303.

Applications
This relay is suitable for use in industrial plants and machinery where motor protection via temperature monitoring is required. It can be connected to motors equipped with one or more thermistors, with up to six temperature sensors connectable in parallel. Its application is particularly relevant in environments where motor damage due to thermal stress must be avoided.

Functions and Features in Detail
The device features an input for thermistors and detects wire breaks and short circuits in the measurement circuit. It operates on the principle of rest current, meaning the output relay de-energizes in the event of a fault, ensuring safe disconnection. The output contact configuration includes two changeover contacts, which can be used to control auxiliary circuits. A green LED indicates a fault-free state, while a red LED indicates operational status. The BA9039.12/100 variant is equipped with an electromechanical re-energizing lockout that is voltage-loss-proof. This means the state after a power failure is retained, and re-energizing can only be performed via the reset button.

Technology Explained Simply
Temperature monitoring is performed via a measurement circuit that detects resistance up to 3 kΩ. The pickup value is 3 kΩ ± 500 Ω, and the drop-out value is 1.8 kΩ ± 200 Ω. The measurement circuit load is less than 3 mW at a resistance of 1.5 kΩ, and the measurement voltage is 2 V. The auxiliary voltage is AC 220–240 V, with a nominal frequency of 50/60 Hz. The device consumes 4 VA under AC operation. The output contacts are rated for a thermal current of 5 A. The switching capacity is 3 A / AC 230 V (for make contacts) and 1 A / AC 230 V (for break contacts) under AC 15. For DC 13, it is 1 A / DC 24 V. The electrical life is 8 x 10⁵ switching operations at 3 A, AC 230 V. The mechanical life is 30 x 10⁶ switching operations. The maximum short-circuit withstand requires a fuse of 4 A gG / gL.

Compatibility and Accessories
The device is designed for use with thermistors integrated into motors. It can operate with up to six thermistors connected in parallel. The terminal clamps are rated for conductor cross-sections of 2 x 2.5 mm² (solid) or 2 x 1.5 mm² (stranded wire with ferrule DIN 46228-1/-2/-3/-4). The terminals are equipped with self-lifting connection washers and require a maximum tightening torque of 0.8 Nm. Mounting is done on a DIN rail according to IEC/EN 60715.

Mounting and Installation
Mounting is performed in enclosures on a DIN rail. The terminal clamps are designed for connection with solid or stranded conductors. The stripping length is 10 mm. The terminals are fitted with M3.5 plus-minus screws to ensure a secure connection. Electrical connections are made via terminals A1/A2 (auxiliary voltage) and P1/P2 (measurement circuit). The output contacts 11-12-14 and 21-22-24 are used to control auxiliary circuits.

Operational Advantages
The relay provides reliable temperature monitoring and protects motors from thermal damage. The re-energizing lockout prevents unintended restarts after a fault, enhancing safety. Voltage-loss-proof operation ensures the state is retained after a power failure. LED indicators allow for quick visual status monitoring. The compact design with a width of 45 mm enables efficient space utilization in enclosures.

Protection Rating and Environmental Conditions
The housing has a protection rating of IP 40, and the terminals are rated IP 40. The device is designed for an operating temperature range of -20 °C to 60 °C and can be used up to an altitude of 2000 m. The climatic resistance is rated 20 / 060 / 04 according to IEC/EN 60068-1. The housing is made of thermoplastic with V0 flammability rating according to UL Subject 94. The vibration resistance is 0.35 mm amplitude at a frequency of 10 to 55 Hz.

EMC and Approvals
The device complies with the requirements of the EMC Directive. The immunity is 8 kV for electrostatic discharge (ESD), 10 V/m for high-frequency radiation (80 MHz to 2.7 GHz), 2 kV for fast transients, and 1 kV for surge voltage between supply lines. The radio frequency interference suppression conforms to Class B limits according to EN 55011. The rated impulse voltage is 4 kV at pollution degree 2 according to IEC/EN 60664-1.

Technical data
ClassificationThermistor-Motorschutz
Enclosure designSwitch cabinet
Measuring range max.> 3 kΩ
Output contacts2 C/O contacts
Width45 mm
TypeBA 9039
Variant
Auxiliary voltageAC 220 - 240 V
Contact equipping2 changeover contacts
VariantWith electromechanical reset facility. No-voltage safe


Product data sheet
Datasheet for Dold 0028741, EAN: 4030641287412
