Dold 0028395 BA9043/002 3/N AC50-400Hz 57/100V undervoltage relay 0.5-10S

Your rating:
Average rating
product review for Dold 0028395 BA9043/002 3/N AC50-400Hz 57/100V undervoltage relay 0.5-10S
( 4.7 / 5 ) 16 ratings
Dold 0028395
This image may differ from the desired article.

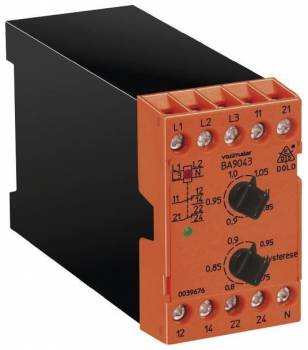

Dold 0028395Dold 0028395
302,01 EUR
( 359,39 EUR incl. VAT )
≈ £252.78  |  ≈ $331.91
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0028395 BA9043/002 3/N AC50-400Hz 57/100V undervoltage relay 0.5-10S
Datasheet:file_download Download
Lieske Part No.:1312998
Mfg Part No: 0028395
UPC/EAN: 4030641283957
Weight:0.34 kg
Type:BA9043/002 3AC50/60HZ 57/100V 10S
Graduated prices net
From piecesPrice per pieces
4290,68 EUR
8279,36 EUR
12268,03 EUR
16256,71 EUR

Product information for Dold 0028395:

The under-voltage relay BA9043/002 from Dold is an industrial device for monitoring 3-phase AC networks. It provides continuous monitoring of the supply voltage and automatically disconnects connected loads in case of under-voltage or voltage loss, preventing damage to connected equipment. The device is specifically designed for three-phase networks with a neutral conductor and features an adjustable time delay from 0.5 to 10 seconds, which becomes active at voltages below 0.6 times the nominal voltage. Below 0.4 times the nominal voltage, the reset occurs immediately. The nominal voltage is 3/N AC 57/100 V, and the device is also suitable for higher voltages up to 3/N AC 690/400 V. Measurement is performed via arithmetic mean calculation, with each phase measured against the neutral conductor. Device settings are adjusted via rotary potentiometers on the front panel, allowing continuous adjustment of pickup and reset values between 0.85 and 1.05 times nominal voltage, with a hysteresis range of 0.75 to 0.95 of the pickup value.

Applications
This relay is designed for use in industrial and railway applications where reliable voltage monitoring is required. It is suitable for networks with frequencies from 50 to 400 Hz and is designed for continuous operation. The operating temperature range is from -20 °C to +60 °C, and the storage temperature range is from -25 °C to +60 °C. The maximum operating altitude is 2000 m above sea level. The devices are intended for use in enclosures and comply with the standard IEC/EN 60255-1.

Functions and Equipment in Detail
The BA9043/002 features two changeover contacts as output contacts, designed for switching operations with a thermal current of up to 6 A per contact. The switching capacity corresponds to standard AC 15, allowing closers up to 3 A at AC 230 V and openers up to 1 A at AC 230 V. The electrical life expectancy is at least 200,000 switching cycles at 3 A and AC 230 V, while the mechanical life expectancy exceeds 30 million switching cycles. The contacts are equipped with LED indicators for operational readiness (red LED) and contact position (green LED). The device operates on the principle of rest current, meaning the output relay is not activated in the event of a fault, ensuring safe disconnection.

Technology Explained Simply
Voltage monitoring is performed by measuring each phase against the neutral conductor, with the arithmetic mean of the voltage being calculated. This enables precise and reliable monitoring even in unbalanced networks. The time delay is designed to ignore short-term voltage dips that do not pose a risk and to respond only to sustained under-voltage conditions. Adjustment of pickup and reset values is done via rotary potentiometers, allowing individual adaptation to specific applications. The immunity to harmonics ensures that the device does not falsely trigger during network disturbances caused by harmonic overvoltages.

Compatibility and Accessories
The device is available for networks with or without a neutral conductor, with the BA9043/002 variant specifically designed for systems with a neutral conductor. It has a width of 45 mm for mounting on DIN rail. The terminals are designed for 2 x 2.5 mm² rigid or 2 x 1.5 mm² flexible conductors with tube screw terminals. The maximum overload capacity is 1.2 times nominal voltage continuously. The UKCA and CCC certifications are available for this variant.

Mounting and Installation
Mounting is on DIN rail according to IEC/EN 60715. The connection terminals are designed for use with rigid or flexible conductors, with specified dimensions and tightening torque (0.8 Nm). The device front panel features two rotary potentiometers for setting pickup and reset values, which are user-friendly and easily accessible.

Operational Advantages
Precise voltage monitoring and adjustable time delay increase the reliability of connected systems. The LED indicators allow for quick fault localization. Immunity to harmonics and the long life of contacts ensure long operational life and reduce maintenance costs. The rest current principle prevents unwanted switching operations in the event of a fault and increases system safety. Compliance with the standard IEC/EN 60255-1 ensures conformity with international standards.

Technical data
1- / 3-phase3
Auxiliary voltageWithout
Enclosure designSwitch cabinet
Nominal voltage max.3/N AC 690 / 400 V
Output contacts2 C/O contacts
Width45 mm
TypeBA 9043
Operate delayYes
Variant
Contact equipping2 changeover contacts
Nominal voltage3/N 57/100 V
Time delay0,5 - 10 s
Approvals and MarkingsUKCA, CCC
VariantFor 3p4w systems. With adjustable time delay


Product data sheet
Datasheet for Dold 0028395, EAN: 4030641283957
