Dold 0028134 AD5960 AC/DC230V US230V fault detection relay

Your rating:
Average rating
product review for Dold 0028134 AD5960 AC/DC230V US230V fault detection relay
( 4.6 / 5 ) 29 ratings
Dold 0028134
This image may differ from the desired article.
Dold 0028134Dold 0028134
337,41 EUR
( 401,52 EUR incl. VAT )
≈ £282.41  |  ≈ $370.81
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0028134 AD5960 AC/DC230V US230V fault detection relay
Datasheet:file_download Download
Lieske Part No.:806950
Mfg Part No: 0028134
UPC/EAN: 4030641281342
Weight:0.225 kg
Type:AD5960 AC/DC230V US230V
Graduated prices net
From piecesPrice per pieces
4324,76 EUR
8312,10 EUR
12299,45 EUR
16286,80 EUR

Product information for Dold 0028134:

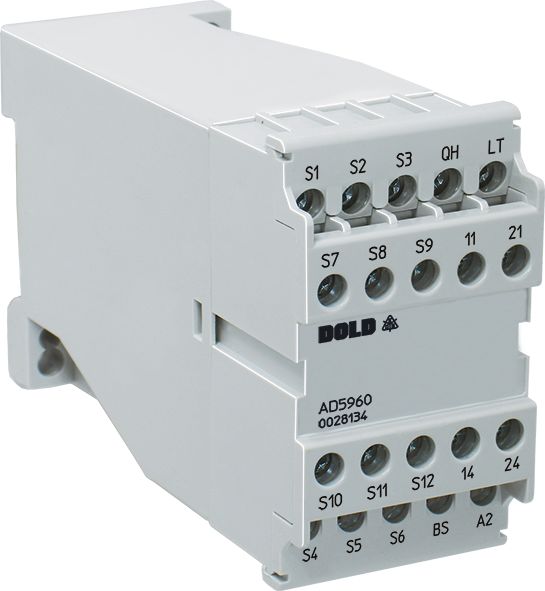

The Dold fault alarm relay AD5960 AC/DC230V US230V (manufacturer's number 0028134) is an industrial fault alarm unit for monitoring industrial plants and buildings. It is designed for central detection and indication of up to 12 fault alarms and enables visual and acoustic signaling of errors. The device is designed for use in enclosures and is mounted on a DIN rail. It operates on the operating current principle, where fault alarm inputs are activated by current flow, and has a width of 45 mm, making it suitable for standard enclosure mounting.

Applications
This device is intended for monitoring technical installations in industrial environments as well as in buildings where central fault indication is required. It is suitable, for example, for monitoring machines, drives, air conditioning systems, or security systems. The 12 fault alarm inputs can each be operated with a voltage of AC/DC 230 V, with all inputs and the lamp test input LT needing to be supplied with the same phase voltage to avoid damage to the device. The use of lamp transformers is not intended; for applications with different voltages for indicator lamps and inputs, other models such as AN 5969 or EP 9969 are recommended.

Functions and Equipment in Detail
The AD5960 features two relay outputs: one for the collective alarm and one for the audible alarm. Each output is equipped with a normally open contact that closes when a fault occurs. Visual indication is provided by an LED, which shows the fault status. An optional alarm sounder can be connected to generate acoustic signals. Acknowledging the audible alarm is done via a push-button connection, which is operated by an external switch. Another push-button connection is used for lamp testing, requiring a minimum actuation time of 2 seconds to test the indicator lamp.

Technology Explained Simply
The device operates on the operating current principle, meaning that the fault alarm inputs are activated by current flow. The response time of the relay for the audible alarm is approximately 20 ms, while the reset time (minimum time between fault and acknowledgment) is approximately 5 seconds. The response time of the collective alarm relay is up to 1 second. The fault alarm inputs must be connected for at least 60 ms to ensure reliable switching. The switching capacity is AC 250 V / 5 A, with the load capacity per external indicator lamp being 1 A, although the total load must not exceed 5 A. The thermal current rating (Ith) is 8 A.

Compatibility and Accessories
The fault alarm inputs are designed for voltages up to AC/DC 230 V. The auxiliary voltage (supply voltage) is also AC/DC 230 V. The terminals are designed for conductor cross-sections of 2 x 2.5 mm² (solid) or 2 x 1.5 mm² (stranded wire with sleeve according to DIN 46228). Mounting is done on a DIN rail (IEC/EN 60715). The device is designed for continuous operation and can be operated in a temperature range from -20 °C to +60 °C. The enclosure protection rating is IP 40, and the terminals are IP 40. The enclosure materials consist of thermoplastic with V0 behavior according to UL Subject 94.

Mounting and Installation
Mounting is done on a DIN rail inside the enclosure. The connection terminals are flat and feature a self-lifting connection washer, ensuring a secure connection. Wire connections are made according to EN 50005. Inputs S1 to S12 and the lamp test input LT must be supplied with the same phase voltage to avoid damage to the device. During transport vibrations, the relay contacts may shift; this is typical for bistable relays. A brief activation of any fault alarm input with the supply voltage will reset the contacts to the correct position.

Advantages in Operation
The AD5960 provides a clear, central fault indication for up to 12 alarms. The combination of visual LED indication and optional acoustic signaling enables quick response to faults. The robust construction with IP 40 protection rating and vibration test according to IEC/EN 60068-2-6 makes it suitable for industrial environments. Simple DIN rail mounting and clear terminal labeling facilitate installation. Operational reliability is ensured by the minimum response time of 60 ms and the reset time of 5 seconds.

Technical data
Alarm inputs12
Enclosure designSwitch cabinet
Operating principleEnergized on trip
Optical signalLED
Width45 mm
TypeAD 5960
Optional buzzerYes
Variant
Contact equipping2 x 1 NO contact
Nominal voltageAC/DC 230 V
Signal voltage230 V


Product data sheet
Datasheet for Dold 0028134, EAN: 4030641281342
