Dold 0028018 AD5960 AC/DC24V US24V fault detection relay

Your rating:
Average rating
product review for Dold 0028018 AD5960 AC/DC24V US24V fault detection relay
( 4.3 / 5 ) 26 ratings

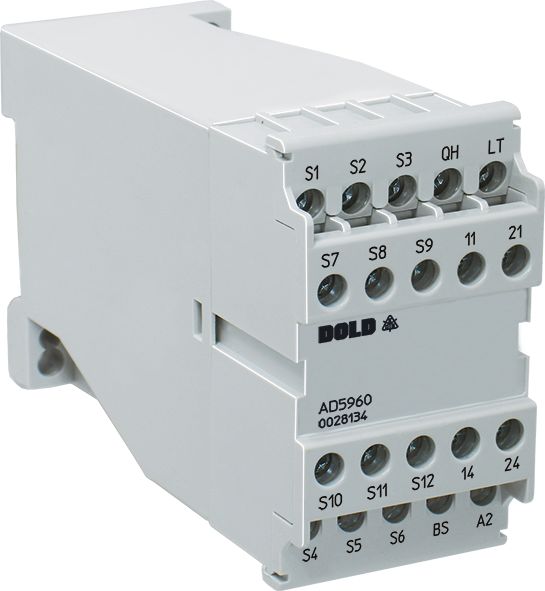

Dold 0028018
This image may differ from the desired article.
Dold 0028018Dold 0028018
337,41 EUR
( 401,52 EUR incl. VAT )
≈ £282.41  |  ≈ $370.81
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0028018 AD5960 AC/DC24V US24V fault detection relay
Datasheet:file_download Download
Lieske Part No.:315226
Mfg Part No: 0028018
UPC/EAN: 4030641280185
Weight:0.225 kg
Type:AD5960 AC/DC24V US24V
Graduated prices net
From piecesPrice per pieces
4332,35 EUR
8327,29 EUR
12322,23 EUR
16317,17 EUR

Product information for Dold 0028018:

The Dold AD5960 AC/DC24V US24V is a fault alarm collector for monitoring industrial plants and buildings. It is designed for central detection and indication of up to 12 fault alarms and features two relay outputs – one for the collective alarm and one for the audible alarm. The device operates on the current flow principle, where the relay contacts only activate when the current flow is interrupted (e.g., due to a defective sensor). The rated voltage is AC/DC 24 V, with a voltage range coverage of 0.8 to 1.1 times the rated voltage, allowing flexible adaptation to minor fluctuations. The width of 45 mm makes it compatible with standard enclosure top rail (IEC/EN 60715) and enables compact installation in existing control systems.

Applications
This fault alarm device is intended for monitoring technical systems in industrial and commercial environments. It is suitable for detecting faults in machines, drives, pumps, heating or air conditioning systems, where central alarm indication via multiple inputs is required. The device is installed in enclosures, mounted on a top rail. The temperature resistance of -20 °C to +60 °C ensures reliable operation under various environmental conditions. The protection rating IP 40 for the housing and IP 20 for the terminals protects against contact with conductive objects and splashing water, but not against direct rain or condensation – thus, the device is designed for indoor installations.

Functions and Equipment in Detail
The device features 12 fault alarm inputs, which can be operated with voltages up to AC/DC 230 V. The inputs are designed to handle a current of 440 mA (at 24 V) to 150 mA (at 230 V) each. The response time of the relay for the audible alarm is approximately 20 ms, while the collective alarm relay response time is ≤ 1 s. The reset time for the audible alarm is approximately 5 s, defining the minimum time between fault occurrence and acknowledgment. For visual indication, an LED is integrated, which lights up when triggered. An optional alarm sounder (e.g., a piezo horn) can be connected. Additionally, there is a push-button connection for horn reset and one for lamp test, with the lamp test input capable of handling a load of up to 5.3 A (at 24 V). The contact configuration includes 1 normally closed contact each for collective alarm and audible alarm, with a switching capacity of AC 250 V / 5 A. The load capacity per external alarm lamp is 1 A, with a maximum total of 5 A.

Technology Explained Simply
The current flow principle means that the relays are energized during normal operation and keep the contacts closed. When the input voltage fails (e.g., due to a defective sensor), the current flow is interrupted, causing the relay to activate and open the contacts, thereby triggering the alarm. The inputs must be operated with the same phase voltage; otherwise, the device may be damaged. The terminals are designed for conductor cross-sections of 2 x 2.5 mm² solid or 2 x 1.5 mm² stranded wire with sleeve (DIN 46228). Mounting is done via a top rail, with flat terminals featuring self-lifting connection inserts (IEC/EN 60999-1) ensuring a secure connection.

Compatibility and Accessories
The device is designed for use with external alarm lamps and an optional alarm sounder. However, it is not suitable for lamp transformers. For applications where the alarm lamps are to be operated at a different voltage than the fault alarm inputs, the manufacturer recommends models AN 5969 or EP 9969, which feature relay outputs. The fault alarm inputs and the lamp test input must be operated with the same phase voltage to avoid damaging the device.

Mounting and Installation
Mounting is done via a top rail in the enclosure. The terminals are designed for connection with solid or stranded conductors. The terminal markings follow the standard EN 50005. During transport or storage, vibrations may cause incorrect relay contact positions. This can be corrected by briefly applying the supply voltage to any fault alarm input. The actuation time for the lamp test input must be at least 2 s to ensure reliable indication.

Operational Advantages
The device enables central monitoring of up to 12 fault sources with minimal space requirement (45 mm width). The clear visual and audible alarm indication (LED and optional alarm sounder) ensures rapid detection of faults. The robust construction with a thermoplastic housing (V0 rating per UL 94) and vibration resistance (amplitude 0.35 mm, frequency 10–55 Hz) ensures reliable performance even under industrial conditions. EMC testing according to IEC/EN 61000-4-3, -4-4 and -4-5, as well as radio frequency interference suppression to Class B (EN 55011), ensures electromagnetic compatibility and immunity to interference. Batteries are not included in the delivery scope.

Technical data
Alarm inputs12
Enclosure designSwitch cabinet
Operating principleEnergized on trip
Optical signalLED
Width45 mm
TypeAD 5960
Optional buzzerYes
Variant
Contact equipping2 x 1 NO contact
Nominal voltageAC/DC 24 V
Signal voltage24 V


Product data sheet
Datasheet for Dold 0028018, EAN: 4030641280185
