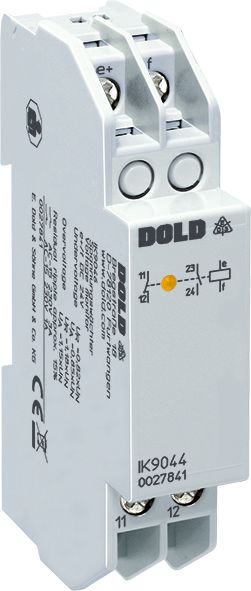

Dold 0027841 IK9044 DC24V voltage monitor

Your rating:
Average rating
product review for Dold 0027841 IK9044 DC24V voltage monitor
( 4.6 / 5 ) 8 ratings
Dold 0027841
This image may differ from the desired article.
128,34 EUR
( 152,72 EUR incl. VAT )
≈ £107.42  |  ≈ $141.05
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0027841 IK9044 DC24V voltage monitor
Datasheet:file_download Download
Lieske Part No.:1312794
Mfg Part No: 0027841
UPC/EAN: 4030641278410
Weight:0.123 kg
Type:IK9044 DC24V
Graduated prices net
From piecesPrice per pieces
5123,53 EUR
10118,71 EUR
15113,90 EUR
20109,09 EUR

Product information for Dold 0027841:

The voltage monitor IK9044 DC24V from Dold is a device for monitoring DC power supplies, particularly in applications such as the automotive industry, welding technology, or the power supply of PLC systems with three-phase bridges. The device monitors the supply voltage for under-voltage and over-voltage conditions as well as for ripple content, enabling early detection of potential failures and thus increasing the operational safety and availability of the system. It is designed for a nominal voltage of DC 24 V and features a fixed threshold setting for ripple monitoring at approximately 15 %. The output contacts consist of one normally closed (NC) and one normally open (NO) contact, which can be used to control auxiliary functions or alarms.

Applications

The IK9044 is specifically designed for monitoring DC power supplies used in industrial environments. Typical applications include power supply for control devices, such as programmable logic controllers (PLC), or in systems operating with three-phase bridges. Monitoring ripple content is particularly important to ensure the quality of the DC voltage, which is essential for sensitive electronic components. The device is designed for use in installation distributors and is suitable for systems requiring high operational safety and preventive maintenance.

Functions and Equipment in Detail

The device detects under-voltage when the voltage drops below 0.82 times the nominal voltage (DC 24 V) and over-voltage when it exceeds 1.18 times the nominal voltage. The hysteresis is less than 4 % of the nominal voltage, ensuring precise and reliable switching performance. Ripple monitoring is triggered at approximately 15 %, with this value being fixed. The output contacts are configured as 1 NC and 1 NO contact, with the NO contact having a switching capacity of 3 A at AC 230 V and the NC contact 1 A at AC 230 V. The electrical life expectancy is 500,000 switching cycles at 1 A and AC 230 V, while the mechanical life expectancy is 30 million switching cycles.

Technology Explained Simply

The voltage monitor operates without auxiliary power and is directly connected to the DC power supply to be monitored. The nominal voltage is DC 24 V, with the device capable of withstanding short-term overloads up to DC 35 V (0.5 s) and DC 45 V (10 ms). The nominal power consumption is 0.6 W. Indication is provided by a yellow LED, which lights up when the supply is fault-free. The terminals are designed for a cross-section of 2 x 2.5 mm² (solid) or 2 x 1.5 mm² (stranded wire with ferrule), with a stripping length of 10 mm. Mounting is done via a DIN rail (DIN 35) or by screw fastening.

Compatibility and Accessories

The device is specified according to IEC/EN 60255-1 and meets the requirements for measuring and monitoring equipment in electrical installations. It is designed for use in a temperature range of -20 °C to +70 °C and can be operated up to an altitude of 2000 m. The enclosure protection rating is IP 40, and the terminals are rated IP 40. The enclosure is made of thermoplastic with V0 flammability rating according to UL Subject 94. EMC requirements are met according to IEC/EN 61000-4-2 to -4-6, including immunity to electrostatic discharge (6 kV), high-frequency radiation (10 V/m), and fast transients (2 kV). Radio frequency interference suppression complies with Class B limits according to EN 55011.

Mounting and Installation

Mounting is done on a DIN rail (IEC/EN 60715) or by screw fastening. The connection terminals are flat and feature a self-lifting connection washer, ensuring a secure connection. The tightening torque is 0.8 Nm. The device dimensions are 17.5 mm (width) x 90 mm (height) x 58 mm (depth). The width of 17.5 mm allows for compact mounting in standard distribution boxes.

Operational Advantages

By detecting voltage anomalies and ripple content early, the device can contribute to preventive maintenance, increasing productivity and avoiding costly failures. The clear indication via the yellow LED simplifies fault localization. The high mechanical and electrical life expectancy, along with robust construction, ensures reliable long-term use in industrial applications. Compliance with the IEC/EN 60255-1 standard and EMC conformity guarantee reliability and safety in operation.

Technical data
1- / 3-phase1
Auxiliary voltageWithout
Enclosure designDistribution board
Nominal voltage max.DC 24 V
Output contacts1 NC contact, 1 NO contact
Width17,5 mm
TypeIK 9044
Variant
Contact equipping1 NO contact, 1 NC contact
Nominal voltageDC 24 V
VariantFor monitoring direct current voltage supply systems and residual ripple. Fixed setting value


Product data sheet
Datasheet for Dold 0027841, EAN: 4030641278410

Questions & answers

What is the delivery time of Dold 0027841 IK9044 DC24V voltage monitor ?

The article Dold 0027841 IK9044 DC24V voltage monitor is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0027841 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0027841 IK9044 DC24V voltage monitor always at the best possible price. We can give you a discount of 2% on Dold 0027841 IK9044 DC24V voltage monitor if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Dold 0027841 IK9044 DC24V voltage monitor we can offer you a price of 123,53 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
