Dold 0025034 BA7954.82 AC 50/60 Hz 230 V 5-100 S time relay delayed return

Your rating:
Average rating
product review for Dold 0025034 BA7954.82 AC 50/60 Hz 230 V 5-100 S time relay delayed return
( 4.6 / 5 ) 9 ratings

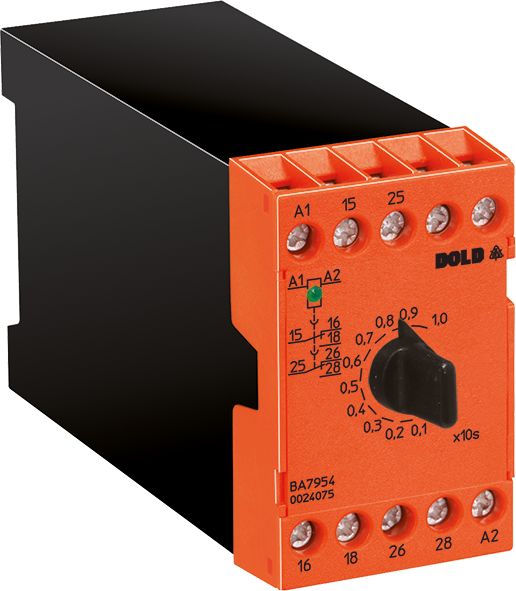

Dold 0025034
This image may differ from the desired article.
205,48 EUR
( 244,52 EUR incl. VAT )
≈ £171.99  |  ≈ $225.82
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0025034 BA7954.82 AC 50/60 Hz 230 V 5-100 S time relay delayed return
Datasheet:file_download Download
Lieske Part No.:493204
Mfg Part No: 0025034
UPC/EAN: 4030641250348
Weight:0.29 kg
Type:BA7954.82AC50/60HZ230V5-100S
Graduated prices net
From piecesPrice per pieces
5202,40 EUR
10199,32 EUR
15196,23 EUR
20193,15 EUR

Product information for Dold 0025034:

The Dold time relay BA7954.82AC50/60HZ230V5-100S is a drop-out delayed industrial time relay for use in enclosures. It is designed for time-delayed disconnection of electrical loads after interruption of the operating voltage, with the delay time being continuously adjustable in the range of 5 to 100 seconds. The device is compliant with EN 61812-1 and offers a repeatability of ≤ ± 1 %, ensuring high reliability during repeated switching operations. The operating voltage is AC 230 V at a nominal frequency of 50/60 Hz, and the relay is designed for continuous operation.

Applications
This time relay is suitable for industrial applications where delayed disconnection is required after interruption of voltage. Typical applications include motor control, lighting systems, pumps, or other loads where immediate disconnection is not desired. The zero-voltage safety ensures that the relay safely switches to the off state in the event of a power failure, without requiring an external signal.

Functions and Equipment in Detail
The device features two changeover contacts (C/O contacts) as output contacts, which switch with delay. The contact configuration allows control of two independent loads. The contacts are made of AgSnO₂ with a gold plating of 0.2 μm, ensuring high switching capacity and long service life. The rated operating voltage of the contacts is AC 250 V, and the relay can achieve an electrical life of 250,000 switching cycles at 1 A/AC 230 V. The mechanical life exceeds 10 million switching cycles. The terminal clamps are designed for conductor cross-sections of 2 x 2.5 mm² (solid) or 2 x 1.5 mm² (stranded wire with ferrule) and comply with DIN 46228-1/-2/-3/-4. The clamps are secured using flat clamps with self-lifting connection washers, with a tightening torque of 0.8 Nm specified.

Technology Explained Simply
The time delay is drop-out delayed, meaning that the contacts do not switch off immediately after the operating voltage is interrupted, but only after the set delay time (5–100 s) has elapsed. The setting is continuously adjustable on an absolute scale, allowing precise adaptation to the specific application. The LED indicator signals the presence of operating voltage. The relay is designed for mounting on a DIN rail (IEC/EN 60715), ensuring quick and secure installation in enclosures. The housing design is intended for use in enclosures, with a width of 45 mm.

Compatibility and Accessories
The time relay can be actuated with two-wire initiators, facilitating integration into existing control systems. An adapter for screw mounting (part number 0023119) is available as an accessory, enabling an alternative mounting method. The device dimensions are 45 mm (width) × 73 mm (height) × 133 mm (depth). The housing protection rating is IP 40, and the terminals are rated IP 40, providing protection against touch and dust, but not against splashing water.

Mounting and Installation
Mounting is standard on a DIN rail inside the enclosure. The terminals are designed for connection with solid or stranded conductors, with the specified cross-sections and tightening torque (0.8 Nm) must be observed. The operating and storage temperature ranges are between -20 °C and +60 °C, and the operating altitude is limited to a maximum of 2000 m above sea level. The vibration resistance is specified with an amplitude of 0.35 mm at frequencies from 10 to 55 Hz, ensuring suitability for use in vibrating environments.

Advantages in Operation
The relay offers high operational safety due to zero-voltage safety and precise time control with repeatability ≤ ± 1 %. The continuous adjustment of the delay time allows flexible adaptation to different requirements. The LED indicator simplifies diagnosis and maintenance, as the operating status can be visually checked. The high mechanical and electrical life ensures long service life and low maintenance costs. Compatibility with two-wire initiators and DIN rail mounting supports quick and reliable integration into existing systems.

Protection Rating and Environmental Conditions
The housing is made of thermoplastic with V0 behavior according to UL Subj. 94, ensuring good flame resistance. The protection rating of IP 40 for the housing and IP 40 for the terminals meets the requirements for use in enclosures. Environmental conditions are limited to an operating temperature of -20 °C to +60 °C and storage temperature within the same range. The operating altitude is limited to 2000 m above sea level.

EMC and Safety Requirements
The device meets the requirements of the EMC directive with immunity to static discharges (8 kV), high-frequency radiation (10 V/m), and fast transients (2 kV). Radio frequency interference suppression complies with Class B limits according to EN 55011. Insulation testing is performed at 2.5 kV/1 min, and the overvoltage category is III. The rated impulse withstand voltage is 4 kV at pollution degree 2 according to IEC/EN 60664-1.

Technical data
Enclosure designSwitch cabinet
Output contacts2 C/O contacts
Time function(s)Off-delay, without control signal
Width45 mm
TypeBA 7954
Variant
Contact equipping2 changeover contacts delayed
Nominal voltageAC 230 V
Time range5 - 100 s
VariantRelease delay, without control signal


Product data sheet
Datasheet for Dold 0025034, EAN: 4030641250348
