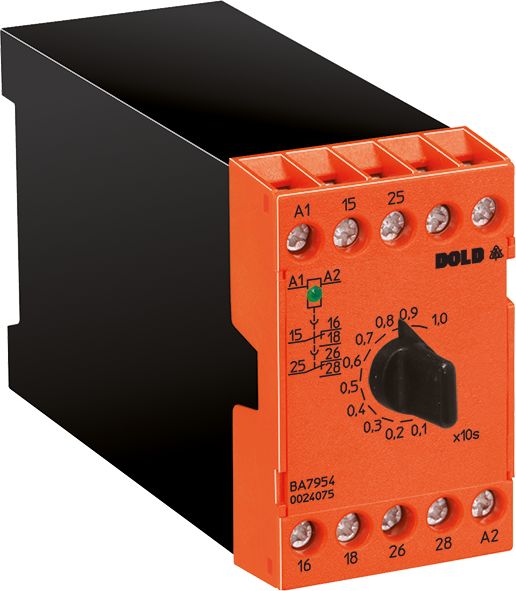

Dold 0024935 BA7954.82 AC 50/60 Hz 230 V 0.05–1 s time relay delayed return

Your rating:
Average rating
product review for Dold 0024935 BA7954.82 AC 50/60 Hz 230 V 0.05–1 s time relay delayed return
( 4.8 / 5 ) 4 ratings
Dold 0024935
This image may differ from the desired article.
192,07 EUR
( 228,56 EUR incl. VAT )
≈ £160.76  |  ≈ $211.08
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0024935 BA7954.82 AC 50/60 Hz 230 V 0.05–1 s time relay delayed return
Datasheet:file_download Download
Lieske Part No.:1583547
Mfg Part No: 0024935
UPC/EAN: 4030641249359
Weight:0.29 kg
Type:BA7954.82 AC50/60HZ 230V 0,05-1S
Graduated prices net
From piecesPrice per pieces
5184,87 EUR
10177,66 EUR
15170,46 EUR
20163,26 EUR

Product information for Dold 0024935:

The Dold time relay BA7954.82 is a delayed-release industrial time relay, designed for use in enclosures. It operates with a rated voltage of AC 230 V and features a time range of 0.05 to 1 second. The relay's function is designed such that the output contacts delay returning to their de-energized position after the operating voltage is switched off, enabling controlled shutdown of loads or machine components. The device is designed in accordance with the EN 61812-1 standard and offers a repeatability of ≤ ± 1 %, ensuring high precision in time control.

Applications
This time relay is suitable for applications requiring delayed de-energization after interruption of the supply voltage. Typical use cases include motor control, lighting systems, pumps, or other electrical loads where immediate shutdown is not desired. The zero-voltage safety feature ensures that the relay safely returns to its default state in the event of a power failure, without requiring an external control signal.

Functions and Equipment in Detail
The relay features two changeover contacts (C/O contacts) that switch with delay. The contact configuration allows control of two independent load circuits. The contacts are made of AgSnO₂ and coated with a 0.2 μm thick gold layer, ensuring high switching life and excellent contact quality. The response time of the contacts is ≤ 25 ms, enabling rapid reaction to operating voltage signals. An LED indicator signals the presence of operating voltage, allowing visual verification of the operating status.

Technology Explained Simply
The time delay is continuously adjustable on an absolute scale, covering a range from 0.05 to 1 second. Adjustment is performed via a rotary knob mounted directly on the device. The reset time is ≥ 25 ms, meaning the relay is operational again within this time after a de-energization event. Voltage influence values are below ± 1 %, and temperature influence is < 0.3 % per Kelvin, ensuring stable time control even under varying environmental conditions.

Compatibility and Accessories
The time relay can be actuated with two-wire initiators, facilitating integration into existing control systems. It is designed for use in enclosures and is mounted on a DIN rail (IEC/EN 60715). The terminal arrangement conforms to DIN 46199-5, and the conductor cross-sections are 2 x 2.5 mm² for solid conductors or 2 x 1.5 mm² for stranded conductors with ferrules (DIN 46228-1/-2/-3/-4). The tightening torques for the terminals are 0.8 Nm.

Mounting and Installation
Mounting is performed on a standardized DIN rail within the enclosure. The width is 45 mm, allowing compact installation in existing control panels. The device dimensions are 45 mm (width) × 73 mm (height) × 133 mm (depth). The operating temperature range is from -20 °C to +60 °C, and the storage temperature range matches the operating temperature range. The operating altitude is limited to ≤ 2000 m above sea level.

Advantages in Operation
The relay offers high reliability due to zero-voltage safety and robust construction. The mechanical life exceeds 10 million switching operations, while the electrical life at 1 A and AC 230 V is at least 250,000 switching operations. The switching capacity according to AC 15 is 3 A for closing contacts and 1 A for opening contacts at AC 230 V. Short-circuit resistance is ensured by a maximum fuse rating of 4 A gG/gL. The enclosure protection rating is IP 40, and the terminals are rated IP 40, providing protection against contact and dust. The housing is made of thermoplastic with V0 flammability rating according to UL Subj. 94, indicating a high fire protection class.

Technical data
Enclosure designSwitch cabinet
Output contacts2 C/O contacts
Time function(s)Off-delay, without control signal
Width45 mm
TypeBA 7954
Variant
Contact equipping2 changeover contacts delayed
Nominal voltageAC 230 V
Time range0,05 - 1 s
VariantRelease delay, without control signal


Product data sheet
Datasheet for Dold 0024935, EAN: 4030641249359
