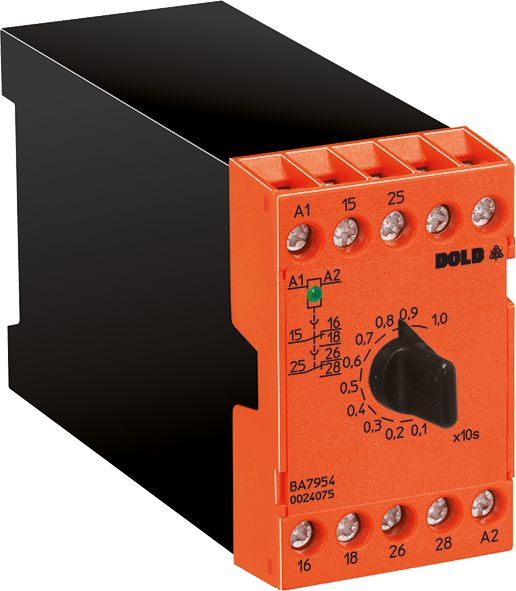

Dold 0024080 BA7954.82 AC 50/60 Hz 230 V 0.15–3 s time relay delayed return

Your rating:
Average rating
product review for Dold 0024080 BA7954.82 AC 50/60 Hz 230 V 0.15–3 s time relay delayed return
( 4.5 / 5 ) 8 ratings
Dold 0024080
This image may differ from the desired article.
192,07 EUR
( 228,56 EUR incl. VAT )
≈ £160.76  |  ≈ $211.08
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0024080 BA7954.82 AC 50/60 Hz 230 V 0.15–3 s time relay delayed return
Datasheet:file_download Download
Lieske Part No.:1312797
Mfg Part No: 0024080
UPC/EAN: 4030641240806
Weight:0.29 kg
Type:BA7954.82 AC50/60HZ 230V 0,15-3S
Graduated prices net
From piecesPrice per pieces
5189,19 EUR
10186,31 EUR
15183,43 EUR
20180,55 EUR

Product information for Dold 0024080:

The Dold time relay BA7954.82 is a delayed-release industrial time relay, designed for use in enclosures. It features a rated voltage of AC 230 V and a time range of 0.15 to 3 seconds. This variant is specifically designed for applications where the output contacts remain in their last position for a set time after the operating voltage is switched off, without requiring an additional control signal. The device complies with standard EN 61812-1 and is voltage-loss safe, meaning it immediately returns to its resting state and safely opens the contacts in the event of a power failure.

Delayed release is the central function of this relay: once the operating voltage is switched off, the output contacts remain in their last position for a set duration before returning to their default state. This enables controlled shutdown of motors, pumps, or other loads that must not be switched off immediately. The time delay is continuously adjustable and set on an absolute scale, with a repeat accuracy of ≤ ± 1 %. The minimum on-time is 25 ms, and for shorter on-times, the time error can reach up to 10 %.

Functions and equipment in detail include two changeover contacts as contact configuration, suitable for controlling two independent loads. The contacts are made of AgSnO₂ with a gold plating of 0.2 μm, ensuring high switching capacity and long service life. The rated operating voltage is AC 250 V, and the contact response time is ≤ 25 ms. The relay is designed for continuous operation and can be used at operating temperatures from -20 °C to +60 °C.

Technology explained simply shows that the device features an LED indicator that lights up when operating voltage is applied. This facilitates diagnosis and monitoring during operation. The input voltage range is 0.8 to 1.1 times the rated voltage, providing high tolerance to voltage fluctuations. The rated frequency is 50/60 Hz, and the rated power consumption is 3 VA. The relay is suitable for actuation with two-wire initiators, making it usable in industrial installations with sensors and switches.

Compatibility and accessories include mounting on standard DIN rail (IEC/EN 60715) within the enclosure. The terminal arrangement conforms to DIN 46199-5, and the conductor cross-sections are 2 x 2.5 mm² for solid conductors or 2 x 1.5 mm² for stranded conductors with ferrules (DIN 46228-1/-2/-3/-4). The tightening torques for the terminals are 0.8 Nm. An adapter for screw mounting (part number 0023119) is available as an accessory, enabling alternative installation.

Mounting and installation is simple, achieved by inserting into the DIN rail within the enclosure. The width is 45 mm, and the dimensions are 45 x 73 x 133 mm (width x height x depth). The enclosure protection rating is IP 40, and the terminals are IP 40, providing protection against touch and dust, but not against water spray. The device is designed for operation at altitudes up to 2000 m above sea level.

Advantages in operation include high reliability, easy operation, and voltage-loss safety. The mechanical service life exceeds 10 million switching operations, and the electrical service life is 250,000 switching operations at 1 A and AC 230 V. The permissible switching frequency is 6000 switching operations per hour. Short-circuit resistance is ensured by a maximum fuse rating of 4 A gG/gL (IEC/EN 60947-5-1). The EMC coverage includes immunity to electrostatic discharge (8 kV), high-frequency radiation (10 V/m), and fast transients (2 kV), ensuring safe operation in industrial environments.

Batteries are not included in the delivery scope.

Technical data
Enclosure designSwitch cabinet
Output contacts2 C/O contacts
Time function(s)Off-delay, without control signal
Width45 mm
TypeBA 7954
Variant
Contact equipping2 changeover contacts delayed
Nominal voltageAC 230 V
Time range0,15 - 3 s
VariantRelease delay, without control signal


Product data sheet
Datasheet for Dold 0024080, EAN: 4030641240806

Questions & answers

What is the delivery time of Dold 0024080 BA7954.82 AC 50/60 Hz 230 V 0.15–3 s time relay delayed return ?

The article Dold 0024080 BA7954.82 AC 50/60 Hz 230 V 0.15–3 s time relay delayed return is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0024080 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0024080 BA7954.82 AC 50/60 Hz 230 V 0.15–3 s time relay delayed return always at the best possible price. We can give you a discount of 2% on Dold 0024080 BA7954.82 AC 50/60 Hz 230 V 0.15–3 s time relay delayed return if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Dold 0024080 BA7954.82 AC 50/60 Hz 230 V 0.15–3 s time relay delayed return we can offer you a price of 189,19 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
