Dold 0022748 BA7905.82 AC 50/60 Hz 230 V 0.5–10 s time relay delayed operation

Your rating:
Average rating
product review for Dold 0022748 BA7905.82 AC 50/60 Hz 230 V 0.5–10 s time relay delayed operation
( 4.4 / 5 ) 8 ratings
Dold 0022748
This image may differ from the desired article.
129,27 EUR
( 153,83 EUR incl. VAT )
≈ £108.20  |  ≈ $142.07
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0022748 BA7905.82 AC 50/60 Hz 230 V 0.5–10 s time relay delayed operation
Datasheet:file_download Download
Lieske Part No.:260119
Mfg Part No: 0022748
UPC/EAN: 4030641227487
Weight:0.2 kg
Type:BA7905.82AC50/60HZ230V0,5-10S
Graduated prices net
From piecesPrice per pieces
5127,33 EUR
10125,39 EUR
15123,45 EUR
20121,51 EUR

Product information for Dold 0022748:

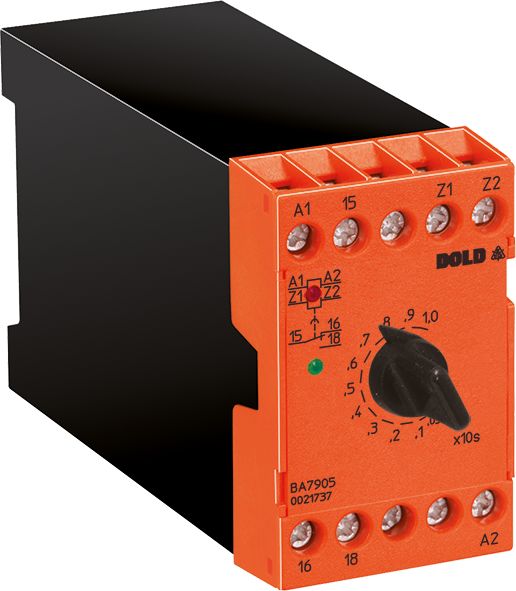

The time relay BA7905.82AC50/60HZ230V0,5-10S from Dold is an on-delay time relay for use in industrial control systems and enclosures. It is used for time-delayed activation of output contacts after applying the operating voltage, enabling controlled starting behavior of motors or sequential switching of system components. The delay time is continuously adjustable via a rotary switch in the range of 0.5 to 10 seconds, with adjustment made on an absolute scale. The rated voltage is AC 230 V, and the device is designed for a rated frequency of 50/60 Hz. The operating voltage must lie within 0.8 to 1.1 times the rated voltage to ensure correct operation.

Applications
This device is intended for time-dependent control applications in industry, particularly in systems where controlled, delayed switching of components is required. Typical applications include starting electric motors, sequential activation of switching devices, or delaying signals in control circuits. The repeatability of ≤ ±1 % of the scale end value ensures high precision during repeated switching operations. The reset time is 10 ms, enabling a rapid response when the operating voltage is switched off.

Functions and Features in Detail
The time relay features 2 changeover contacts (output contacts) that switch with delay. The contact rating is designed for a rated operating voltage of AC 250 V, with switching capacity according to AC 15 at 2 A / AC 230 V. The contacts are made of AgNi (silver-nickel), ensuring high contact durability and long service life under frequent switching conditions. The electrical life is 50,000 switching operations at 2 A and AC 230 V, while the mechanical life is 50 million switching operations. The maximum permissible switching frequency is 6,000 switching operations per hour.

Technology Explained Simply
The delay function is implemented via an integrated timing circuit that waits for a defined period after applying the operating voltage before switching the output contacts. Adjustment is made via a continuously variable rotary switch, read on an absolute scale. The re-arm time is 100 ms at 50 Hz and 50 ms at 100 Hz, meaning the device is ready for operation again within this time after voltage is switched off. The voltage influence is 0.5 %, and the temperature influence is 0.2 % per Kelvin, ensuring stable performance over a wide temperature range.

Compatibility and Accessories
The device is equipped with a remote potentiometer connection at terminals Z1 and Z2, allowing the delay time to be adjusted externally via an external variable resistor. For this, the internal variable resistor must be set to its minimum value and the bridge between Z1 and Z2 removed. The protection rating of the housing is IP 40, and that of the terminals is IP 20, providing protection against contact and dust, but not against water or splashing water. The housing is made of thermoplastic with V0 behavior according to UL Subj. 94, ensuring good flame resistance.

Mounting and Installation
The device is designed for installation in enclosures and has a mounting width of 45 mm, making it suitable for standard control panels. The connection terminals are designed for wiring, with terminal designations A1(+) and A2(−) for power supply, Z1/Z2 for remote potentiometer connection, and 15/16/18 as well as 25/26/28 for changeover contact terminals. The LED indicators signal operational readiness (upper LED) and activation of the output relay (lower LED).

Operational Advantages
The high repeatability and wide adjustment range enable precise and flexible control. The simple adjustment via the rotary switch and the option for remote control via an external potentiometer increase flexibility in use. Increased safety during switching of system components during startup is achieved through controlled delay. The device is designed for continuous operation and can be used at an operating temperature of −20 to +60 °C. The operating altitude is limited to a maximum of 2000 m.

Standards and Approvals
The time relay complies with standard EN 61812-1 for on-delay relays. EMC requirements are met according to IEC/EN 61000-4-2 to -4-6, including immunity to electrostatic discharge (8 kV), high-frequency radiation, and fast transients. Radio frequency interference suppression complies with emission limit class B according to EN 55011. Short-circuit resistance is ensured with a maximum fuse rating of 4 A gG / gL.

Technical data
Enclosure designSwitch cabinet
Output contacts2 C/O contacts
Time function(s)On-delay
Width45 mm
TypeBA 7905
Variant
Contact equipping2 changeover contacts delayed
Nominal voltageAC 230 V
Time range0,5 - 10 s


Product data sheet
Datasheet for Dold 0022748, EAN: 4030641227487
