Dold 0022563 MK9961.81 AC/DC24V 0.15-3S time relay delayed release

Your rating:
Average rating
product review for Dold 0022563 MK9961.81 AC/DC24V 0.15-3S time relay delayed release
( 4.5 / 5 ) 27 ratings

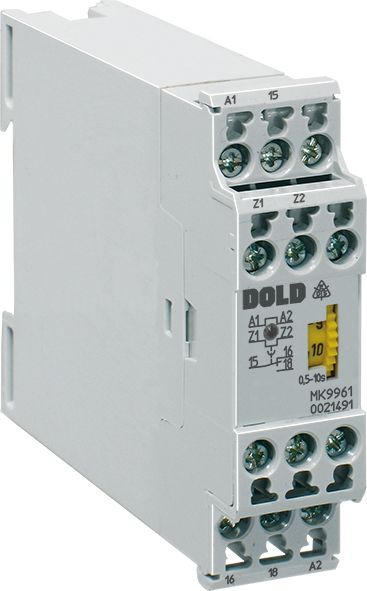

Dold 0022563
This image may differ from the desired article.
200,77 EUR
( 238,92 EUR incl. VAT )
≈ £168.04  |  ≈ $220.65
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0022563 MK9961.81 AC/DC24V 0.15-3S time relay delayed release
Datasheet:file_download Download
Lieske Part No.:456760
Mfg Part No: 0022563
UPC/EAN: 4030641225636
Weight:0.16 kg
Type:MK9961.81AC/DC24V0,15-3S
Graduated prices net
From piecesPrice per pieces
5199,26 EUR
10197,76 EUR
15196,25 EUR
20194,75 EUR

Product information for Dold 0022563:

The Dold time relay MK9961.81AC/DC24V0,15-3S is a drop-out delayed industrial time relay designed for time-dependent control applications without auxiliary voltage. It features an adjustable delay time ranging from 0.15 to 3 seconds and is designed for mounting in enclosures. The width is 22.5 mm, enabling compact integration into standard control panels. The device is rated for operating voltages of AC/DC 24 V and includes polarity protection, minimizing the risk of incorrect connection. The time function is drop-out delayed, meaning the contact returns with a delay after the control voltage is switched off. The output contact configuration includes a changeover contact that switches with delay. The repeatability is under ±1 %, ensuring high precision in repeated switching operations.

Applications
This time relay is suitable for applications requiring delayed deactivation after interruption of the control voltage. Typical uses include motor control, lighting systems, pumps, or other electrical loads where immediate switching off is not desired. The zero-voltage safety ensures the relay maintains its function even during brief voltage interruptions, allowing the preset delay time to run correctly. Control is achieved via two-wire initiators, enabling simple integration into existing control systems.

Functions and Equipment in Detail
The time delay is continuously adjustable and set on an absolute scale, allowing for precise adjustment. Remote adjustment via an external variable resistor is also provided, enabling the time delay to be adjusted from outside without direct access to the device. The LED indicator signals the presence of operating voltage, facilitating diagnostics during operation. The contact configuration consists of a delayed changeover contact rated for an operating voltage of AC 250 V. The thermal current is 5 A, defining the contact load capacity. The electrical life is 5 × 10⁵ switching operations at 3 A and AC 230 V, ensuring high operational reliability over a long period.

Technology Explained Simply
The relay operates on the principle of drop-out delayed switching: as soon as the control voltage is switched off, the delay time begins, and the contact only returns after this time has elapsed. The time delay is generated by an internal timing mechanism controlled by the set time constant. Adjustment is made via a rotary control, either directly on the device or through an external variable resistor (remote adjustment). The repeatability under ±1 % ensures that the delay time remains constant during repeated switching operations. Voltage influence values are under ±1.5 %, ensuring stable operation even with voltage fluctuations within the permissible range (0.8 to 1.1 times nominal voltage).

Compatibility and Accessories
The device is designed for mounting on a DIN rail and can thus be integrated into standardized enclosures. The connection terminals are rated for conductors with a cross-section of 2 x 1.5 mm², and the use of heat shrink tubing or screw terminals according to DIN 46228-1/-2/-3/-4 is recommended. The terminals are equipped with a self-lifting terminal clamp, ensuring a secure connection. For remote adjustment, various external variable resistors are available, which can be selected according to the desired time range. Using an external potentiometer allows flexible adjustment of the delay time without physical access to the device.

Mounting and Installation
Mounting is on a DIN rail in accordance with IEC/EN 60715. The terminals are designed for connection with solid or stranded zinc-coated conductors, with the conductor insulation needing to be at least 8 mm. The connection is secured by a flat terminal with a self-lifting terminal clamp, ensuring a secure and durable connection. Installation is to be carried out in a closed enclosure, with the ambient temperature ranging from -20 °C to +60 °C. The operating altitude is limited to a maximum of 2000 m above sea level. The enclosure protection rating is IP 40, and the terminals are rated IP 40, providing protection against contact and dust, but not against water or splashing water.

Advantages in Operation
The time relay offers high operational reliability through zero-voltage safety and precise time control with repeatability under ±1 %. Simple operation and the option for remote adjustment increase flexibility in use. Control via two-wire initiators enables direct integration into existing control systems. The LED indicator facilitates diagnostics during operation, as the supply voltage can be visually monitored. The high mechanical life of 50 × 10⁶ switching operations and the electrical life of 5 × 10⁵ switching operations at 3 A/AC 230 V ensure a long service life. Certification according to UL and compliance with EN 61812-1 ensure adherence to international safety and quality standards.

Technical data
ApprovalsUL
Enclosure designSwitch cabinet
Output contacts1 C/O contact
Time function(s)Off-delay, without control signal
Width22,5 mm
TypeMK 9961
Variant
Contact equipping1 changeover contact delayed
Nominal voltageAC/DC 24 V
Time range0,15 - 3 s
VariantRelease delay, without control signal


Product data sheet
Datasheet for Dold 0022563, EAN: 4030641225636

Questions & answers

What is the delivery time of Dold 0022563 MK9961.81 AC/DC24V 0.15-3S time relay delayed release ?

The article Dold 0022563 MK9961.81 AC/DC24V 0.15-3S time relay delayed release is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0022563 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0022563 MK9961.81 AC/DC24V 0.15-3S time relay delayed release always at the best possible price. We can give you a discount of 2% on Dold 0022563 MK9961.81 AC/DC24V 0.15-3S time relay delayed release if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Dold 0022563 MK9961.81 AC/DC24V 0.15-3S time relay delayed release we can offer you a price of 199,26 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
