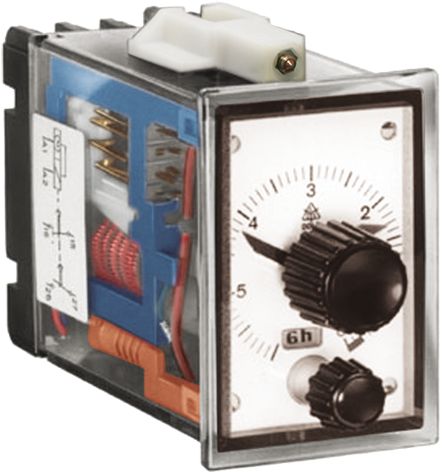

Dold 0011873 EC7616.32/100 50/60 Hz 230 V 0.15 S–30 H time relay delayed operation

Your rating:
Average rating
product review for Dold 0011873 EC7616.32/100 50/60 Hz 230 V 0.15 S–30 H time relay delayed operation
( 4.3 / 5 ) 7 ratings
Dold 0011873
This image may differ from the desired article.
320,21 EUR
( 381,05 EUR incl. VAT )
≈ £268.02  |  ≈ $351.91
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0011873 EC7616.32/100 50/60 Hz 230 V 0.15 S–30 H time relay delayed operation
Datasheet:file_download Download
Lieske Part No.:1312743
Mfg Part No: 0011873
UPC/EAN: 4030641118730
Weight:0.405 kg
Type:EC7616.32/100 50/60HZ 230V0,15S-30H
Graduated prices net
From piecesPrice per pieces
4315,41 EUR
8310,60 EUR
12305,80 EUR
16301,00 EUR

Product information for Dold 0011873:

The Dold time relay EC7616.32/100 is a delayed-action relay for use in industrial control systems and switchgear. It is designed as a front panel mounting device and has a width of 48 mm. The rated voltage is AC 230 V, and the device is designed for frequencies of 50/60 Hz. The time function is configured for delayed operation, with a time range from 0.15 seconds to 30 hours. The design is voltage-loss-safe, meaning that if the operating voltage is interrupted, the elapsed time is retained and the delayed contacts continue to complete the set delay time after voltage is restored.

Applications
This time relay is suitable for controlling devices and systems where a time-delayed switching function is required. Typical applications include motor starting, time-controlled activation of auxiliary devices, or synchronizing process steps in manufacturing plants. The stepless adjustment of the delay time via a rotary switch allows flexible adaptation to different requirements.

Functions and Features in Detail
The device features two output contacts: one delayed changeover contact (delayed-action) and one instantaneous changeover contact (immediate contact). The delayed contacts switch only after the set time has elapsed, while the instantaneous contacts switch immediately upon activation of the control voltage. The time progression is indicated by a red pointer on the device scale, visually showing the progress of the delay time. A switching position indicator is also integrated, which is visible in the EC 7616 variant (not in EH 7616). The repeatability accuracy is ≤ ± 0.5 %, with a permissible deviation of ≤ ± 1 % in the range of 3 and 6 seconds.

Technical Explanation
The time control is purely mechanical, driven by a synchronous motor powered by the control voltage connected to terminals A1-A2. The delay time is selected via a steplessly adjustable rotary switch on the front panel. The voltage-loss-safe design ensures that the time function is not reset in case of power failure, but retains the elapsed time. This is achieved by a mechanical lock when the coupling is energized. The frequency switching between 50 Hz and 60 Hz is performed on the rear of the device by shifting a latch using a screwdriver.

Compatibility and Accessories
The time relay is part of Dold’s MINITIMER series and can be used in combination with other devices from this series. The contact configuration, featuring one delayed and one instantaneous changeover contact, enables flexible switching configurations. The devices are specified according to EN 61812-1, ensuring compliance with safety and functional standards for time relays.

Mounting and Installation
The device is designed for front panel mounting and is installed in standard control panels with a width of 48 mm. The connection terminals are clearly labeled: A1-A2 for control and operating voltage, B1-B2 for control voltage in voltage-loss-safe design, and contact terminals 15-16 (delayed normally open), 27-28 (delayed normally closed), 31-32 (instantaneous normally open), and 43-44 (instantaneous normally closed). The delay time is adjusted via the rotary switch on the front panel.

Operational Advantages
The combination of a wide adjustment range, high repeatability accuracy, and voltage-loss-safe function makes this device a reliable solution for time-controlled applications. The mechanical time control is robust and low-maintenance. The clear indication of time progression and switching position facilitates commissioning and maintenance. The front-side adjustment of the delay time allows quick adaptation without tools or access to the rear of the device.

Technical data
Enclosure designFront panel mounting
Output contacts1 C/O contact
Time function(s)On-delay
Width48 mm
TypeEC 7616
Variant
Contact equipping1 changeover contact delayed, 1 changeover undelayed
Nominal voltageAC 230 V
Time range0,15 s - 30 h
VariantNo-voltage safe


Product data sheet
Datasheet for Dold 0011873, EAN: 4030641118730
