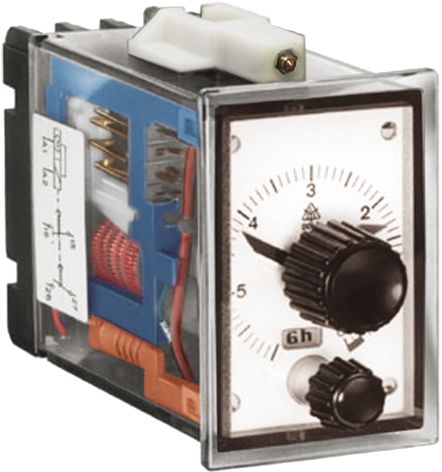

Dold 0011872 EC7616.32/100 50/60 Hz 230 V 0.15–1000 s time relay delayed response

Your rating:
Average rating
product review for Dold 0011872 EC7616.32/100 50/60 Hz 230 V 0.15–1000 s time relay delayed response
( 4.8 / 5 ) 4 ratings
Dold 0011872
This image may differ from the desired article.
320,21 EUR
( 381,05 EUR incl. VAT )
≈ £268.02  |  ≈ $351.91
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0011872 EC7616.32/100 50/60 Hz 230 V 0.15–1000 s time relay delayed response
Datasheet:file_download Download
Lieske Part No.:1583541
Mfg Part No: 0011872
UPC/EAN: 4030641118723
Weight:0.405 kg
Type:EC7616.32/100 50/60HZ 230V,15-1000S
Graduated prices net
From piecesPrice per pieces
4315,41 EUR
8310,60 EUR
12305,80 EUR
16301,00 EUR

Product information for Dold 0011872:

The Dold time relay EC7616.32/100 is a delayed-actuation industrial time relay of the MINITIMER series, designed for use in control and switching systems. It is used for time-delayed activation of electrical loads, for example when starting motors, to account for the individual starting behavior of system components. The device operates at a rated voltage of AC 230 V and features a time range from 0.15 to 1000 seconds. The contact configuration includes one delayed changeover contact and one instantaneous changeover contact, enabling both time-delayed and immediate switching functions. The design is intended for front panel mounting, with a width of 48 mm, making it suitable for standard control panels.

Applications
This time relay is used in industrial systems where controlled, time-based switching sequences are required. Typical applications include controlling pumps, fans, lighting systems, or protecting motors from too rapid a start. The voltage failure safety ensures that the elapsed time is retained in case of power interruption, allowing the timing sequence to resume after power is restored. This is particularly important in systems requiring continuous operation.

Functions and Features in Detail
The delay time is adjusted via a continuously variable rotary switch on the front of the device. The adjustment is made across six selectable time ranges, chosen using a switch on the front. The repeatability is ≤ ± 0.5 %, with an allowable deviation of ≤ ± 1 % in the 3 and 6 second ranges. A time progress indicator with a red pointer on the scale allows visual monitoring of the timing process. The switching position indicator shows the state of the contacts, a feature available on the EC 7616 variant.

Technology Explained Simply
The device operates on a purely mechanical timing mechanism driven by a synchronous motor. The time delay is achieved through a mechanical coupling that locks when energized. In the event of a power failure, the elapsed time is retained because the coupling remains locked. Frequency switching between 50 Hz and 60 Hz is performed on the rear of the device by shifting a latch using a screwdriver. The operating voltage is connected to terminals A1-A2, and in the voltage failure-safe version, the coupling is secured by a lock.

Compatibility and Accessories
The time relay is part of the MINITIMER series and can be combined with other models in the series, such as AA 7616, EF 7616, or EH 7616, depending on requirements for width and front panel area. The EC 7616 variant has a front panel area of 48 x 72 mm, making it suitable for standard control panels. The devices comply with the standard EN 61812-1, applicable to time relays.

Mounting and Installation
The device is mounted into a front panel, taking into account the width of 48 mm and front panel area of 48 x 72 mm. The connection terminals are clearly labeled: A1-A2 for control and operating voltage, B1-B2 for control voltage in the voltage failure-safe version, and contact terminals 15-16 (delayed normally open), 27-28 (delayed normally closed), 31-32 (instantaneous normally open), and 43-44 (instantaneous normally closed). Mounting is done by installing into a suitable control panel, with electrical connections made according to the wiring diagrams.

Operational Advantages
The wide adjustment range from 0.15 to 1000 seconds allows flexible adaptation to various applications. The simple adjustment via the rotary switch on the front reduces installation and maintenance time. Voltage failure safety ensures reliable operation even during brief power interruptions. The mechanical design ensures high operational reliability and long service life. The time progress indicator and switching position indicator facilitate diagnosis and maintenance during operation.

Technical data
Enclosure designFront panel mounting
Output contacts1 C/O contact
Time function(s)On-delay
Width48 mm
TypeEC 7616
Variant
Contact equipping1 changeover contact delayed, 1 changeover undelayed
Nominal voltageAC 230 V
Time range0,15 - 1000 s
VariantNo-voltage safe


Product data sheet
Datasheet for Dold 0011872, EAN: 4030641118723
