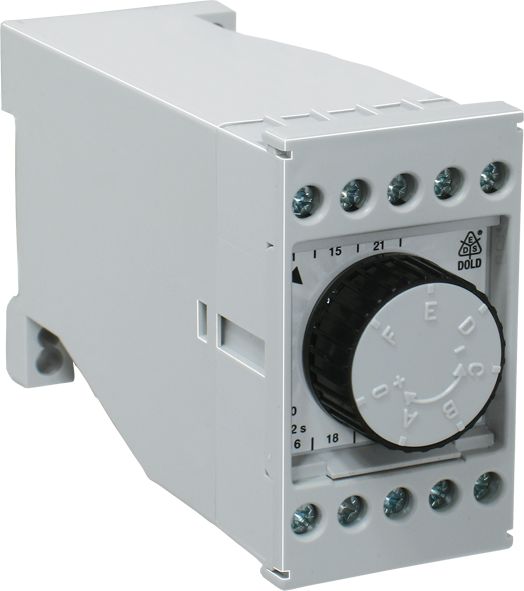

Dold 0010666 AA7562.32/001 DC24V 0.2-180S time relay delayed return
|
352,34 EUR |
|||||||||||
|
( 419,28 EUR incl. VAT ) ≈ £294.91 | ≈ $387.22 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 155655 | ||||||||||
| Mfg Part No: | 0010666 | ||||||||||
| UPC/EAN: | 4030641106669 | ||||||||||
| Weight: | 0.335 kg | ||||||||||
| Type: | AA7562.32/001 DC24V 0,2-180S | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Dold 0010666:
Applications
This relay is suitable for applications in industrial automation, manufacturing technology, and building automation where reliable, time-delayed switching off is required. It is used, for example, to safely shut down machines, to unload loads after operation ends, or to implement safety functions with time delay. The enclosure design allows for easy installation in standard control cabinets.
Functions and Features in Detail
The device features 2 changeover contacts as output contacts: one non-delayed changeover contact and one delayed changeover contact. The delayed function activates when the control signal ends – meaning the relay remains active for the set time after the input signal is switched off. The time can be continuously adjusted in the range of 0.2 to 180 seconds. The repeatability is ≤ ± 5 % of the end value of the range, ensuring high reproducibility of the delay time. The response time of the contacts is less than 50 ms, and the release time is less than 25 ms, ensuring fast reaction to signal changes.
Technology Explained Simply
The delay function is based on a pneumatic system in which a bellows is compressed by a magnetic field. When the power is switched off, the bellows expands slowly, actuating the delayed contact. The delay time is adjusted via a mechanical regulation system that influences the expansion speed of the bellows. This technology is particularly robust against electromagnetic interference, as it does not use electrical timing elements such as capacitors or integrated circuits. The rated voltage is DC 24 V, with an operating voltage range between 0.8 and 1.1 times the rated voltage. The width of 45 mm corresponds to the standard for enclosure components.
Compatibility and Accessories
The relay is designed for use in enclosures and complies with the standard EN 61812-1 for time relays. It is designed for continuous operation and can be used in environments with an operating temperature of -10 to +55 °C. The enclosure protection rating is IP 40, protecting against finger contact and solid objects, but not against water. The terminals have a protection rating of IP 10. The contacts are made of AgNi contacts, ensuring high electrical life. The electrical life is up to 1.2 million switching operations at 30 % of switching capacity. The mechanical life exceeds 3 million switching operations.
Mounting and Installation
The relay is mounted in enclosures and requires a minimum mounting clearance of 8 mm from adjacent components. The terminal connections are designed according to DIN 46199-5, with designations A1/A2 for the input voltage (L/+ and N/-) and 15/16/18 as well as 21/22/24 for the output contacts. Contacts 15-16-18 are the delayed changeover contacts, and contacts 21-22-24 are the non-delayed ones. Mounting is done by installing into a suitable enclosure or control console.
Operational Advantages
The pneumatic timing element offers high stability and insensitivity to electromagnetic interference, which is advantageous in industrial environments with high levels of electromagnetic noise. The continuous adjustment of the delay time allows precise adaptation to specific requirements. The high mechanical and electrical life ensures long operational life with minimal maintenance. Compliance with the EN 61812-1 standard ensures reliability and safety of the device in industrial applications.
| Technical data | |
| Enclosure design | Switch cabinet |
| Output contacts | 2 C/O contacts |
| Time function(s) | Off-delay, without control signal |
| Width | 45 mm |
| Type | AA 7562 |
| Variant | |
| Contact equipping | 1 changeover contact undelayed, 1 changeover delayed |
| Nominal voltage | DC 24 V |
| Time range | 0,2 - 180 s |
| Variant | Pneumatic time element |
