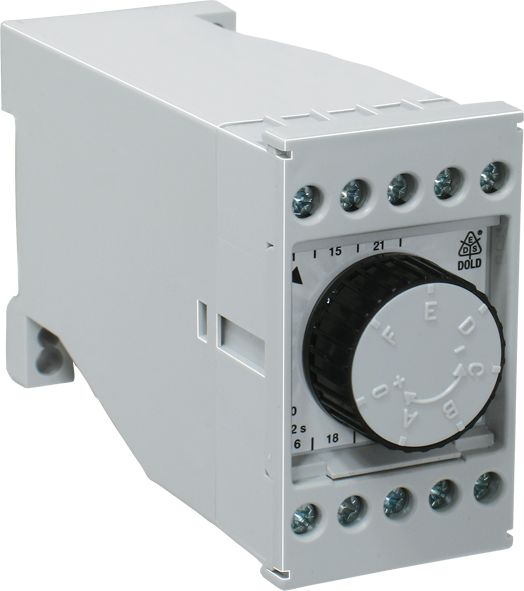

Dold 0010665 AA7562.32/001 DC24V 0.2-30S time relay delayed release

Your rating:
Average rating
product review for Dold 0010665 AA7562.32/001 DC24V 0.2-30S time relay delayed release
( 4.5 / 5 ) 35 ratings
Dold 0010665
This image may differ from the desired article.
334,89 EUR
( 398,52 EUR incl. VAT )
≈ £280.30  |  ≈ $368.04
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0010665 AA7562.32/001 DC24V 0.2-30S time relay delayed release
Datasheet:file_download Download
Lieske Part No.:684487
Mfg Part No: 0010665
UPC/EAN: 4030641106652
Weight:0.335 kg
Type:AA7562.32/001 DC24V 0,2-30S
Graduated prices net
From piecesPrice per pieces
4329,87 EUR
8324,84 EUR
12319,82 EUR
16314,80 EUR

Product information for Dold 0010665:

The Dold time relay AA7562.32/001 DC24V 0.2-30S is a delayed-release industrial time relay for use in enclosures. It is used for time-delayed control of electrical loads, where the contact returns delayed after switching off the control signal. The delay is achieved by a pneumatic time element with a bellows, which is compressed by a magnetic system. The expansion of the bellows is controlled by an adjustable regulation system, allowing the delay time to be set continuously between 0.2 and 30 seconds. The device complies with standard EN 61812-1 and is designed for continuous operation.

Applications
This time relay is suitable for applications in industrial environments where time-delayed switching off is required, for example in motor control, lighting systems, or pumps. The pneumatic time control makes it insensitive to electromagnetic influences, which is advantageous in environments with strong interference. The width of 45 mm allows mounting in standard enclosures according to DIN 46199-5.

Functions and equipment in detail
The device features two changeover contacts: one instantaneous and one delayed. The delayed contact switches off only after the set time has elapsed, while the instantaneous contact reacts immediately. The contact configuration consists of one instantaneous changeover and one delayed changeover, with the contact material being AgNi (silver-nickel). The repeatability is ≤ ± 5 % of the end value, ensuring high reproducibility of the delay time. The minimum switching-on time is 25 ms, the contact response time is < 50 ms, and the release time is < 25 ms.

Technology explained simply
The delay function is based on a pneumatic system: a bellows is compressed by a magnetic system. When the control signal is switched off, the bellows begins to expand, actuating the delayed contact. The duration is adjusted via a regulation system that influences the expansion speed. Power supply is via DC 24 V, with a voltage range between 0.8 and 1.1 times the rated voltage. The device is designed for operating temperatures from -10 °C to +55 °C and must only be operated in dry rooms or enclosed enclosures.

Compatibility and accessories
The time relay is designed for mounting in enclosures and meets requirements for creepage and clearance distances according to IEC/EN 60664-1. The enclosure protection rating is IP 40, and the terminals are IP 40. Terminal marking follows EN standards, and the connection terminals are designed for mounting according to DIN 46199-5. The maximum switching frequency is 1500 operations per hour, with an electrical life of 1.2 million operations at 30 % of switching capacity. The mechanical life exceeds 3 million operations.

Mounting and installation
Mounting is done in enclosures with a minimum spacing of 8 mm between devices. The housing is made of thermoplastic with V0 flammability rating according to UL Subj. 94, indicating a high fire protection class. The vibration resistance is 0.35 mm amplitude at a frequency of 10 to 55 Hz. The operating altitude is limited to a maximum of 2000 m above sea level.

Advantages in operation
The pneumatic time element ensures high stability of the delay time and insensitivity to electromagnetic interference. The continuous adjustment of the delay time allows precise adaptation to the specific application. The high mechanical and electrical life, as well as low maintenance requirements, make the device a reliable solution for industrial control tasks. The rated impulse voltage is 4 kV, with a pollution degree of 2. EMC requirements according to IEC/EN 61000-4-2 to -4-6 are fulfilled, including radio frequency interference suppression according to EN 55011, Class B.

Technical data
Enclosure designSwitch cabinet
Output contacts2 C/O contacts
Time function(s)Off-delay, without control signal
Width45 mm
TypeAA 7562
Variant
Contact equipping1 changeover contact undelayed, 1 changeover delayed
Nominal voltageDC 24 V
Time range0,2 - 30 s
VariantPneumatic time element


Product data sheet
Datasheet for Dold 0010665, EAN: 4030641106652

Questions & answers

What is the delivery time of Dold 0010665 AA7562.32/001 DC24V 0.2-30S time relay delayed release ?

The article Dold 0010665 AA7562.32/001 DC24V 0.2-30S time relay delayed release is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0010665 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0010665 AA7562.32/001 DC24V 0.2-30S time relay delayed release always at the best possible price. We can give you a discount of 2% on Dold 0010665 AA7562.32/001 DC24V 0.2-30S time relay delayed release if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of Dold 0010665 AA7562.32/001 DC24V 0.2-30S time relay delayed release we can offer you a price of 329,87 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
