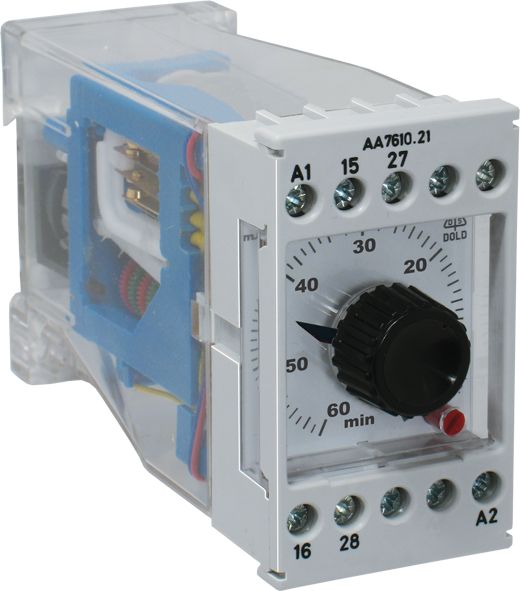

Dold 0010480 AA7610.22 AC 50/60 Hz 230 V 0.2–6 M time relay delayed pickup

Your rating:
Average rating
product review for Dold 0010480 AA7610.22 AC 50/60 Hz 230 V 0.2–6 M time relay delayed pickup
( 4.4 / 5 ) 7 ratings
Dold 0010480
This image may differ from the desired article.
330,14 EUR
( 392,87 EUR incl. VAT )
≈ £276.33  |  ≈ $362.82
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0010480 AA7610.22 AC 50/60 Hz 230 V 0.2–6 M time relay delayed pickup
Datasheet:file_download Download
Lieske Part No.:1313009
Mfg Part No: 0010480
UPC/EAN: 4030641104801
Weight:0.405 kg
Type:AA7610.22 AC50/60HZ 230V 0,2-6M
Graduated prices net
From piecesPrice per pieces
4325,19 EUR
8320,24 EUR
12315,28 EUR
16310,33 EUR

Product information for Dold 0010480:

The Dold time relay AA7610.22 is an on-delay relay of the MINTIMER series, designed for use in industrial control systems. It enables time-controlled activation of devices and system components, for example, to account for the starting behavior of motors. The device operates with a rated voltage of AC 230 V and a frequency of 50/60 Hz. The delay time is continuously adjustable in the range of 0.2 to 6 minutes, with adjustment performed via a black rotary switch on an absolute scale. The time progression is indicated by a red pointer on the device scale, visually displaying the current time course.

Applications
This time relay is suitable for applications requiring a delayed switching function, such as sequential starting of motors, pump control, or synchronization of process steps in manufacturing systems. The on-delay function ensures that the contact only switches after the set delay time has elapsed, enabling controlled and damage-free commissioning of loads.

Functions and Equipment in Detail
The device features contact configuration with one instantaneous closer, one delayed closer, and one delayed opener. The output contacts are rated for an operating voltage of AC 250 V. The contacts are made of AgNi with a gold plating of 0.2 μm, ensuring high switching capacity and long service life. The actuation time of the contacts is less than 35 ms, and the release time is less than 60 ms. The repeatability accuracy is ≤ ± 0.5 % of the scale end value, with an accuracy of ≤ ± 1 % within the 6-second range.

Technology Explained Simply
The time delay operates purely mechanically, ensuring high reliability and independence from electronic components. The delay time is adjusted via a continuously variable rotary switch positioned on an absolute scale. The time progression indicator, shown by the red pointer, allows for visual monitoring of the time course. The reset time is less than 150 ms, meaning the device is quickly ready for the next operation after switching off.

Compatibility and Accessories
The time relay is designed for use in enclosures and has a width of 45 mm. It complies with the standard EN 61812-1 and is designed for continuous operation. The operating temperature range is between -20 °C and +55 °C, and the storage temperature range is between -20 °C and +65 °C. The maximum operating altitude is 2000 m above sea level. The electrical service life is at least 100,000 switching operations at 3 A and AC 230 V, and at least 500,000 switching operations at 1 A and AC 230 V. The mechanical service life exceeds 30 million switching operations or 15,000 operating hours.

Mounting and Installation
The device is mounted in enclosures and is designed for front mounting. The connection terminals are intended for wiring. Mounting is carried out in the usual manner for enclosure devices, taking into account the width of 45 mm. Power supply is via terminals A1 and A2, and the output contacts are connected to terminals 15-16, 27-28, and 31-32.

Operational Advantages
The purely mechanical time delay ensures high reliability and low maintenance. The continuous adjustment of the delay time allows precise adaptation to specific requirements. The time progression indicator facilitates monitoring of the operational status. The high repeatability accuracy and long contact life ensure stable and durable performance in industrial applications. Compatibility with various voltages and frequencies increases the device's flexibility in use.

Technical data
Enclosure designSwitch cabinet
Output contacts1 NC contact, 1 NO contact
Time function(s)On-delay
Width45 mm
TypeAA 7610
Variant
Contact equipping1 NO contact, 1 NO contact delayed, 1 NC contact delayed
Nominal voltageAC 230 V
Time range0,2 - 6 min


Product data sheet
Datasheet for Dold 0010480, EAN: 4030641104801

Questions & answers

What is the delivery time of Dold 0010480 AA7610.22 AC 50/60 Hz 230 V 0.2–6 M time relay delayed pickup ?

The article Dold 0010480 AA7610.22 AC 50/60 Hz 230 V 0.2–6 M time relay delayed pickup is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0010480 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0010480 AA7610.22 AC 50/60 Hz 230 V 0.2–6 M time relay delayed pickup always at the best possible price. We can give you a discount of 2% on Dold 0010480 AA7610.22 AC 50/60 Hz 230 V 0.2–6 M time relay delayed pickup if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of Dold 0010480 AA7610.22 AC 50/60 Hz 230 V 0.2–6 M time relay delayed pickup we can offer you a price of 325,19 EUR per piece. The more you buy, the cheaper the article will be.
