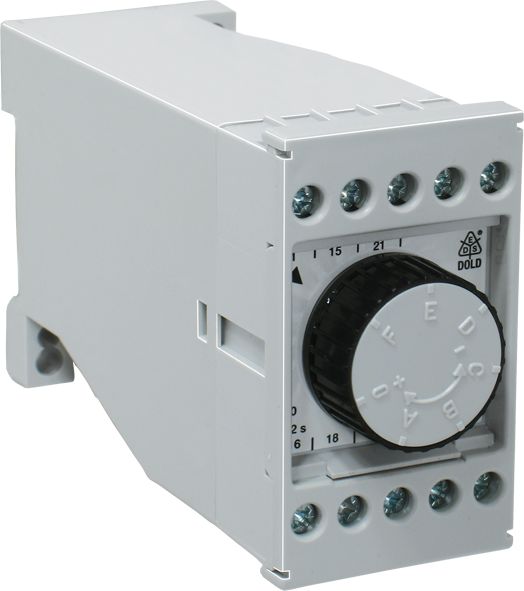

Dold 0010466 AA7512.32/001 DC24V 0.2-30S time relay delayed-on

Your rating:
Average rating
product review for Dold 0010466 AA7512.32/001 DC24V 0.2-30S time relay delayed-on
( 4.5 / 5 ) 11 ratings
Dold 0010466
This image may differ from the desired article.
Dold 0010466Dold 0010466
334,89 EUR
( 398,52 EUR incl. VAT )
≈ £280.30  |  ≈ $368.04
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0010466 AA7512.32/001 DC24V 0.2-30S time relay delayed-on
Datasheet:file_download Download
Lieske Part No.:624626
Mfg Part No: 0010466
UPC/EAN: 4030641104665
Weight:0.335 kg
Type:AA7512.32/001 DC24V 0,2-30S
Graduated prices net
From piecesPrice per pieces
4322,33 EUR
8309,77 EUR
12297,21 EUR
16284,66 EUR

Product information for Dold 0010466:

The Dold time relay AA7512.32/001 DC24V 0,2-30S is a delayed-action industrial time relay for use in enclosures. It is used for time-delayed control of electrical loads and operates on a DC voltage of 24 V. The delay is achieved via a pneumatic time element, implemented by a bellows, which is compressed by a magnetic system. The time delay is determined by an adjustable control system that regulates the expansion of the bellows, thereby actuating the main contact. The device is specified according to EN 61812-1 and offers a repeat accuracy of ≤ ± 5 % of the range end value.

Applications
This time relay is suitable for applications in industrial automation technology where a precise, delayed switching function is required. Typical applications include motor control, lighting systems, pumps, or other electrical consumers where timing coordination of switching operations is necessary. The width of 45 mm allows for compact mounting in standard enclosures. The operating temperature ranges from -10 °C to +55 °C, enabling use in dry rooms and enclosed switch cabinets.

Functions and Features in Detail
The relay features two changeover contacts: one instantaneous and one delayed. The instantaneous contact switches immediately when the relay is energized, while the delayed contact is actuated only after the set delay time (0.2 to 30 seconds). The contacts are made of AgNi (silver-nickel), ensuring high switching capacity and long service life. The electrical life expectancy is up to 1.2 million switching operations at a switching frequency of 1500 operations per hour and 30 % of switching capacity. The mechanical life expectancy exceeds 3 million switching operations.

Technology Explained Simply
The delay function is implemented via a pneumatic system, where a bellows is compressed by a magnetic field. When the magnetic system is de-energized, the bellows expands slowly, creating the delay time. The time can be adjusted continuously within the range of 0.2 to 30 seconds. The contact response time is less than 50 ms, and the release time is less than 25 ms. The rated duty cycle is continuous operation, and the device is designed for operation at altitudes up to 2000 m above sea level.

Compatibility and Accessories
The relay is designed for a rated voltage of DC 24 V and can be mounted in enclosures with DIN 46199-5 terminal arrangement. The terminals are rated for wire cross-sections of 2 x 2.5 mm² (solid) or 2 x 1.5 mm² (stranded). The mounting spacing for the DC version must not be less than 8 mm. The housing is made of thermoplastic with V0 flammability rating according to UL Subj. 94. The housing protection rating is IP 40, and the terminals have an IP 40 rating.

Mounting and Installation
Mounting is performed in enclosed enclosures or switch cabinets in dry rooms. The terminals are arranged according to DIN 46199-5, with connection terminals A1 (L/+) and A2 (N/-) designated for supply voltage. Contacts 15, 16, 18 are for the delayed changeover, while 21, 22, 24 are for the instantaneous changeover. The delay time is adjusted via the control system on the device.

Operational Advantages
The pneumatic time element makes the relay insensitive to electromagnetic influences, ensuring reliable operation in electromagnetically noisy environments. The high repeat accuracy and long contact life ensure stable and low-maintenance operation. The continuous adjustability of the delay time allows flexible adaptation to different requirements. Compliance with EN 61812-1 ensures conformity with applicable safety and functional requirements for time relays.

Technical data
Enclosure designSwitch cabinet
Output contacts1 C/O contact
Time function(s)On-delay
Width45 mm
TypeAA 7512
Variant
Contact equipping1 changeover contact undelayed, 1 changeover delayed
Nominal voltageDC 24 V
Time range0,2 - 30 s
VariantPneumatic time element


Product data sheet
Datasheet for Dold 0010466, EAN: 4030641104665
