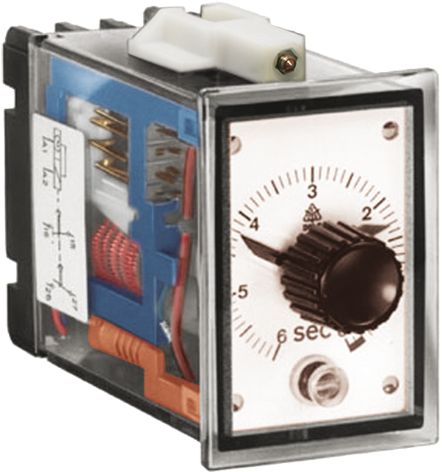

Dold 0006841 EC7610.21 AC 50/60 Hz 230 V 2–60 H time relay delayed operation
|
372,50 EUR |
|||||||||||
|
( 443,28 EUR incl. VAT ) ≈ £311.78 | ≈ $409.38 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 1312745 | ||||||||||
| Mfg Part No: | 0006841 | ||||||||||
| UPC/EAN: | 4030641068417 | ||||||||||
| Weight: | 0.405 kg | ||||||||||
| Type: | EC7610.21 AC50/60HZ 230V 2-60H | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Dold 0006841:
Applications
This time relay is designed for industrial applications where precise, time-controlled switching functions are required. Typical applications include the control of pumps, fans, lighting systems or other installations where delayed switching or time-controlled sequences of switching operations are necessary. The robust construction and operating temperature range of -20 °C to +55 °C make it suitable for demanding environments.
Functions and Equipment in Detail
The device features contact configuration with one delayed open contact and one delayed close contact. The contacts are made of AgNi with a gold plating of 0.2 μm, ensuring high switching capacity and long service life. The rated operating voltage is AC 250 V, and the contacts have an operating time of < 35 ms and a release time of < 60 ms. The electrical life is 1 x 10⁵ switching operations at 3 A/AC 230 V and 5 x 10⁵ switching operations at 1 A/AC 230 V. The mechanical life exceeds 30 x 10⁶ switching operations or more than 15,000 operating hours.
Technology Explained Simply
The time relay operates purely mechanically, with the delay time generated by a mechanical time delay mechanism. Adjustment is performed via a continuously variable rotary switch, which displays the delay time on a scale. The time progression indicator with a red pointer allows visual monitoring of the time course. The reset time is less than 150 ms, meaning the device is quickly ready for use again after switching off. The rated power consumption is 5 VA, and the device is designed for continuous operation.
Compatibility and Accessories
The time relay is intended for front panel mounting and has a width of 48 mm. The front face measures 48 x 72 mm. It is compatible with other devices from the MINTIMER series, such as AA 7610 and EF 7610, and can be integrated into existing control systems. The contacts are rated for switching capacity according to AC 15, with a maximum switching capacity of 3 A at AC 230 V. The short-circuit withstand capability is defined by a maximum fuse rating of 10 A gG/gL.
Mounting and Installation
The device is installed in a front panel with a minimum width of 48 mm. Mounting is done by inserting into a corresponding cutout, with electrical connections made at terminals A1-A2 (input) and 15-16, 27-28 (output). The connection terminals are designed for secure connections. The operating altitude is limited to a maximum of 2000 m above sea level.
Operational Advantages
The continuous adjustment of the delay time over a wide range from 2 to 60 hours allows flexible adaptation to different applications. The high repeatability and robust mechanical construction ensure reliable operation over long periods. The time progression indicator facilitates monitoring and maintenance. The device complies with standard EN 61812-1 and is suitable for use in industrial control systems. EMC requirements are met, including immunity to static discharge, HF radiation, and fast transients.
Functions and Equipment in Detail
The contact configuration includes one delayed open contact and one delayed close contact. The contacts are rated for a rated operating voltage of AC 250 V. The thermal current rating is 4 A, with a value of 10 A achievable at 20 °C and rated voltage. The switching capacity according to AC 15 is 3 A/AC 230 V. The electrical life is 1 x 10⁵ switching operations at 3 A/AC 230 V and 5 x 10⁵ switching operations at 1 A/AC 230 V. The mechanical life exceeds 30 x 10⁶ switching operations or more than 15,000 operating hours. The permissible switching frequency is 3000 switching operations per hour.
Compatibility and Accessories
The device is part of the MINTIMER series and can be combined with other models such as AA 7610 and EF 7610. The front panel dimensions of 48 x 72 mm allow integration into standard control panels. The contacts are rated for switching capacity according to AC 15, with a maximum switching capacity of 3 A at AC 230 V. The short-circuit withstand capability is defined by a maximum fuse rating of 10 A gG/gL.
Mounting and Installation
The device is installed in a front panel with a minimum width of 48 mm. Mounting is done by inserting into a corresponding cutout, with electrical connections made at terminals A1-A2 (input) and 15-16, 27-28 (output). The connection terminals are designed for secure connections. The operating altitude is limited to a maximum of 2000 m above sea level.
Operational Advantages
The continuous adjustment of the delay time over a wide range from 2 to 60 hours allows flexible adaptation to different applications. The high repeatability and robust mechanical construction ensure reliable operation over long periods. The time progression indicator facilitates monitoring and maintenance. The device complies with standard EN 61812-1 and is suitable for use in industrial control systems. EMC requirements are met, including immunity to static discharge, HF radiation, and fast transients.
| Technical data | |
| Enclosure design | Front panel mounting |
| Output contacts | 1 NC contact, 1 NO contact |
| Time function(s) | On-delay |
| Width | 48 mm |
| Type | EC 7610 |
| Variant | |
| Contact equipping | 1 NC contact delayed, 1 NO contact delayed |
| Nominal voltage | AC 230 V |
| Time range | 2 - 60 h |
