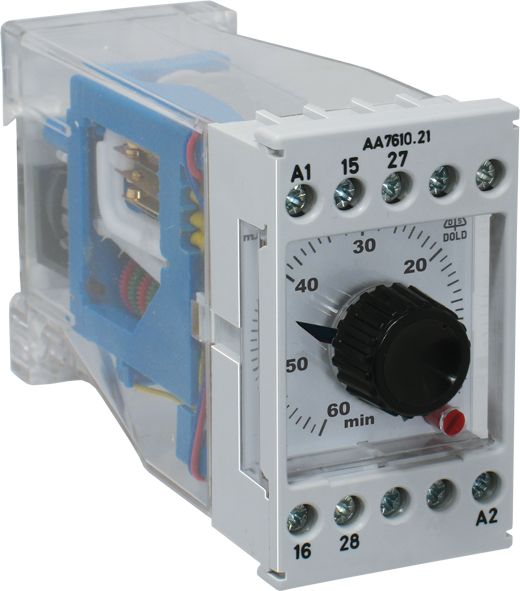

Dold 0006352 AA7610.22/034 AC 50/60 Hz 230 V 120 M/6 M time relay delayed operation

Your rating:
Average rating
product review for Dold 0006352 AA7610.22/034 AC 50/60 Hz 230 V 120 M/6 M time relay delayed operation
( 4.4 / 5 ) 17 ratings
Dold 0006352
This image may differ from the desired article.
330,14 EUR
( 392,87 EUR incl. VAT )
≈ £276.33  |  ≈ $362.82
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0006352 AA7610.22/034 AC 50/60 Hz 230 V 120 M/6 M time relay delayed operation
Datasheet:file_download Download
Lieske Part No.:660403
Mfg Part No: 0006352
UPC/EAN: 4030641063528
Weight:0.405 kg
Type:AA7610.22/034 AC50/60HZ230V 120M/6M
Graduated prices net
From piecesPrice per pieces
4325,19 EUR
8320,24 EUR
12315,28 EUR
16310,33 EUR

Product information for Dold 0006352:

The Dold time relay AA7610.22/034 is a delayed-action relay of the MINTIMER series, designed for use in industrial control systems. It is used for time-controlled switching of devices and components, where the delay after relay activation is programmed. Applications include, for example, controlled starting of motors or time-controlled activation of system components to minimize load peaks or mechanical stress. The device features a purely mechanical timing mechanism, which is adjusted via continuous rotary switches, allowing for simple and precise adjustment of the delay time.

Applications
This time relay is designed for use in enclosures and is suitable for applications requiring a time-delayed switching function. Typical applications include controlling pumps, fans, lighting systems, or other electrical loads where immediate switching is not desired or technically inappropriate. The delay function enables an orderly sequence of switching operations in complex systems, thereby increasing operational safety.

Functions and Equipment in Detail
The device features contact configuration with one instantaneous close contact, one delayed close contact, and one delayed open contact. The output contacts are rated for an operating voltage of AC 250 V and have a switching capacity according to AC 15 of 3 A at AC 230 V. The contact materials consist of AgNi with a gold plating of 0.2 μm, ensuring high switching durability and corrosion resistance. The contact response time is less than 35 ms, and the reset time is less than 60 ms. The repeatability is ≤ ± 0.5 % of the scale end value, with a permissible deviation of ≤ ± 1 % within the 6-second range.

Technology Explained Simply
The timing mechanism is purely mechanical, offering high reliability and independence from electronic components. The delay time is adjusted via a continuous rotary switch positioned on an absolute scale with a black adjustment pointer. The current delay time is indicated by a red pointer on the device scale. The reset time is less than 150 ms, meaning the relay is quickly ready for use again after deactivation. The rated voltage is AC 230 V at a rated frequency of 50/60 Hz, with a voltage range between 0.8 and 1.1 times the rated voltage. The rated power consumption is 5 VA.

Compatibility and Accessories
The time relay is designed for use in enclosures and complies with standard EN 61812-1. It is available in a width of 45 mm, making it suitable for standard control panels. The contact configuration allows integration into existing circuits, with delayed and instantaneous contacts being combinable flexibly. Devices in the MINTIMER series are available in various variants, with the AA 7610 series representing the most compact version with a width of 45 mm. EMC requirements are met according to IEC/EN 61000-4-2 to -4-6, including radio frequency interference suppression according to EN 55011, Class B.

Mounting and Installation
Mounting is done in an enclosure, with the 45 mm width enabling standard installation in DIN or enclosure systems. The connection terminals are designed for cable connections, with a maximum switching frequency of 3000 operations per hour. The mechanical life expectancy exceeds 30 million switching operations or more than 15,000 operating hours. The operating temperature range is between -20 °C and +55 °C, and the storage temperature range is between -20 °C and +65 °C. The operating altitude is limited to a maximum of 2000 m above sea level.

Advantages in Operation
The time relay offers a wide adjustment range for the delay time, from 6 minutes to 120 minutes. The simple adjustment via the continuous rotary switch allows precise adaptation to the specific application. The purely mechanical timing ensures high operational reliability and low maintenance. The timing indication via the red pointer on the scale facilitates monitoring of the switching process. The contact configuration with delayed and instantaneous contacts enables flexible switching configurations. Compliance with standard EN 61812-1 and EMC conformity ensure reliability in industrial environments.

Technical data
Enclosure designSwitch cabinet
Output contacts1 NC contact, 1 NO contact
Time function(s)On-delay
Width45 mm
TypeAA 7610
Variant
Contact equipping1 NO contact, 1 NO contact delayed, 1 NC contact delayed
Nominal voltageAC 230 V
Time range120 min / 6 min
VariantWith pre contact: delayed, closing


Product data sheet
Datasheet for Dold 0006352, EAN: 4030641063528
