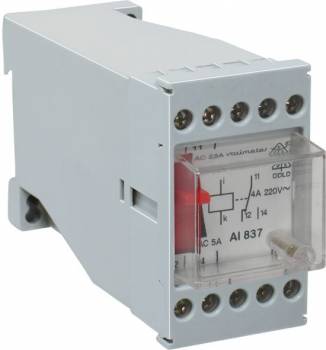

Dold 0005863 AI 837 AC 50/60 Hz 0.5–1 A undercurrent relay

Your rating:
Average rating
product review for Dold 0005863 AI 837 AC 50/60 Hz 0.5–1 A undercurrent relay
( 4.3 / 5 ) 6 ratings
Dold 0005863
This image may differ from the desired article.
298,43 EUR
( 355,13 EUR incl. VAT )
≈ £249.79  |  ≈ $327.97
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0005863 AI 837 AC 50/60 Hz 0.5–1 A undercurrent relay
Datasheet:file_download Download
Lieske Part No.:772151
Mfg Part No: 0005863
UPC/EAN: 4030641058630
Weight:0.625 kg
Type:AI837AC50/60HZ0,5-1A
Graduated prices net
From piecesPrice per pieces
4293,95 EUR
8289,48 EUR
12285,00 EUR
16280,52 EUR

Product information for Dold 0005863:

The Dold undercurrent relay AI 837 AC50/60HZ0,5-1A is a single-phase measuring relay designed for use in enclosures, intended for monitoring alternating current circuits in the range of 0.5 to 1 A at 50/60 Hz. It provides a signal when the current falls below a set dropout value and operates without auxiliary voltage. The relay's scale is adjusted to the dropout value, meaning the measured value must exceed the dropout value divided by the dropout ratio before the relay operates. This enables precise and reliable current monitoring in industrial installations.

Applications
This relay is designed for use in industrial control and protection systems where continuous monitoring of current flow is required. Typical applications include monitoring motors, pumps, heating systems, or other electrical consumers, where a sudden drop in current may indicate a fault or interruption. The mounting width of 45 mm allows for compact installation in standard control panels.

Functions and Features in Detail
The device features a single changeover contact as the output contact, which switches state when the relay operates. The operating threshold is adjustable continuously and internally within the device, allowing precise adaptation to specific applications. The hysteresis, or dropout ratio, is approximately 0.8 at the beginning of the scale and 0.9 at the end for alternating current. For direct current with residual ripple below 5 %, the hysteresis is approximately 0.6 at the beginning of the scale and 0.7 at the end. The repeatability is ≤ ±2 % for alternating current and ≤15 % for direct current.

Technology Explained Simply
The relay operates without external auxiliary voltage and draws power directly from the monitored circuit. The internal resistance of the relay is 2.52 Ohm for the measuring range of 0.5–1 A. The switching delay is approximately 100 ms, which is sufficient for many industrial applications. If required, the delay time can be extended by connecting a time or delay relay in series. The thermal rating (Ith) is 6 A, indicating the relay's continuous load capacity.

Compatibility and Accessories
The relay is compliant with IEC/EN 60255-1 and designed for use in industrial environments. For measuring ranges above 16 A, it can be combined with current transformers (e.g., type KSW 73 from Ritz Instrument Transformers GmbH) or, for direct current, with a shunt. The measuring range extension is achieved by inserting appropriate components, where the length and cross-section of the connecting wires can affect measurement accuracy. The data sheet specifications refer to a connecting wire with a resistance of approximately 0.5 mΩ at 20 °C.

Mounting and Installation
The relay is mounted in enclosures and requires a mounting width of 45 mm. The terminal connections are designed for direct connection to the power supply and control unit. The terminal markings are i, k for the current input and 11, 12, 14 for the changeover contact. Mounting is typically done in DIN or enclosure construction.

Operational Advantages
The relay offers high operational reliability due to the continuous adjustment of the operating threshold and a high electrical life of up to 5 million switching operations. The rated power consumption is below 18 VA, ensuring efficient power usage. The overload capacity is 1.2 times the scale end value for direct current and 1.0 times for alternating current during continuous operation. For short durations (1 second), the relay can be loaded up to 2.0 times the scale end value. The rated switching capacity is up to 4 A at 24 V for alternating voltage and up to 1 A at 24 V for direct voltage, depending on the load characteristics.

Technical data
1- / 3-phase1
Auxiliary voltageWithout
Enclosure designSwitch cabinet
Output contacts1 C/O contact
Width45 mm
TypeAI 837
Variant
Contact equipping1 changeover contact
Measuring rangeAC 50/60 Hz 0,5 - 1 A


Product data sheet
Datasheet for Dold 0005863, EAN: 4030641058630
