Dold 0004246 EC7616.32 AC 50/60 Hz 230 V 0.15 s–30 h time relay delayed operation

Your rating:
Average rating
product review for Dold 0004246 EC7616.32 AC 50/60 Hz 230 V 0.15 s–30 h time relay delayed operation
( 4.5 / 5 ) 32 ratings

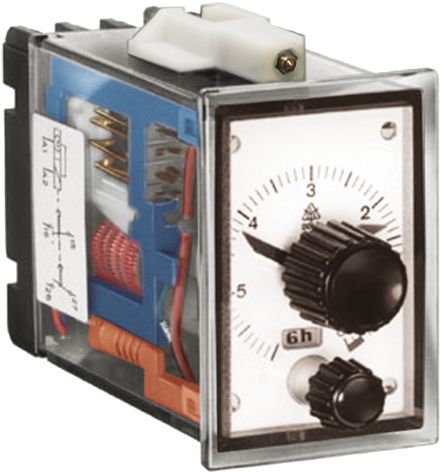

Dold 0004246
This image may differ from the desired article.
303,91 EUR
( 361,65 EUR incl. VAT )
≈ £254.37  |  ≈ $334.00
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0004246 EC7616.32 AC 50/60 Hz 230 V 0.15 s–30 h time relay delayed operation
Datasheet:file_download Download
Lieske Part No.:535954
Mfg Part No: 0004246
UPC/EAN: 4030641042462
Weight:0.405 kg
Type:EC7616.32AC50/60HZ230V0,15S-30H
Graduated prices net
From piecesPrice per pieces
4299,35 EUR
8294,79 EUR
12290,23 EUR
16285,68 EUR

Product information for Dold 0004246:

The Dold time relay EC7616.32AC50/60HZ230V0,15S-30H is a delayed-on industrial time relay from the MINITIMER series, designed for controlling devices and systems with a predefined delay time. It is used, for example, to account for the individual starting behaviour of motors or for time-controlled activation of switching operations in industrial processes. The device operates using a purely mechanical timing mechanism, which can be easily and precisely adjusted via stepless rotary switches on the front panel.

Applications
This time relay is suitable for applications in industrial environments where a time-delayed switching function is required. Typical applications include controlling pumps, fans, lighting systems, or other electrical loads where immediate switching is not desired. The delay can be set from 0.15 seconds up to 30 hours, enabling flexible use in various system configurations.

Functions and Features in Detail
The device features two output contacts: one delayed changeover contact and one immediate changeover contact. The delayed contacts switch only after the set delay time has elapsed, while the immediate contacts switch instantly upon activation of the control voltage. The timing progress is indicated by a red pointer on the device scale, visually displaying the advancement of the delay time. A switching position indicator is also integrated, which is available for the EC 7616 variant. The repeatability accuracy is ≤ ± 0.5 %, with an allowable deviation of ≤ ± 1 % in the range of 3 and 6 seconds.

Technology Explained Simply
The time control is based on a purely mechanical principle driven by a synchronous motor. The delay time is selected via a stepless rotary switch on the front panel, which allows six switchable time ranges. The nominal voltage is AC 230 V, and the frequency can be switched between 50 Hz and 60 Hz, with the switching performed on the rear of the device using a screwdriver. The time function is delayed-on, meaning the switching function is only activated after the set time has elapsed.

Compatibility and Accessories
The time relay is designed for front panel mounting and has a width of 48 mm. The front face measures 48 x 72 mm. It is compatible with other devices from the MINITIMER series, such as AA 7616, EF 7616, and EH 7616, which have different widths and front face dimensions. Control is achieved via terminals A1-A2 for the operating voltage and optionally via B1-B2 for the control voltage, with standardized terminal markings. The contacts are configured as changeover contacts, with delayed contacts (15-16, 27-28) and immediate contacts (31-32, 43-44) clearly separated.

Mounting and Installation
The device is mounted into a front panel, taking into account the width of 48 mm and the front face dimensions of 48 x 72 mm. Mounting is done by securing the device to the panel, with the connection terminals for control voltage (A1-A2) and output contacts (15-16, 27-28, 31-32, 43-44) connected according to the circuit diagrams. Frequency switching is performed on the rear of the device using a screwdriver. The delay time is adjusted via the rotary switch on the front panel.

Operational Advantages
The time relay offers a wide adjustment range from 0.15 seconds to 30 hours, providing high flexibility in application. The simple operation via the stepless rotary switch and the visual timing indicator facilitate setting and monitoring. The purely mechanical timing mechanism ensures high reliability and repeatability. The switching position indicator allows for quick verification of the switching state. The device complies with standard EN 61812-1 for delayed-on time relays.

Technical data
Enclosure designFront panel mounting
Output contacts1 C/O contact
Time function(s)On-delay
Width48 mm
TypeEC 7616
Variant
Contact equipping1 changeover contact delayed, 1 changeover undelayed
Nominal voltageAC 230 V
Time range0,15 s - 30 h


Product data sheet
Datasheet for Dold 0004246, EAN: 4030641042462

Questions & answers

What is the delivery time of Dold 0004246 EC7616.32 AC 50/60 Hz 230 V 0.15 s–30 h time relay delayed operation ?

The article Dold 0004246 EC7616.32 AC 50/60 Hz 230 V 0.15 s–30 h time relay delayed operation is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0004246 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0004246 EC7616.32 AC 50/60 Hz 230 V 0.15 s–30 h time relay delayed operation always at the best possible price. We can give you a discount of 2% on Dold 0004246 EC7616.32 AC 50/60 Hz 230 V 0.15 s–30 h time relay delayed operation if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of Dold 0004246 EC7616.32 AC 50/60 Hz 230 V 0.15 s–30 h time relay delayed operation we can offer you a price of 299,35 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
