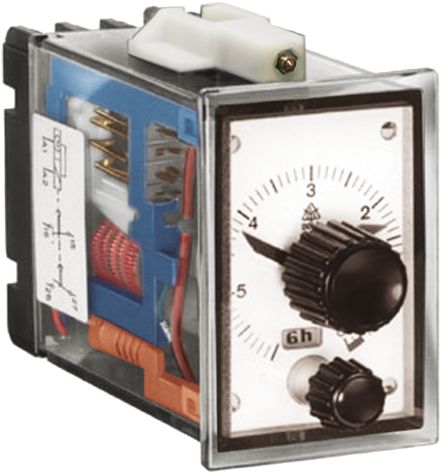

Dold 0004245 EC7616.32 AC 50/60 Hz 230 V 0.15–1000 s time relay delayed operation

Your rating:
Average rating
product review for Dold 0004245 EC7616.32 AC 50/60 Hz 230 V 0.15–1000 s time relay delayed operation
( 4.6 / 5 ) 74 ratings
Dold 0004245
This image may differ from the desired article.
303,91 EUR
( 361,65 EUR incl. VAT )
≈ £254.37  |  ≈ $334.00
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0004245 EC7616.32 AC 50/60 Hz 230 V 0.15–1000 s time relay delayed operation
Datasheet:file_download Download
Lieske Part No.:1312744
Mfg Part No: 0004245
UPC/EAN: 4030641042455
Weight:0.405 kg
Type:EC7616.32 AC50/60HZ 230V 0,15-1000S
Graduated prices net
From piecesPrice per pieces
4299,35 EUR
8294,79 EUR
12290,23 EUR
16285,68 EUR

Product information for Dold 0004245:

The Dold time relay EC7616.32 is an on-delay industrial time relay for front panel mounting, designed for a rated voltage of AC 230 V and a frequency of 50/60 Hz. It is used for time-controlled operation of electrical devices and system components, for example, to account for motor start-up behaviour or for sequential activation of switching operations. The delay time is continuously adjustable in the range of 0.15 to 1000 seconds, with the time function being purely mechanical, thus ensuring a high repeatability accuracy of ≤ ± 0.5 % (≤ ± 1 % in the range of 3 and 6 seconds). The device complies with standard EN 61812-1 and is designed for use in industrial control systems.

Applications
This time relay is suitable for applications requiring a time-delayed switching function, such as in machine building, manufacturing automation, or building automation. It can be used, for example, to delay the switching on of heating or cooling units, to secure motor start-up processes, or to control time-based sequences of process steps. The front panel mounting design allows for easy integration into existing enclosures and control cabinets.

Functions and Features in Detail
The device features two output contacts: one delayed changeover contact (15-16, 27-28) and one instantaneous changeover contact (31-32, 43-44). The delayed contacts switch only after the set delay time has elapsed, while the instantaneous contacts react immediately upon application of operating voltage. A time progress indicator with a red pointer on the device scale enables visual monitoring of the time progression. The switching position indicator is present, except for the EH 7616 variant. The delay time is adjusted via a continuously variable rotary switch on the front, ensuring precise and user-friendly operation.

Technology Explained Simply
The time control is based on a purely mechanical principle, where a synchronous motor achieves the time delay via a mechanical gear train and coupling. The frequency switching between 50 Hz and 60 Hz is performed on the rear of the device by moving a latch with a screwdriver. The width of the device is 48 mm, and the front face measures 48 x 72 mm, enabling compact mounting in standard control panels. The time function is on-delay, meaning the contacts switch only after the set time has elapsed once control voltage is applied.

Compatibility and Accessories
The time relay is part of Dold’s MINITIMER series and can be combined with other models in the series, such as AA 7616, EF 7616, and EH 7616, depending on requirements for width and protection rating. The EF 7616 variant, for example, features a front panel with IP 65 protection, making it suitable for environments with spray water protection. The voltage-loss-safe version is optionally available, retaining the elapsed time during power failure. For short delay times, the quick-start function is recommended, providing higher repeatability accuracy.

Mounting and Installation
Mounting is performed via front panel installation in an enclosure or control cabinet. The connection terminals are clearly marked: A1-A2 are for control and operating voltage, B1-B2 are for control voltage in the voltage-loss-safe version. Contacts 15-16, 27-28 are delayed contacts, while 31-32, 43-44 are instantaneous contacts. The delay time is adjusted via the rotary switch on the front. Frequency switching is performed on the rear of the device.

Advantages in Operation
The combination of wide adjustment range, high repeatability accuracy, and mechanical reliability makes the EC7616.32 a robust and low-maintenance component in industrial control systems. The visual time progress indicator simplifies commissioning and maintenance. Front-side adjustment of the delay time allows for quick adaptation without tools. Compatibility with other models in the MINITIMER series offers flexibility in system design.

Technical data
Enclosure designFront panel mounting
Output contacts1 C/O contact
Time function(s)On-delay
Width48 mm
TypeEC 7616
Variant
Contact equipping1 changeover contact delayed, 1 changeover undelayed
Nominal voltageAC 230 V
Time range0,15 - 1000 s


Product data sheet
Datasheet for Dold 0004245, EAN: 4030641042455
