Dold 0002060 AI 990 lamp tester

Your rating:
Average rating
product review for Dold 0002060 AI 990 lamp tester
( 4.5 / 5 ) 19 ratings

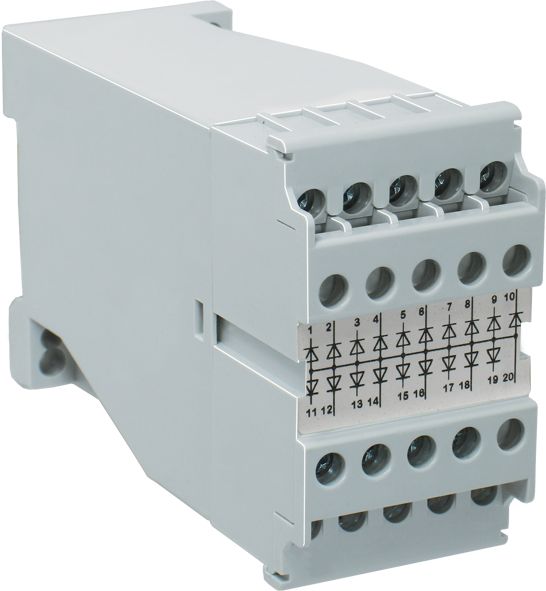

Dold 0002060
This image may differ from the desired article.
113,35 EUR
( 134,89 EUR incl. VAT )
≈ £94.87  |  ≈ $124.57
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0002060 AI 990 lamp tester
Datasheet:file_download Download
Lieske Part No.:1312972
Mfg Part No: 0002060
UPC/EAN: 4030641020606
Weight:0.21 kg
Type:AI 990
Graduated prices net
From piecesPrice per pieces
5111,65 EUR
10109,95 EUR
15108,25 EUR
20106,55 EUR

Product information for Dold 0002060:

The Lamp Tester AI 990 from Dold is a device for monitoring and indicating signals in enclosures. It serves as an aid for visual signaling in industrial operations and is used in measurement technology. The device features a diode group with a common anode, ensuring that the connected signal lamps do not interfere with each other. The design is intended for installation in enclosures, with a width of 45 mm. The maximum number of signal lamps that can be operated with this variant is 9.

Applications

The Lamp Tester AI 990 is used in industrial plants where clear and reliable signal indication is required. It is suitable for applications in process control, machine monitoring, and automation technology. Its use in enclosures enables integrated display of operating states, fault messages, or warnings. The enclosure-compatible design and mounting on a DIN rail make the device suitable for use in standardized electrical installations.

Functions and Equipment in Detail

The device operates with a diode circuit, where the signal lamps are connected via a common anode. This circuit prevents the lamps from interfering with each other, which is particularly important for parallel connections. When operated with alternating voltage, the lamps glow at half brightness, due to the characteristics of the diodes. The rated voltage is AC 250 V, and the rated current per signal lamp is 1 A. The maximum number of signal lamps is limited to 9, which is sufficient for smaller installations or modular systems.

Technology Explained Simply

The diode group in the lamp tester ensures that each connection operates independently. The common anode allows for simple and safe wiring, as all lamps are supplied via a common positive terminal. The diodes protect the lamps from voltage surges and prevent a failure of one lamp from affecting the others. The circuit is designed for continuous operation, enabling uninterrupted use in industrial environments. The operating temperature ranges from -20 °C to +60 °C, making the device suitable for use in demanding climatic conditions.

Compatibility and Accessories

The Lamp Tester AI 990 is compatible with other devices in the INFOMASTER series. There are various variants, including the AI 990.04 with a common cathode and the AI 990.12 with up to 19 signal lamps. Mounting is done on a DIN rail in accordance with IEC/EN 60715, enabling standardized installation in enclosures. The connection terminals are designed for conductor cross-sections of 2 x 2.5 mm² (solid) or 2 x 1.5 mm² (stranded wire with ferrule). The stripping length for conductors is 10 mm, and the tightening torque must not exceed 0.8 Nm.

Mounting and Installation

Mounting is done on a DIN rail, which is typically present in enclosures. The terminals are flat and feature a self-lifting connection washer, enabling a secure and easy connection. The device dimensions are 45 mm (width) × 77 mm (height) × 127 mm (depth). Installation requires no additional tools, except a screwdriver or cable cutter for preparing the conductors. The maximum operating altitude is 2000 m above sea level, allowing use in high-altitude locations.

Advantages in Operation

The Lamp Tester AI 990 provides reliable and clear signal indication, which is important for maintenance and monitoring of installations. The diode circuit ensures stable operation, even with parallel connections. The enclosure has protection class IP 40 and the terminals have IP 40, protecting against mechanical impacts and limited access. Climate resistance according to IEC/EN 60068-1 (20/060/04) and vibration resistance according to IEC/EN 60068-2-6 make the device suitable for industrial environments. The enclosure is made of thermoplastic with V0 behavior according to UL Subject 94, indicating a high flame retardancy class. The device weighs 150 g and is therefore lightweight and compact.

Protection Class and Environmental Conditions

The enclosure of the lamp tester is equipped with protection class IP 40 according to IEC/EN 60529, meaning it is protected against solid foreign objects ≥1 mm and against splashing water from any direction. The terminals have protection class IP 40, providing protection against finger contact and against vertically falling splashing water. The storage temperature ranges from -20 °C to +80 °C, allowing flexible storage. The operating temperature of -20 °C to +60 °C covers most industrial operating conditions.

Technical data
Enclosure designSwitch cabinet
Width45 mm
TypeAI 990
Variant
VariantMaximum 9 signal lamps with common anode


Product data sheet
Datasheet for Dold 0002060, EAN: 4030641020606

Questions & answers

What is the delivery time of Dold 0002060 AI 990 lamp tester ?

The article Dold 0002060 AI 990 lamp tester is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0002060 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0002060 AI 990 lamp tester always at the best possible price. We can give you a discount of 2% on Dold 0002060 AI 990 lamp tester if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Dold 0002060 AI 990 lamp tester we can offer you a price of 111,65 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
