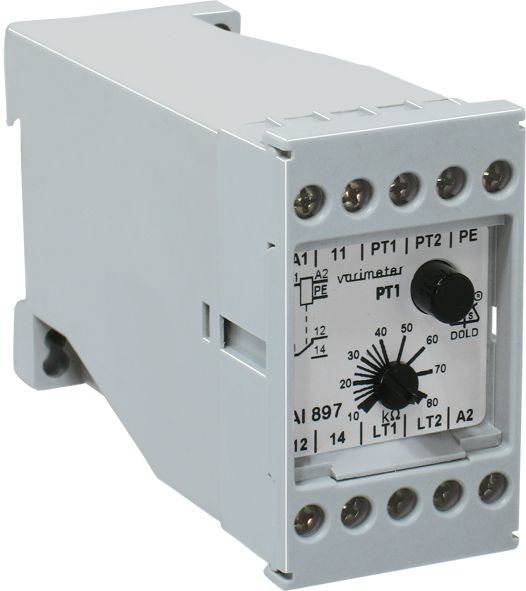

Dold 0001033 AI 897 AC 45-400 Hz 24 V 10-80 kOhm insulation monitor

Your rating:
Average rating
product review for Dold 0001033 AI 897 AC 45-400 Hz 24 V 10-80 kOhm insulation monitor
( 4.5 / 5 ) 6 ratings
Dold 0001033
This image may differ from the desired article.
279,93 EUR
( 333,12 EUR incl. VAT )
≈ £234.30  |  ≈ $307.64
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0001033 AI 897 AC 45-400 Hz 24 V 10-80 kOhm insulation monitor
Datasheet:file_download Download
Lieske Part No.:1583189
Mfg Part No: 0001033
UPC/EAN: 4030641010331
Weight:0.245 kg
Type:AI 897 AC45-400HZ 24V 10-80K-OHM
Graduated prices net
From piecesPrice per pieces
4275,73 EUR
8271,53 EUR
12267,33 EUR
16263,13 EUR

Product information for Dold 0001033:

The AI 897 insulation monitor from Dold is a device for monitoring insulation resistance in ungrounded AC and rotating current networks. It is designed for use in IT systems, where the network voltage is connected via a transformer or another galvanic isolation and no direct earth connection exists. The device operates on the idle current principle, in which the output relay is not activated during normal operation and only switches when the set trigger value is reached. The nominal voltage is AC 24 V in the frequency range of 45 to 400 Hz, and the device is also suitable for other nominal voltages in the range of AC 24 to 500 V. The trigger value is continuously adjustable between 10 and 80 kΩ, with adjustment performed using a screwdriver. The measurement voltage is DC 18 V, and the maximum measurement current is less than 0.1 mA, ensuring minimal load on the monitored network.

Applications

The AI 897 is used in industrial and technical installations where high electrical safety is required, particularly in systems with ungrounded supply, such as in medical facilities, manufacturing technology, or mobile installations. Monitoring is performed by measuring the insulation resistance between the conductors and the protective earth (PE). If the resistance drops below the set trigger value, an alarm is triggered. The application is limited to pure AC and rotating current networks, and for three-phase networks, connection to a single phase is sufficient, as the phases are low-impedance coupled via the supplying transformer, enabling faults to be detected on all phases.

Functions and Equipment in Detail

The device features an adjustable trigger value RAN from 10 to 80 kΩ, set via a screw adjustment. The response delay is less than 4.2 seconds when the resistance drops from infinite to 90 % of the trigger value at a trigger value of 50 kΩ and a capacitance of 1 μF. In case of a sudden short circuit (from infinite to 0 kΩ), the delay is approximately 2 seconds. The hysteresis is approximately 50 % at 50 kΩ, meaning the alarm is only reset when the resistance reaches a higher value, preventing false alarms. The device is programmable for two operating modes: memory behavior (with bridged terminals LT1-LT2) and hysteresis behavior (with non-bridged terminals). An external reset button can be connected to LT1-LT2, as well as an external test button to PT1-PT2. The integrated test button PT is used for functional testing of the device.

Technology Explained Simply

The AI 897 insulation monitor operates on the idle current principle, where the measurement current only flows when a fault occurs. In normal operation, the output relay is deactivated. Measurement is performed via an internal test resistor, equivalent to an earth resistance of less than 10 kΩ. The measurement voltage is DC 18 V, ensuring minimal load on the network. The electrical life expectancy is at least 300,000 switching operations at 10 A and AC 250 V, and the mechanical life expectancy is at least 30 million switching operations. The maximum switching voltage is AC 400 V, and the thermal current Ith is 6 A. The device is designed for continuous operation and consumes approximately 2.5 VA.

Compatibility and Accessories

The AI 897 is suitable for IT systems with nominal voltages from AC 24 to 500 V and frequencies from 45 to 400 Hz. The connection terminals are designed for connection to a protective earth (PE), an external test button (PT1-PT2), and an external reset button (LT1-LT2). The contact configuration consists of a changeover contact rated for circuits up to AC 400 V. The operating temperature range is from -20 °C to +60 °C, and the storage temperature range is from -25 °C to +70 °C. The operating altitude is limited to below 2000 m. The enclosure protection rating is IP 40, protecting against contact with moving parts and solid objects, but not against water. EMC requirements comply with standards IEC/EN 61000-4-2 to -4-6, including immunity to electrostatic discharge (8 kV), high-frequency radiation (10 V/m), and fast transients (2 kV). Radio frequency interference suppression complies with Class B limits according to EN 55011.

Mounting and Installation

The device is designed for installation in enclosures and has a mounting width of 45 mm. Mounting is performed in an enclosure, with terminals A1 and A2 designated for the supply voltage (AC 24 V) and terminals PE for the protective earth. Terminals 11, 12, and 14 are for the alarm indicator relay (1 changeover contact). Programming is done via terminals LT1-LT2: bridging activates memory behavior, while non-bridged terminals activate hysteresis behavior. An external test button can be connected to PT1-PT2, and an external reset button to LT1-LT2. Installation is carried out according to the technical data and instructions in the datasheet.

Advantages in Operation

The AI 897 provides reliable and precise monitoring of insulation resistance in ungrounded networks. The continuous adjustment of the trigger value allows adaptation to the specific requirements of the installation. The idle current principle minimizes network load and prevents false alarms. Programmability for memory behavior and hysteresis behavior enables flexible adaptation to different operating conditions. The integrated test button and the option to connect external buttons facilitate maintenance and functional testing. The high service life and EMC robustness ensure long-term operation even in demanding environments. The device complies with standard IEC/EN 61557-8, which applies to insulation monitors in IT systems.

Technical data
Auxiliary voltageWithout
Enclosure designSwitch cabinet
IMD typeAC
Nominal voltage IT systemAC 24 - 500 V
Response value10 - 80 kΩ
Response value typeAdjustable
Width45 mm
TypeAI 897
Variant
Alarm value10 - 80 kOhm
Contact equipping1 changeover contact
Nominal voltageAC 24 V 45 - 400 Hz
VariantSettable response value


Product data sheet
Datasheet for Dold 0001033, EAN: 4030641010331
