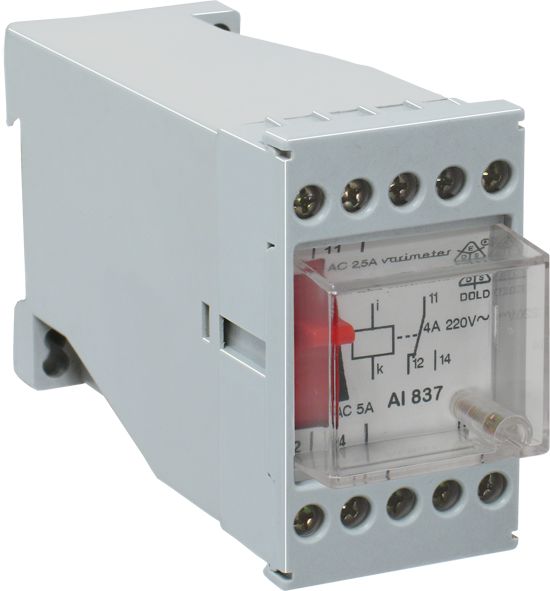

Dold 0000853 AI 837 AC 50/60 Hz 4-8 A undercurrent relay
|
298,43 EUR |
|||||||||||
|
( 355,13 EUR incl. VAT ) ≈ £249.79 | ≈ $327.97 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 1312709 | ||||||||||
| Mfg Part No: | 0000853 | ||||||||||
| UPC/EAN: | 4030641008536 | ||||||||||
| Weight: | 0.625 kg | ||||||||||
| Type: | AI 837 AC50/60HZ 4-8A | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Dold 0000853:
Applications
This relay is used in industrial plants where continuous monitoring of current flow is required, for example in pump control systems, fan installations, or motor monitoring. It responds to underload conditions caused by current dropping below the set value, enabling early reaction to operational faults. The application takes place in enclosures, where the device is directly integrated into the power supply.
Functions and Equipment in Detail
The AI 837 is designed as an undercurrent relay, with the scale adjusted to the dropout value. This means the relay only activates when the current reaches a value higher than the dropout value divided by the dropout ratio (hysteresis). This prevents unwanted switching operations due to minor fluctuations. The setpoint adjustment is continuous and performed internally within the device. The hysteresis is approximately 0.8 at the beginning of the scale and 0.9 at the end for alternating current. For direct current with residual ripple below 5 %, the hysteresis is approximately 0.6 at the beginning and 0.7 at the end of the scale.
Technology Explained Simply
The relay measures the current directly in the circuit and reacts to deviations from the set value. The measurement is performed via input terminals i and k, which are connected into the current circuit. The output contacts 11, 12, and 14 form a changeover contact, which changes its state when the relay activates. The switching delay is approximately 100 ms, enabling a short response time. The electrical life is 5 million switching operations at a load of 30 % of the switching capacity. The device is compliant with IEC/EN 60255-1 and designed for use in industrial environments.
Compatibility and Accessories
The relay is designed for direct measurement in the range of 4 to 8 A. For higher currents, it can be extended via current transformers, for example using a transformer from Ritz Instrument Transformers GmbH, type KSW 73, with a secondary rated current of 5 A. For direct current, a shunt with a range of 8 to 16 A can be connected in parallel to the relay. The specifications for extending the measurement range refer to a supply line with a resistance of approximately 0.5 mΩ, corresponding to a line length of 0.30 m with a cross-section of 10 mm².
Mounting and Installation
The device is mounted in enclosures and directly connected into the current circuit. Terminals i and k serve as current measurement input, while contacts 11, 12, and 14 form the changeover contact. Mounting is performed in standard switchboards with a width of 45 mm. Wiring is carried out according to the circuit diagram in the datasheet. The rated consumption values are below 18 VA for alternating current.
Advantages in Operation
The AI 837 provides reliable current monitoring without external auxiliary voltage. The continuous adjustment of the setpoint allows precise adaptation to the specific application. The high electrical life and low switching delay ensure stable and fast response. Compliance with IEC/EN 60255-1 guarantees adherence to international standards for electrical measuring instruments.
| Technical data | |
| 1- / 3-phase | 1 |
| Auxiliary voltage | Without |
| Enclosure design | Switch cabinet |
| Output contacts | 1 C/O contact |
| Width | 45 mm |
| Type | AI 837 |
| Variant | |
| Contact equipping | 1 changeover contact |
| Measuring range | AC 50/60 Hz 4 - 8 A |
