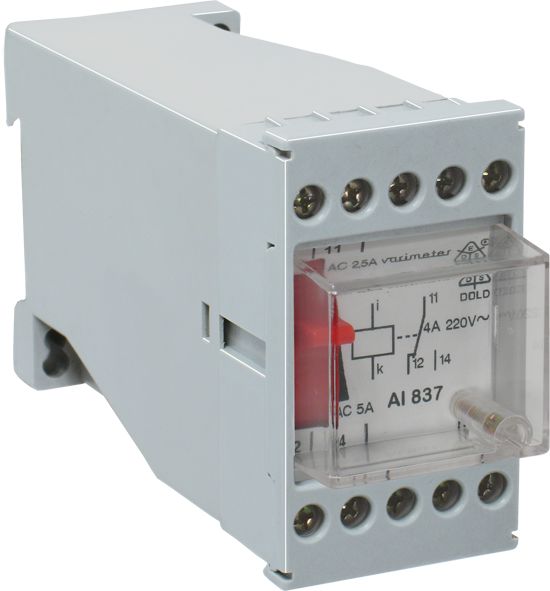

Dold 0000844 AI 837 AC 50/60 Hz 0.8–1.6 A undercurrent relay

Your rating:
Average rating
product review for Dold 0000844 AI 837 AC 50/60 Hz 0.8–1.6 A undercurrent relay
( 4.5 / 5 ) 2 ratings
Dold 0000844
This image may differ from the desired article.
298,43 EUR
( 355,13 EUR incl. VAT )
≈ £249.79  |  ≈ $327.97
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0000844 AI 837 AC 50/60 Hz 0.8–1.6 A undercurrent relay
Datasheet:file_download Download
Lieske Part No.:1774407
Mfg Part No: 0000844
UPC/EAN: 4030641008444
Weight:0.625 kg
Type:AI 837 AC50/60HZ 0,8-1,6A
Graduated prices net
From piecesPrice per pieces
4293,95 EUR
8289,48 EUR
12285,00 EUR
16280,52 EUR

Product information for Dold 0000844:

The Dold undercurrent relay AI 837 AC50/60HZ 0.8-1.6A is a single-phase measuring relay for monitoring alternating current circuits in the range of 0.8 to 1.6 A at a frequency of 50/60 Hz. It is designed to provide a signal when the current falls below a set dropout value and is intended for use in enclosures. The device operates without auxiliary voltage and has a width of 45 mm, making it suitable for standard control panels. The relay's scale is adjusted to the dropout value, ensuring that a signal is only triggered when the current has previously exceeded the dropout value divided by the dropout ratio (hysteresis), thus preventing false triggering.

Applications
This relay is intended for monitoring electrical systems in industrial and technical applications, particularly in systems where interruption of current flow is critical. Typical applications include monitoring pumps, motors, or other consumers that require a minimum current to operate safely. The direct measurement in the range of 0.8 to 1.6 A makes it suitable for small to medium loads.

Functions and Equipment in Detail
The AI 837 features an adjustable pickup value that can be set continuously within the measurement range. The contact configuration includes one changeover contact (1 C/O contact), which reverses the switching state when the relay operates. The hysteresis, or dropout ratio, is approximately 0.8 at the beginning of the scale and increases to about 0.9 in the middle to the end of the scale. This ensures stable switching function without oscillations at slightly fluctuating current values. The repeatability is ≤ ±2 % for alternating current and ≤15 % for direct current.

Technology Explained Simply
The relay measures the current directly in the circuit and responds when the current falls below the set dropout value. The measurement is performed without additional auxiliary voltage, simplifying installation. The internal resistance of the relay is 0.85 Ohm in the measurement range of 0.8–1.6 A, minimizing the load on the measuring circuit. The switching delay is approximately 100 ms, preventing false triggering due to short-term current fluctuations. The electrical life is up to 5 million switching operations at a load of 30 % of the switching capacity.

Compatibility and Accessories
The relay is compliant with IEC/EN 60255-1 and can be used in systems with other devices conforming to this standard. For currents above 16 A, the measurement range can be extended by inserting a current transformer or a shunt. For alternating current, a current transformer with a secondary rated current of 5 A is recommended; for direct current, a shunt in the range of 8–16 A is recommended. The exact technical data for extension are listed in the manufacturer’s datasheet.

Mounting and Installation
The device is mounted in enclosures and requires a width of 45 mm. The connection terminals are designed for direct connection to the current circuits. The pickup value is adjusted via internal adjustment, which can be done without tools. The maximum overload capacity is continuous up to 12 A at 1.2 times the scale end value (direct current) or 1.0 times (alternating current), and short-term (1 s) up to 2.0 times the scale end value.

Operational Advantages
The relay provides reliable current monitoring without additional auxiliary voltage, simplifying installation and maintenance. The high electrical life and low switching delay ensure stable performance in industrial applications. The direct measurement in the range of 0.8–1.6 A enables precise monitoring of smaller loads, while the hysteresis prevents false triggering due to minor fluctuations. Compliance with IEC/EN 60255-1 ensures compatibility with standardized systems.

Rated Consumption and Switching Capacity
The rated consumption is less than 18 VA for alternating current. The switching capacity for alternating voltage (AC) is 24 V to 380 V with a maximum switching current of 4 A (cos φ 1...0.7) and 3 A (cos φ 0.4). For direct voltage (DC), the switching current is 1 A (ohmic) and 0.5 A (inductive) at 24 V. The thermal current rating (Ith) is 6 A.

Approvals and Markings
The device is certified to IEC/EN 60255-1, ensuring compliance with international standards for measuring relays. The approvals are listed in the manufacturer’s datasheet and include the required markings for use in industrial systems.

Functional Safety
The relay’s design ensures high functional safety through hysteresis and precise adjustability of the pickup value. The switching delay of approximately 100 ms prevents false triggering due to short-term current fluctuations. The electrical life of up to 5 million switching operations at 30 % load makes the device suitable for long-term operational conditions.

Application Safety
The relay is designed for use in enclosures and meets the requirements for mechanical and electrical safety. Direct measurement in the current circuit without auxiliary voltage reduces installation complexity and increases system reliability.

Technical data
1- / 3-phase1
Auxiliary voltageWithout
Enclosure designSwitch cabinet
Output contacts1 C/O contact
Width45 mm
TypeAI 837
Variant
Contact equipping1 changeover contact
Measuring rangeAC 50/60 Hz 0,8 - 1,6 A


Product data sheet
Datasheet for Dold 0000844, EAN: 4030641008444
