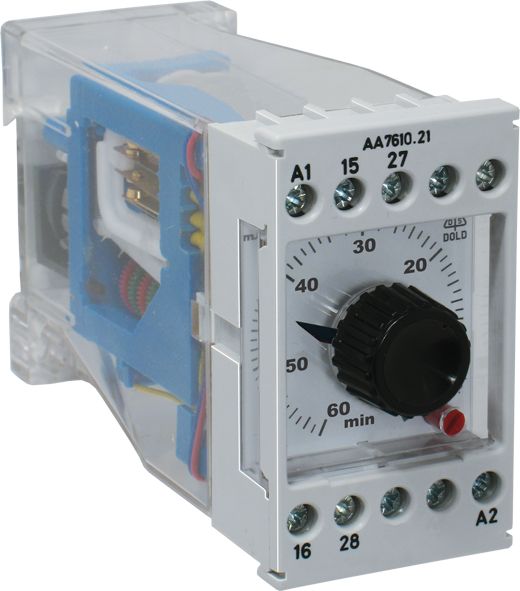

Dold 0000659 AA7610.21 AC 50/60 Hz 230 V 2–60 s time relay delayed operation

Your rating:
Average rating
product review for Dold 0000659 AA7610.21 AC 50/60 Hz 230 V 2–60 s time relay delayed operation
( 4.9 / 5 ) 11 ratings
Dold 0000659
This image may differ from the desired article.
259,87 EUR
( 309,25 EUR incl. VAT )
≈ £217.51  |  ≈ $285.60
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0000659 AA7610.21 AC 50/60 Hz 230 V 2–60 s time relay delayed operation
Datasheet:file_download Download
Lieske Part No.:1313010
Mfg Part No: 0000659
UPC/EAN: 4030641006594
Weight:0.405 kg
Type:AA7610.21 AC50/60HZ 230V 2-60S
Graduated prices net
From piecesPrice per pieces
4255,97 EUR
8252,07 EUR
12248,18 EUR
16244,28 EUR

Product information for Dold 0000659:

The Dold time relay AA7610.21 is a delayed-action relay for use in industrial control systems. It is used for time-controlled switching of devices and systems, where the delay occurs after the input voltage is applied. The unit is designed for a nominal voltage of AC 230 V and operates at a frequency of 50/60 Hz. The delay time is continuously adjustable within a range of 2 to 60 seconds, with adjustment performed via a black pointer on an absolute scale. The repeatability is ≤ ± 0.5 % of the scale end value, with a deviation of ≤ ± 1 % permitted around the 6-second mark. The time progression is indicated by a red pointer on the device scale, visually displaying the progress of the set delay time.

Applications
This time relay is suitable for applications requiring controlled delay when switching loads on. Typical uses include starting electric motors, sequential switching of system components, or delaying switching operations in control systems. The mechanical time control ensures reliable and maintenance-friendly operation without electronic components. The width of 45 mm makes the device suitable for standard enclosure mounting.

Functions and Features in Detail
The contact configuration includes one delayed open contact and one delayed close contact. Both contacts operate only after the set delay time has elapsed. The contacts are made of AgNi with a gold plating of 0.2 μm, ensuring high switching capacity and long service life. The rated operating voltage is AC 250 V, and the relay is designed for a thermal current of 4 A. The switching capacity according to AC 15 is 3 A / AC 230 V. The electrical service life is at least 100,000 switching operations at 3 A and AC 230 V, and 500,000 switching operations at 1 A. The mechanical service life exceeds 30 million switching operations or 15,000 operating hours.

Technology Explained Simply
The relay operates purely mechanically, with the delay time generated by a mechanical time progression. Adjustment is performed via a continuously variable rotary switch, which directly indicates the delay time on the scale. The time progression indicator, shown by the red pointer, allows visual monitoring of the switching process. The reset time is less than 150 ms, ensuring rapid reset after power-off. The contact response time is under 35 ms, and the release time is under 60 ms.

Compatibility and Accessories
The device is designed for use in enclosures and complies with standard EN 61812-1. It is designed for an operating temperature range of -20 °C to +55 °C and can be operated up to an altitude of 2000 m above sea level. The creepage and clearance distances correspond to pollution degree 2 with a rated impulse voltage of 4 kV. EMC requirements are met according to IEC/EN 61000-4-2 to -4-6, including immunity to electrostatic discharge (8 kV), high-frequency radiation (10 V/m), and fast transients (4 kV). Radio frequency interference suppression complies with emission limit class B according to EN 55011.

Mounting and Installation
The time relay is mounted in standard enclosures. The width of 45 mm allows installation in standard mounting rails. The connection terminals are designed for wiring, with a maximum fuse rating of 10 A gG / gL. Mounting requires no additional tools; the terminal assignment is shown in the data sheet.

Operational Advantages
The purely mechanical time control offers high reliability and easy maintenance. The continuous adjustment over a wide range allows precise adaptation to different requirements. The visual time progression indicator simplifies commissioning and maintenance. The high mechanical and electrical service life reduces replacement needs and operating costs. Compliance with standard EN 61812-1 and EMC requirements ensures safe and reliable operation in industrial environments.

Technical data
Enclosure designSwitch cabinet
Output contacts1 NC contact, 1 NO contact
Time function(s)On-delay
Width45 mm
TypeAA 7610
Variant
Contact equipping1 NC contact delayed, 1 NO contact delayed
Nominal voltageAC 230 V
Time range2 - 60 s


Product data sheet
Datasheet for Dold 0000659, EAN: 4030641006594
