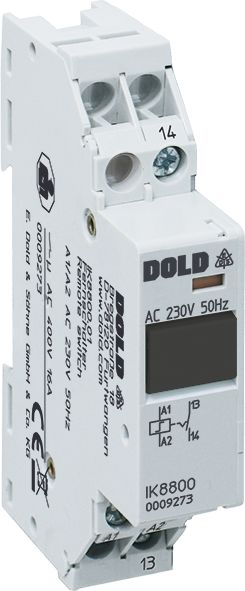

Dold 0000611 IK8800.12 AC50Hz 240V remote switch
|
89,42 EUR |
|||||||||||
|
( 106,41 EUR incl. VAT ) ≈ £74.84 | ≈ $98.27 plus delivery charges: 55,00 € |
|||||||||||
| On order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 1001305 | ||||||||||
| Mfg Part No: | 0000611 | ||||||||||
| UPC/EAN: | 4030641006112 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
| Type: | IK8800.12 AC50HZ 240V | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Dold 0000611:
Applications
The remote switch is intended for applications requiring remote switching functions, for example in lighting control systems, room switches, or other installations where multiple switching operations are managed via a central control device. Due to impulse operation, energy consumption is low, which particularly reduces wiring effort in installations with multiple room switches. Mounting is on a DIN rail, and in impulse mode, devices can be arranged closely together. For continuous switching operations, a mounting distance of 7 mm between relays is required.
Functions and Equipment in Detail
The device features contact configuration with 2 changeover contacts, with a maximum contact configuration of up to 4 changeover contacts possible. The contacts are rated for a nominal voltage of AC 240 V at 50 Hz. The response time is less than 30 ms, ensuring a rapid reaction to control signals. The switching position is indicated by a red indicator symbol, visible when the output contacts are activated. Manual actuation is performed via a button mounted on the device, allowing contacts to be operated independently of the electrical signal.
Technology Explained Simply
Impulse operation means the device consumes power only briefly to actuate the contacts and then returns to rest position. This results in low energy consumption and reduces heat generation within the device. The thermal current rating (Ith) is 16 A, indicating the maximum current the device can withstand continuously. The electrical life at resistive load and 500 switching operations per hour is 10 x 10⁴ switching operations at 16 A. The mechanical life is 3 x 10⁶ switching operations, ensuring high operational reliability over a long period.
Compatibility and Accessories
The device is designed for mounting on a DIN rail and can be combined with other remote switches from the IK 8800 or IL 8800 series in systems. The connection terminals are intended for signals A1 (control signal L or DC+) and A2 (neutral conductor N or DC-), as well as for load connections (13/14, 23/24, etc.). The wiring diagrams in the datasheet show the various contact arrangements, which vary depending on the type (e.g., IK8800.11, IK8800.12). The devices are designed for an operating temperature range of -20 °C to +45 °C and can be used up to an altitude of 2000 m above sea level.
Mounting and Installation
Mounting is on a DIN rail (DIN rail) using integrated retaining clips. In impulse mode, devices can be mounted closely together, while for continuous switching operations, a spacing of 7 mm between relays must be maintained. The connection terminals are designed for connecting control lines and loads. The minimum switching time is 50 ms to ensure reliable actuation of the contacts.
Operational Advantages
Impulse operation leads to low energy consumption and reduced heat generation, extending the device's service life. Manual actuation allows for manual switching even if the control signal fails. The switching position indicator facilitates diagnosis and maintenance. The compact design with a width of 17.5 mm enables dense mounting, reducing space requirements in enclosures. The high mechanical life of 3 million switching operations ensures reliable performance over a long period.
| Technical data | |
| Output contacts max. | 4 C/O contacts |
| Thermal current Ith | 16 A |
| Width | 17,5 mm |
| Type | IK 8800 |
| For top hat rail mounting | |
| Variant | |
| Contact equipping | 2 changeover contacts |
| Nominal voltage | AC 240 V 50 Hz |
Questions & answers
What is the delivery time of Dold 0000611 IK8800.12 AC50Hz 240V remote switch?
The article Dold 0000611 IK8800.12 AC50Hz 240V remote switch is currently not in stock but has been backordered.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0000611 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Dold 0000611 IK8800.12 AC50Hz 240V remote switch always at the best possible price. We can give you a discount of 2% on Dold 0000611 IK8800.12 AC50Hz 240V remote switch if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 pieces of Dold 0000611 IK8800.12 AC50Hz 240V remote switch we can offer you a price of 85,40 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
