Circuit breakers with residual current protection (CBR) switch high currents, protect equipment, cables and lines from overcurrent and people from electric shock. DFL 8 are compact devices with an integrated auxiliary switch and connection terminals for large cable cross-sections. Type B switches are sensitive to all currents at frequencies from 0 Hz (smooth DC residual currents) to 150 kHz. They are resistant to increased surge currents and storms. Switches with the SK characteristic curve stand for residual current protection and high system availability. They are characterized by a lower response sensitivity at higher frequencies. Undesired tripping due to leakage currents is thus largely avoided. Switches of this variant have a fixed rated residual current of 30 mA for personal protection. They therefore ensure fault and fire protection as well as additional protection (personal protection, protection against direct contact). Devices of version V are designed for special voltages. Properties: fixed rated residual current of 0.03 A, rated currents from 100 A to 250 A, rated voltage 290 V, 500 V AC, four-pole, residual current detection for smooth direct current as well as alternating and pulsating direct currents, high tolerance to fluctuations in the auxiliary voltage when detecting residual currents type B, mains and auxiliary voltage independent tripping for residual currents of type A and in the event of overcurrent, high short-circuit switching capacity, connection terminals up to 185 mm2, high surge current strength, i.e. low tendency to false tripping due to transient residual currents, thresholds for instantaneous and delayed overcurrent tripping adjustable, auxiliary switch integrated, type of mounting: fastening on mounting plate, installation position as desired, feed-in from below, areas of application: power supplies in purpose-built buildings and industrial plants with TN-S, TT and TN-CS networks with high short-circuit power, in IT networks the Residual current tripping of the CBR can be provided for shutdown in the event of a second earth fault. Due to its universal current sensitive residual current tripping, this universal current sensitive CBR is particularly suitable for protecting systems with electronic equipment that are not galvanically isolated from the mains on the input side. Use for residual current protection in TN-C networks is excluded.

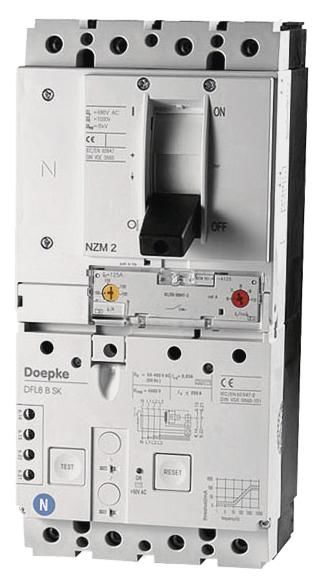

Type: DFL8 160-4/0,03-B SK V500
Questions & answers
What is the delivery time of Doepke DFL8 160-4/0.03-B SK V500 circuit breaker with FI 4p 160A 09184774?
The article Doepke DFL8 160-4/0.03-B SK V500 circuit breaker with FI 4p 160A 09184774 is currently
not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days.
The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time.
Just send us an inquiry about the desired quantity of Doepke 09184774 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Doepke DFL8 160-4/0.03-B SK V500 circuit breaker with FI 4p 160A 09184774 always at the best possible price. We can give you a discount of 2% on
Doepke DFL8 160-4/0.03-B SK V500 circuit breaker with FI 4p 160A 09184774 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 2 pieces of Doepke DFL8 160-4/0.03-B SK V500 circuit breaker with FI 4p 160A 09184774 we can offer you a price of 3.725,36 EUR per piece. The more you buy, the cheaper the article will be.
You can also send us a price proposal for your desired quantity of Doepke DFL8 160-4/0.03-B SK V500 circuit breaker with FI 4p 160A 09184774 via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
