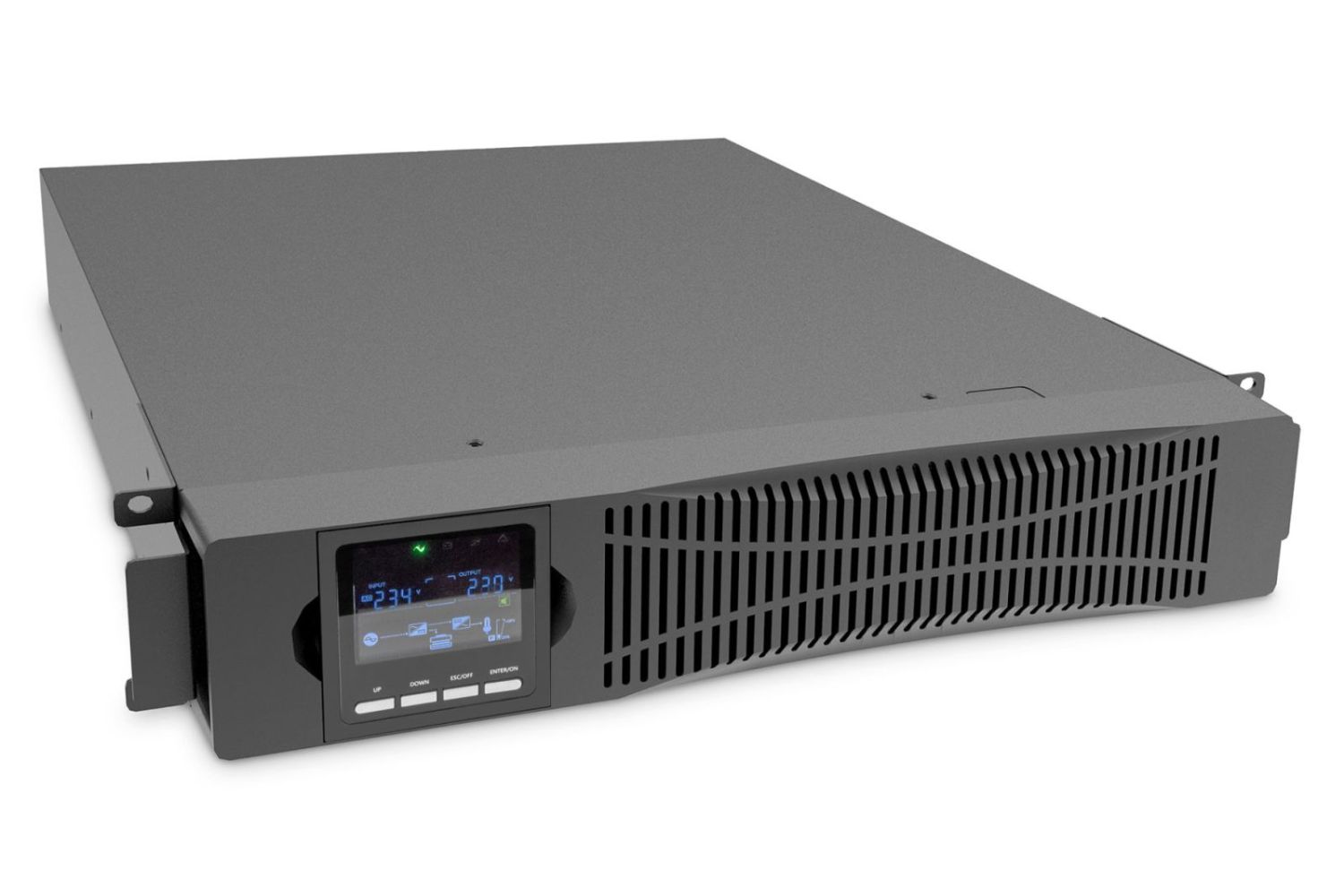

DIGITUS DN-170096 USV 3000 VA 2 U 48,3 cm ( 19 inch ) 3000 W Online content_copy

The DIGITUS OnLine UPS is a double conversion UPS solution that offers premium power outage protection and continuous power generation in a compact and flexible system. The single-phase UPS operates with high energy efficiency and is ideal for protecting critical infrastructure in both centralized and edge network applications. Scalable runtime options with matching external battery cabinets provide additional flexibility when extended uninterrupted power is required. The user-friendly LCD display and network management capability, including configuration, make this system easy to install and maintain. With market-leading efficiency and consistent power factor, the UPS meets your critical application needs.

Highlights

• OnLine UPS module, 3000 VA/3000 W
• Ideal backup solution for your demanding power requirements
• High power factor (1.0) - a higher active power enables more connected loads, this saves space and reduces costs
• High efficiency online -Mode
• User-friendly LCD screen provides insight into UPS status for easy installation, configuration and operation

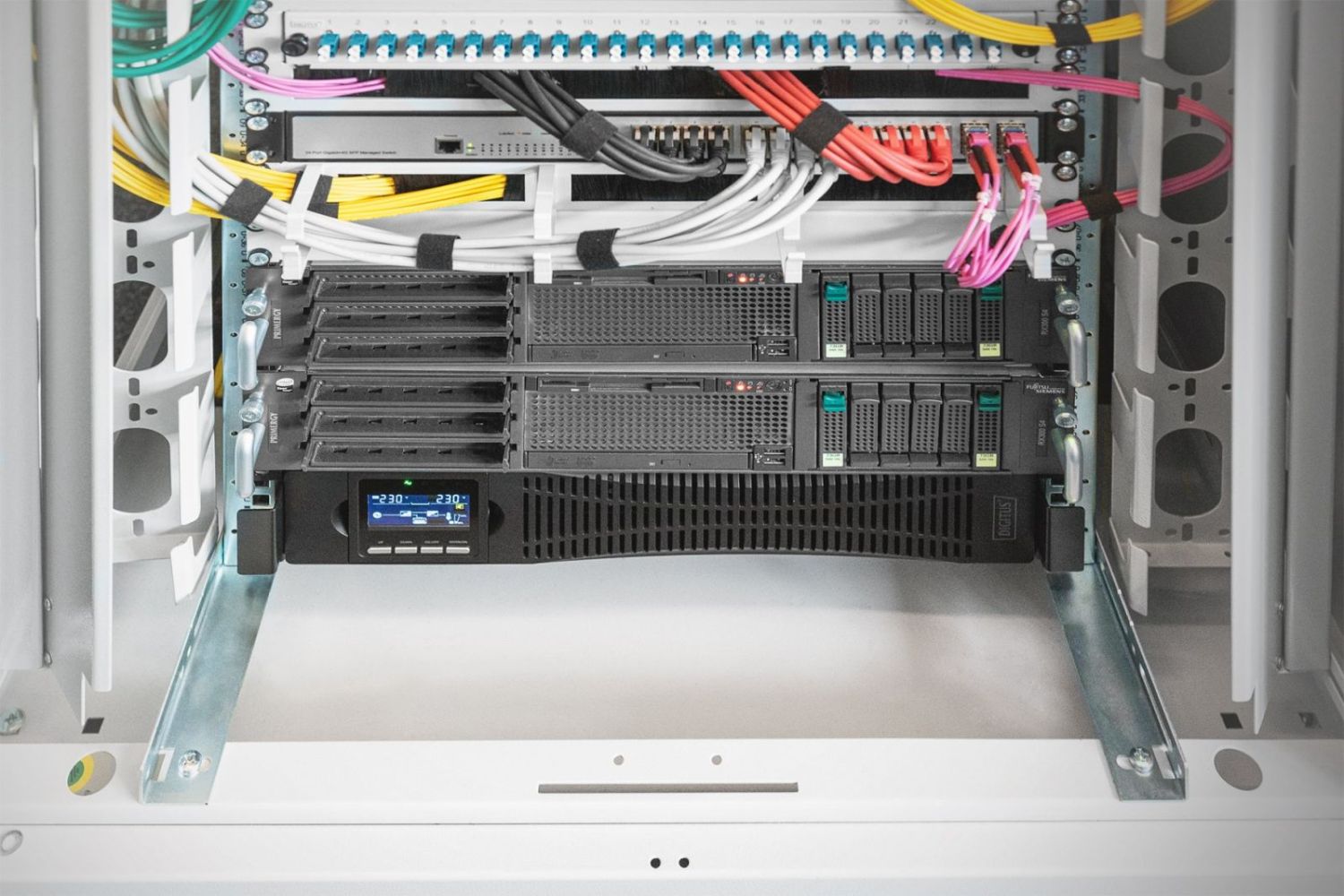

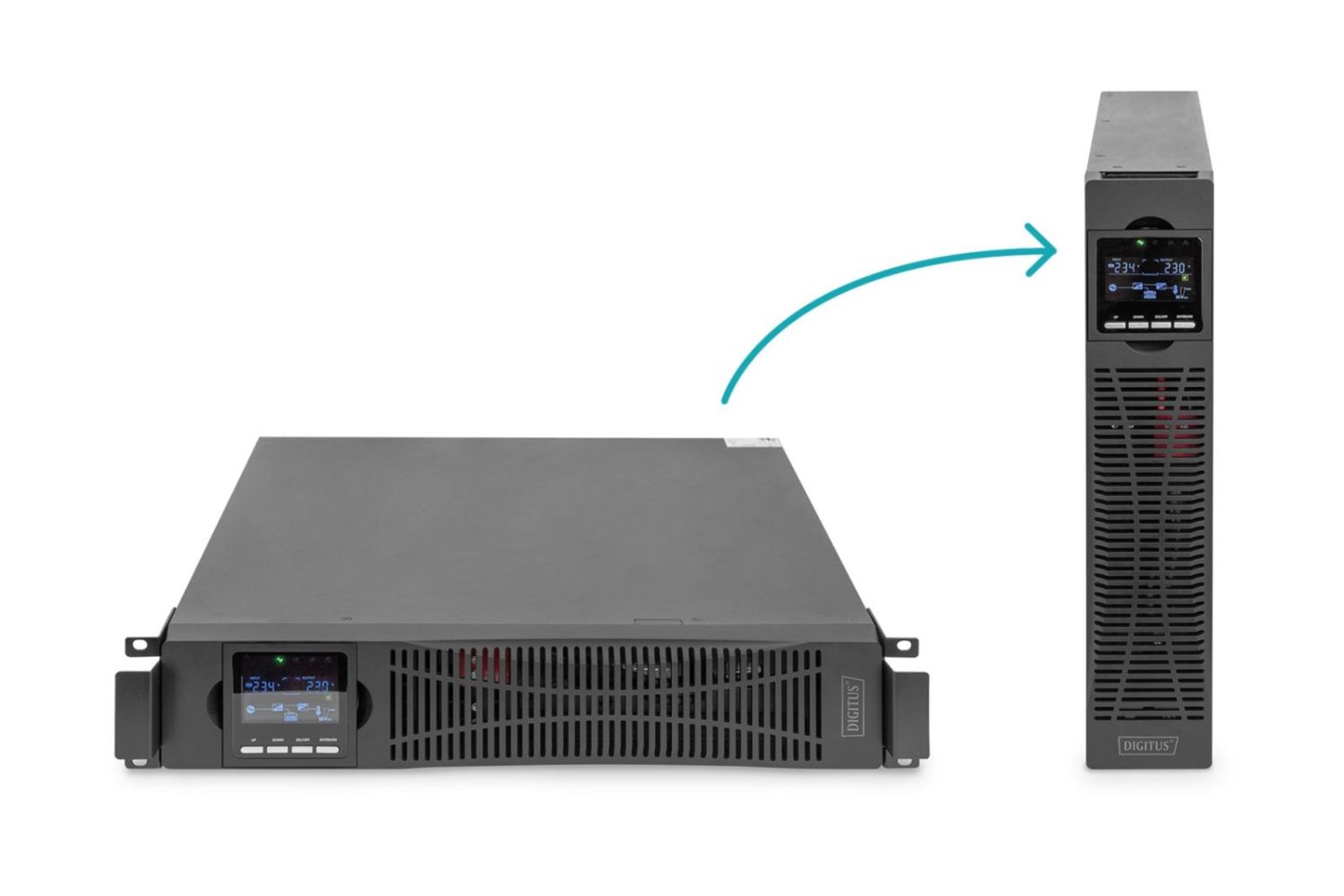

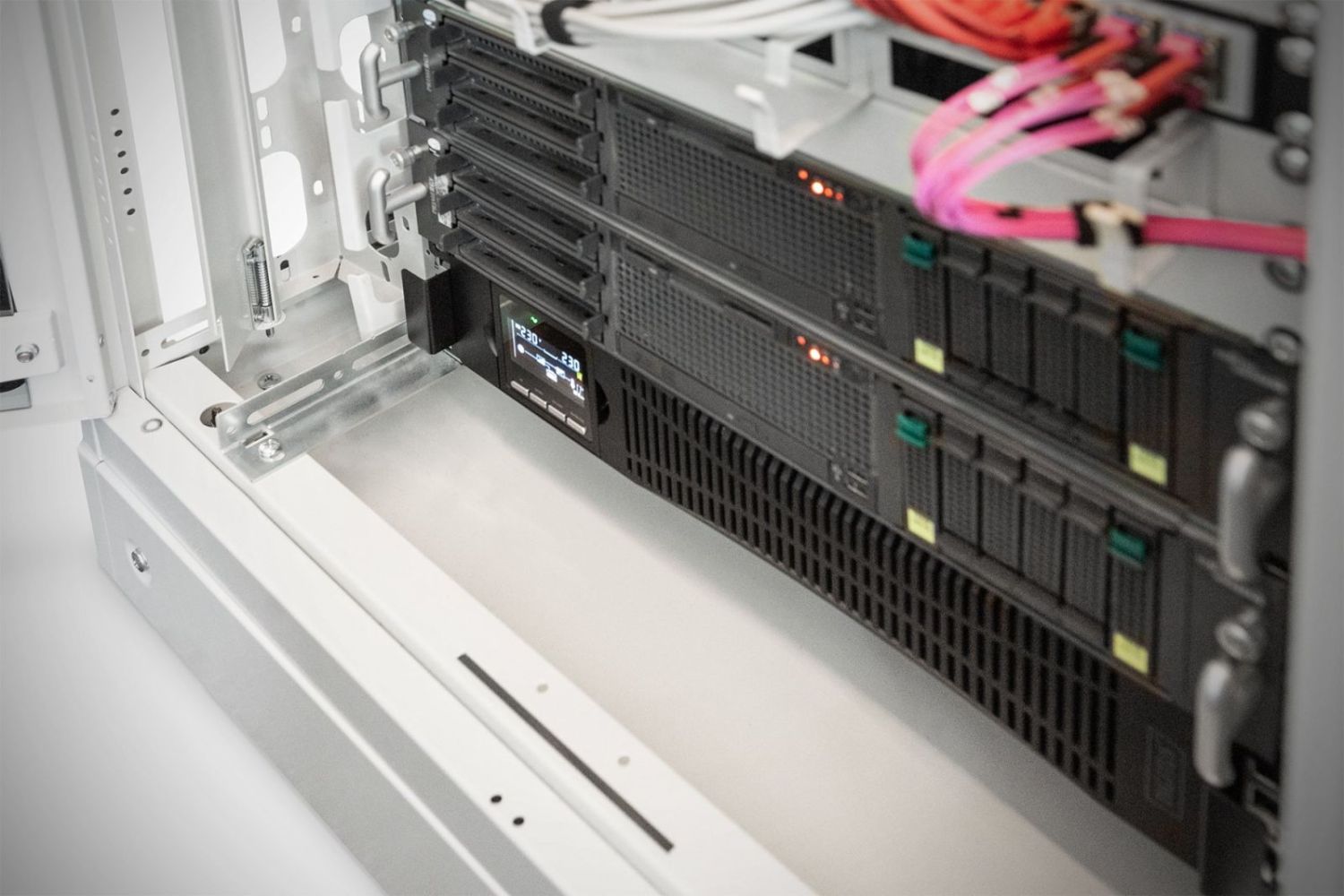

• Compact rack/tower design optimizes rack space and allows for flexible installation
• Minimal device downtime with hot-swappable, Battery modules that can be replaced by the user
• External battery modules enable an extension of the running time
• High number of outputs (8 x C13 < 1 x C19) for optimal power distribution to the consumers
• Various communication interfaces (RS232/USB, parallel port, SNMP slot) enable remote monitoring of the system
• Automatic self-test of the battery and fan speed control increase the service life of the components
• The REPO function (Remote Emergency Power Off) switches off the UPS in emergencies. When an emergency occurs, the REPO switch turns off the rectifier and inverter and immediately stops powering the load. The UPS stops charging

Product type

• UPS
• ear category (ElektroG): relevant, Category 5: Small devices < 50 cm (all sides), small devices B2C

Specifications

• Protection function: discharge, overcharging, overload
• Design: rack mounting, tower
• UPS topology: online
• efficiency: 93%
• typical backup time at full load: 3 min
• typical backup time at half load: 9 min
• rack capacity: 2 U
• acoustic signals
• hot-swappable

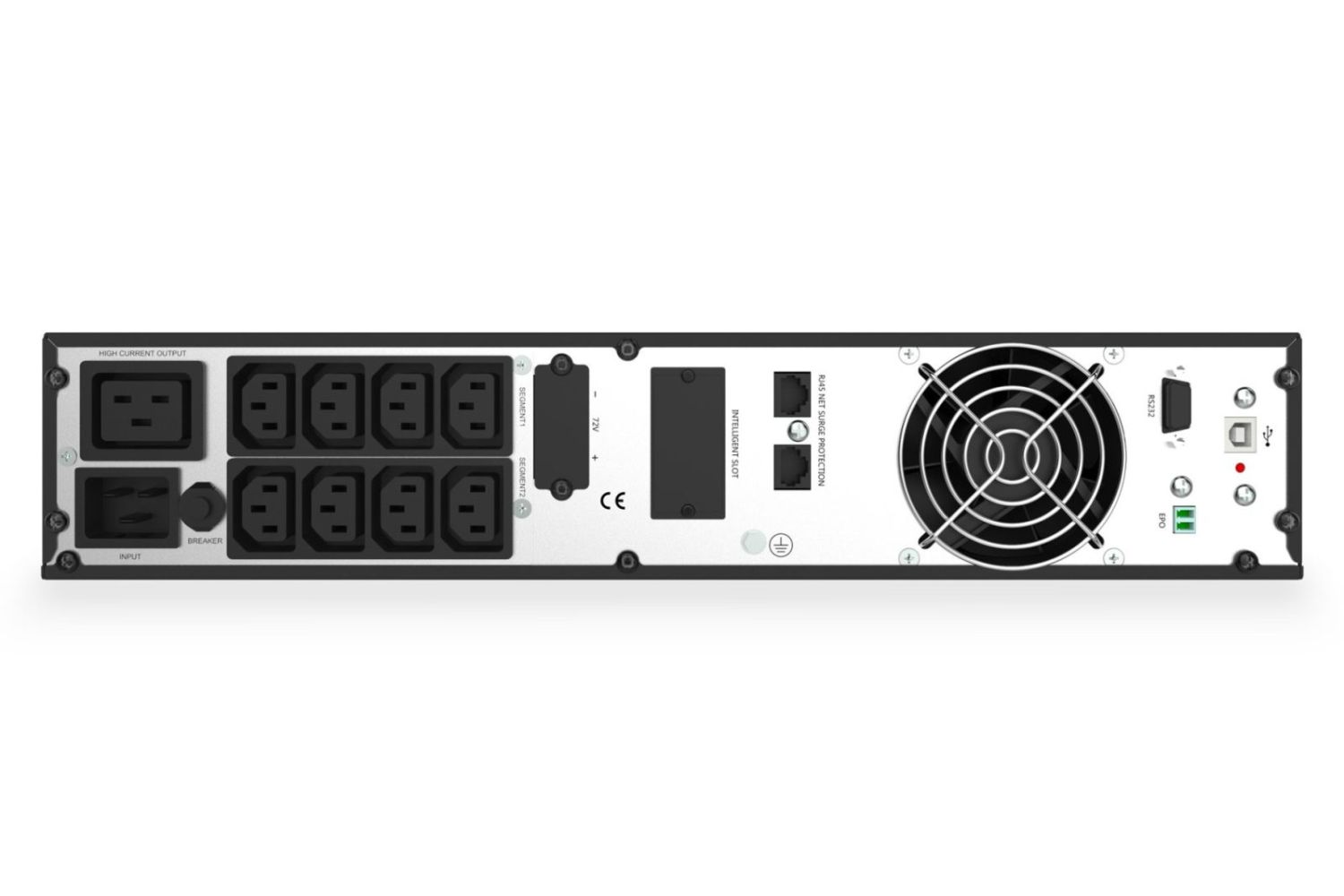

Connections

• Data interfaces: RS-232, USB, SNMP, RJ45
• Number of C13: 8
• Number of C19: 1
• Number of C20: 1

Display

• Display technology: LCD
• Display > Power supply
• Battery capacity: 9000 mAh
• Output capacity: 3000 VA
• Number of supported batteries: 6
• Battery voltage: 12 V
• Power output: 3000 W

Operating conditions

• Ambient temperature operation min: 0 °C
• Ambient temperature operation max: 40 °C
• Humidity operation min: 0%
• Humidity operation max: 90%

Basic properties

• Color: Black
• Height: 86.5 mm
• Length/Depth: 600 mm
• Width: 440 mm
• Weight: 26 kg

Scope of delivery

• OnLine UPS system, 3000 VA / 3000 W
• UPS user manual
• UPS quick start guide
• USB cable
• Input power cable 1.80 m (Schuko plug CEE 7/7 - IEC 60320 C19)
• Output power cable 1.50 m (IEC60320 C13 - Sheet E)
• IEC 60320 Sheet I (16A) plug
