DEHN 999906 DCOR L 2P SN1864 cord L 2P SN1864

Your rating:
Average rating
product review for DEHN 999906 DCOR L 2P SN1864 cord L 2P SN1864
( 5 / 5 ) 1 ratings
DEHN 999906
This image may differ from the desired article.
DEHN 999906DEHN 999906DEHN 999906
90,25 EUR 91,28 EUR
( 107,40 EUR incl. VAT )
≈ £75.54  |  ≈ $99.18
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x DEHN 999906 DCOR L 2P SN1864 cord L 2P SN1864
Datasheet:file_download Download
Lieske Part No.:1903689
Mfg Part No: 999906
UPC/EAN: 4013364310926
Weight:0.054 kg
Type:DCOR L 2P SN1864
Graduated prices net
From piecesPrice per pieces
684,84 EUR
1279,42 EUR
2474,01 EUR
3668,59 EUR

Product information for DEHN 999906:

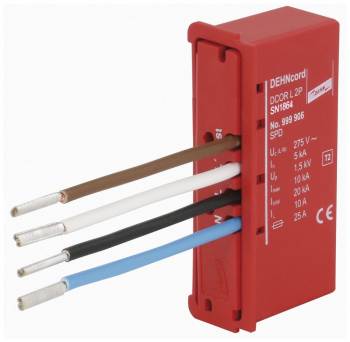

Two-pole surge arrester DEHNcord L, type 2 according to EN 61643-11, in a compact design for use in cable junction boxes of LED mast lights with shutdown of the load circuit in the event of a fault and protection of the control phase. For use in the lightning protection zone concept at the interfaces 0B - 1 and higher.

Technical data
SPD according to EN 61643-11 / IEC 61643-11Type 2 / Class II
Energy-coordinated protective effect to end device (≤ 10 m)Type 2 + Type 3
Nominal voltage AC (UN)230 V (50 / 60 Hz)
Maximum continuous operating voltage AC [L-N] (UC)275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (In)5 kA
Maximum discharge current (8/20 µs) (Imax)10 kA
Protection level [L-N] (UP)≤ 1,5 kV
Protection level [L-N] at 3 kA (UP)≤ 1 kV
Protection level [L-N] at 1.5 kA (UP)≤ 0,85 kV
Response time [L-N] (tA)≤ 25 ns
Maximum load current AC (IL)10 A
Max. mains-side overcurrent protectionB 16 A
Short-circuit withstand capability with network-side overcurrent protection (ISCCR)1 kAeff
Short-circuit withstand capability with network-side overcurrent protection with 16 A gG (ISCCR)6 kAeff
TOV voltage [L-N] (UT) – characteristic335 V / 5 sec. – withstand, 440 V / 120 min. – safe failure
Fault indicationRed
Number of ports1
Operating temperature range (TU)-40 °C ... +80 °C
Connection stranded wires1.5 mm2, length 60 mm
Housing materialThermoplastic, colour red, UL 94 V-2
Mounting positionindoor, luminaire head / cable transition box for mast mounting
Degree of protection in installed stateIP 20
Additional tests---------------------------------
Total discharge surge current (Isum)20 kA
Interruption of load circuit in fault conditionYes


Product data sheet
Datasheet for DEHN 999906, EAN: 4013364310926
