DEHN 972145 DG SE DC 900 FM Type2 surge arrester guard SE DC 1-pole Uc 900 VDC

Your rating:
Average rating
product review for DEHN 972145 DG SE DC 900 FM Type2 surge arrester guard SE DC 1-pole Uc 900 VDC
( 4 / 5 ) 1 ratings

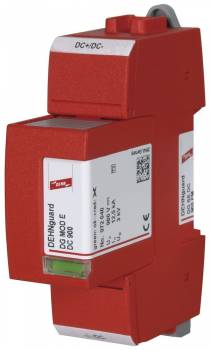

DEHN 972145
This image may differ from the desired article.
DEHN 972145DEHN 972145DEHN 972145
181,35 EUR 183,45 EUR
( 215,81 EUR incl. VAT )
≈ £151.79  |  ≈ $199.30
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x DEHN 972145 DG SE DC 900 FM Type2 surge arrester guard SE DC 1-pole Uc 900 VDC
Datasheet:file_download Download
Lieske Part No.:1884925
Mfg Part No: 972145
UPC/EAN: 4013364158658
Weight:0.194 kg
Type:DG SE DC 900 FM
Graduated prices net
From piecesPrice per pieces
5170,47 EUR
10159,59 EUR
15148,71 EUR
20137,83 EUR

Product information for DEHN 972145:

Single-pole surge arrester DEHNguard SE DC, type 2 according to EN 61643-11, consisting of a base part and a plugged-in protection module. High device safety thanks to the powerful DC switching device DCD, which is specially designed for use in DC circuits. For protecting DC consumer systems against overvoltages. For use in the lightning protection zone concept at the interfaces 0B - 1 and higher.

General
SPD as per IEC 61643-41 / EN IEC 61643-41Type 2
Energy coordination with terminal equipment (≤ 10 m)type 2 + type 3
Nominal voltage (d.c.) (UN)750 V
Max. continuous operating voltage DC (UC)900 V
Nominal discharge current (8/20 µs) (In)12.5 kA
Voltage protection level (UP)≤ 3.0 kV
Response time (tA)≤ 25 ns
Short-circuit withstand capability without backup fuse (d.c.) (ISCCR)100 A
Short-circuit withstand capability for max. mains-side overcurrent protection (d.c.) (ISCCR)5 kA
Max. mains-side overcurrent protection63 A gG
TOV (DC), 1.5x (UT) – characteristics1,238 V / 5 sec. – withstand
TOV (DC), 2x (UT) – characteristics1,650 V / 120 min. – safe failure
Continuous current (DC) (IC)≤ 100 µA
Protective conductor current (DC) (IPE)≤ 100 µA
Protective conductor current (AC) (IPE)< 1 mA
Condition at the end of life time of the SPD AOpen Circuit Mode (OCM)
Overvoltage category (OVC) main circuitlll
Insulation between main and remote circuitDouble insulation
Operating temperature range (TU)-40 °C ... +80 °C
Operating state / fault indicationgreen / red
Number of ports1
Cross-sectional area (min.)1.5 mm2 solid / fine-stranded / 6 mm2 stranded
Cross-sectional area (max.)16 mm2 solid / 35 mm2 stranded / 25 mm2 fine-stranded
For mounting on35 mm DIN rails acc. to EN 60715
Enclosure materialthermoplastic, red, UL 94 V-0
Place of installationindoor installation
Degree of protectionIP20
Capacity1.5 Standard DIN module, DIN 43880
Type of remote signalling contactchangeover contact
Switching capacity (a.c.)250 V / 0.5 A
Switching capacity (d.c.)250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminalsmax. 1.5 mm2 solid / flexible
Extended technical data
Max. prospective short-circuit current (DC) (Ik)25 kA


Product data sheet
Datasheet for DEHN 972145, EAN: 4013364158658

Questions & answers

What is the delivery time of DEHN 972145 DG SE DC 900 FM Type2 surge arrester guard SE DC 1-pole Uc 900 VDC?

The article DEHN 972145 DG SE DC 900 FM Type2 surge arrester guard SE DC 1-pole Uc 900 VDC is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of DEHN 972145 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you DEHN 972145 DG SE DC 900 FM Type2 surge arrester guard SE DC 1-pole Uc 900 VDC always at the best possible price. We can give you a discount of 2% on DEHN 972145 DG SE DC 900 FM Type2 surge arrester guard SE DC 1-pole Uc 900 VDC if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of DEHN 972145 DG SE DC 900 FM Type2 surge arrester guard SE DC 1-pole Uc 900 VDC we can offer you a price of 170,47 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
